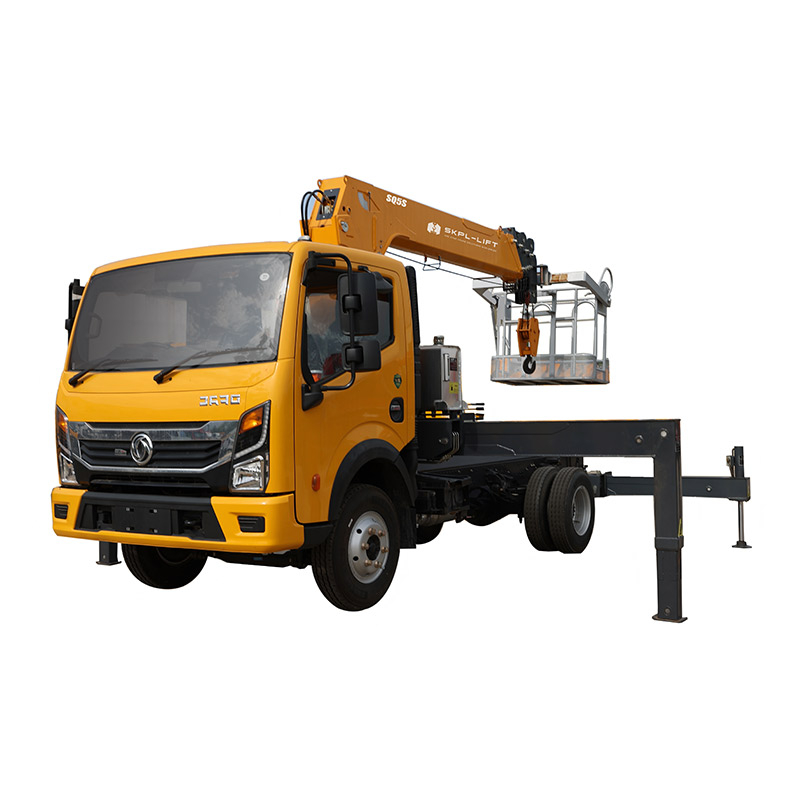

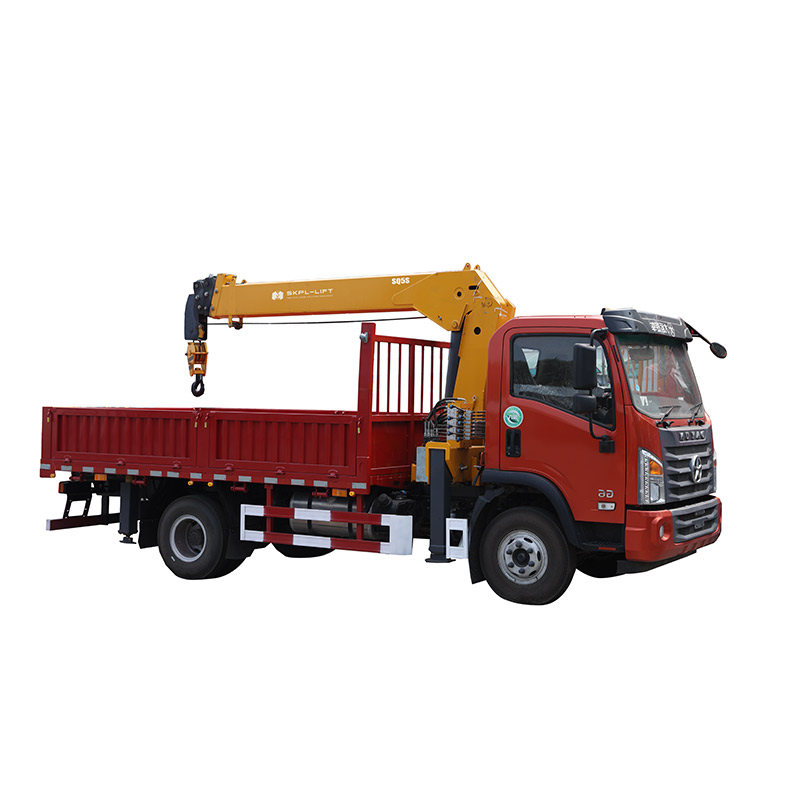

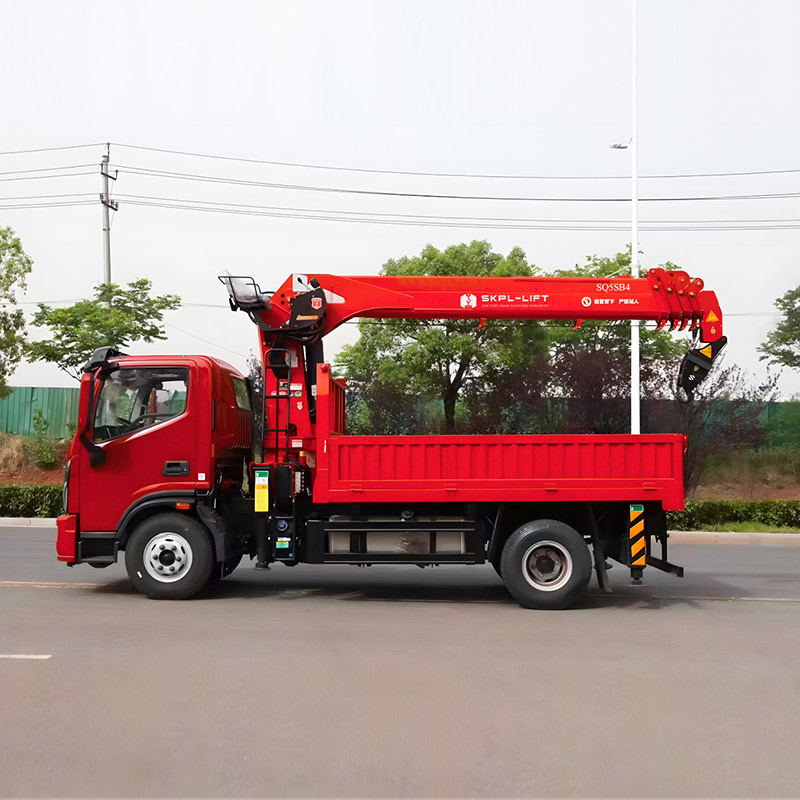

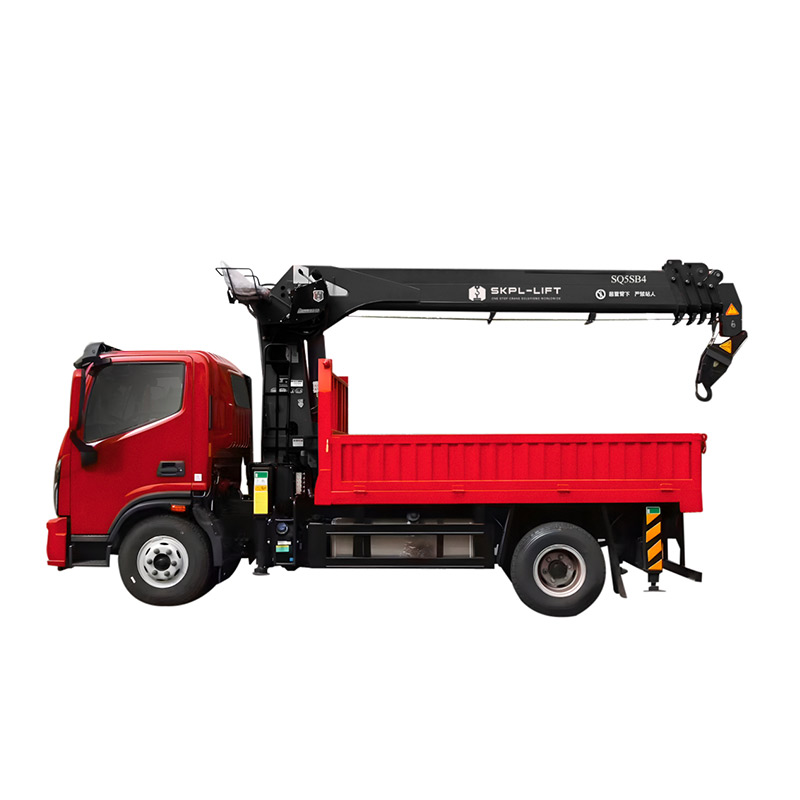

5 Ton Telescopic Boom Truck Mounted Crane

Overview

The boom is made of Q690 high-strength alloy steel in a one-piece design, offering excellent bending and torsion resistance and even load distribution. At its 5-ton rated capacity, the crane operates smoothly and continuously, providing strong durability for projects that demand stability and consistent operation, such as large-scale infrastructure and heavy logistics.

With a clear structure and minimal maintenance points, the hydraulic system is highly responsive. This model can be mounted on medium to large commercial truck chassis and is widely used in heavy building material handling, municipal works, and port logistics. It is an excellent choice for applications that require a balance of performance, reliability, and cost-efficiency under demanding conditions.

Product Advantage

Significant energy efficiency for heavy loads
The straight boom heavy-duty structure reduces the number of hydraulic cylinders and circuits. Under the same 5-ton working load, hydraulic oil consumption drops by 20–25%, effectively lowering fuel costs and system heat loss, while enhancing continuous operation durability.

Superior lifting efficiency
With a short and direct power transmission path and uniform load distribution along the boom, lifting and telescoping actions respond 30% faster within the 5-ton rated load. Movements are smoother, and single-lift cycles are 15–20% shorter, greatly improving overall efficiency for large-scale operations.

Exceptional structural rigidity and stability
The boom is made of Q690 high-strength alloy steel with an integrated design and no redundant hinges. Its bending and torsion resistance far exceed traditional multi-hinge structures, minimizing sway during 5-ton lifts and complex operations, significantly increasing operational safety.

High reliability in heavy-duty conditions
The simplified structure reduces moving parts by 30%, and the hydraulic system uses heavy-duty precision components for accurate control. This ensures stable performance under long-term, high-frequency heavy-duty use, with unplanned downtime reduced by over 40%.

Lower maintenance and lifecycle costs
Key maintenance points are centralized, and inspection space is ample. Routine servicing requires no disassembly of major components, reducing labor by 30%. Standardized parts lower spare part costs, significantly increasing the crane’s overall lifecycle value.

Strong adaptability and versatile applications
The crane can be flexibly mounted on various medium-to-large commercial truck chassis. Custom modifications allow operation across heavy construction, municipal projects, port logistics, mining, and large equipment installation, offering excellent versatility and expandability.

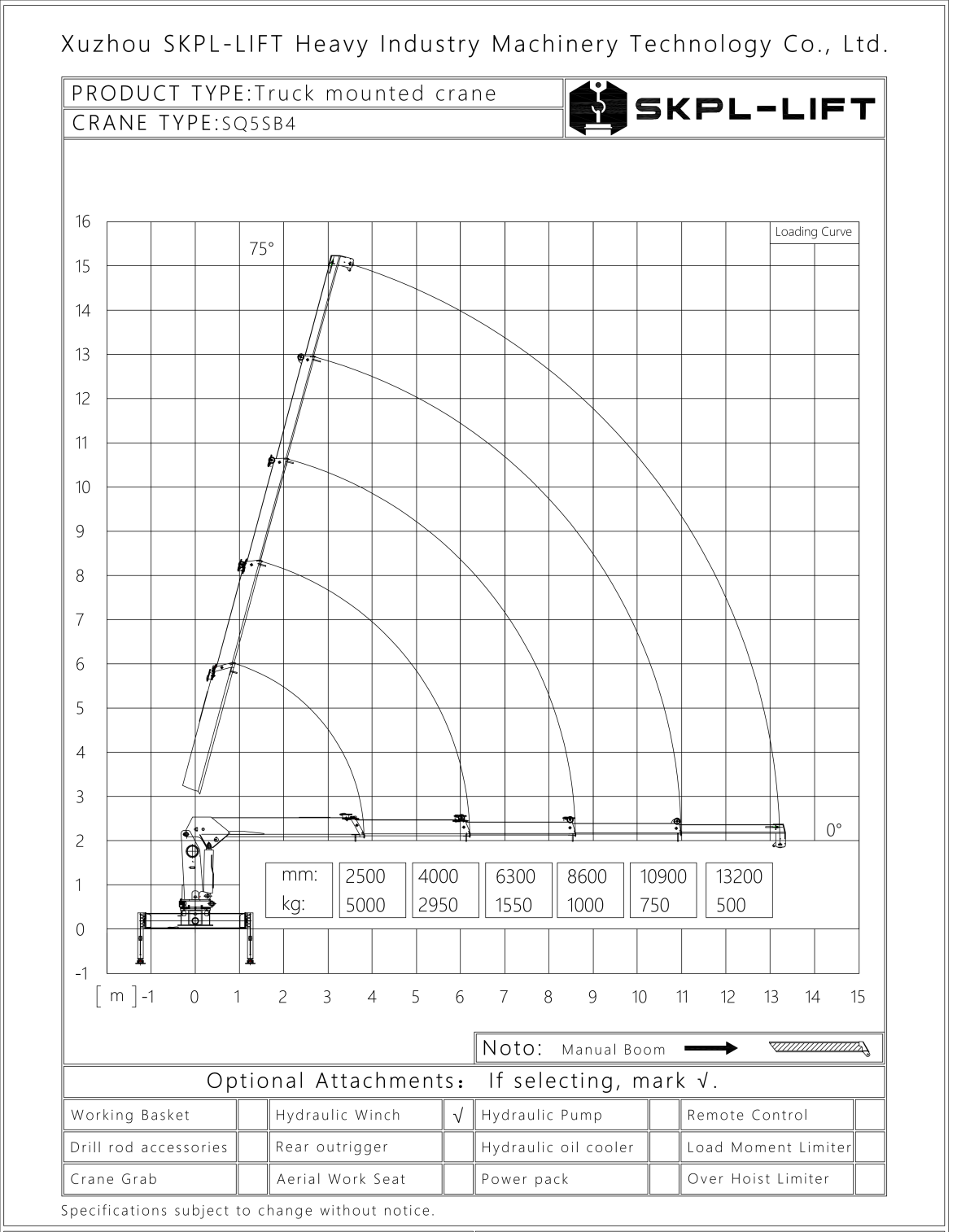

Technical Parameters

Application Scenarios of SKPL-LIFT 5 Ton Telescopic Boom Truck Crane

Construction & Municipal Projects
Handles heavy materials, prefabricated components, and steel structures with stable, precise operation—ideal for large construction and infrastructure sites.

Industrial & Factory Use
Efficiently lifts and moves heavy machinery and bulk materials in factories, with smooth telescopic action and strong load capacity.

Ports & Logistics
Quickly loads and unloads heavy cargo and containers, improving transport efficiency in ports and logistics centers.

Mining & Remote Projects
Supports heavy equipment and materials in mines, rural areas, and remote sites with reliable stability on uneven terrain.

FAQ

1. Export certifications?

CE certified, with custom clearance documents available.

2. What are your payment terms?

We support 30% deposit via T/T (telegraphic transfer), MIC platform payment, and L/C (sight letter of credit). For customers with long-term cooperation experience, we offer more favorable delivery policies.

3. MOQ & after-sales?

MOQ 1 unit; provides online tech support and spare parts supply.

4. How long do you provide after-sales support?

We provide lifelong online technical support, a 1-year product warranty, and paid extended warranty options.

5. How many years has your factory been in this industry?

We have 18 years of experience in design, manufacturing, and domestic and international trade, with our products exported to over 100 countries and regions, earning consistent praise from customers.
