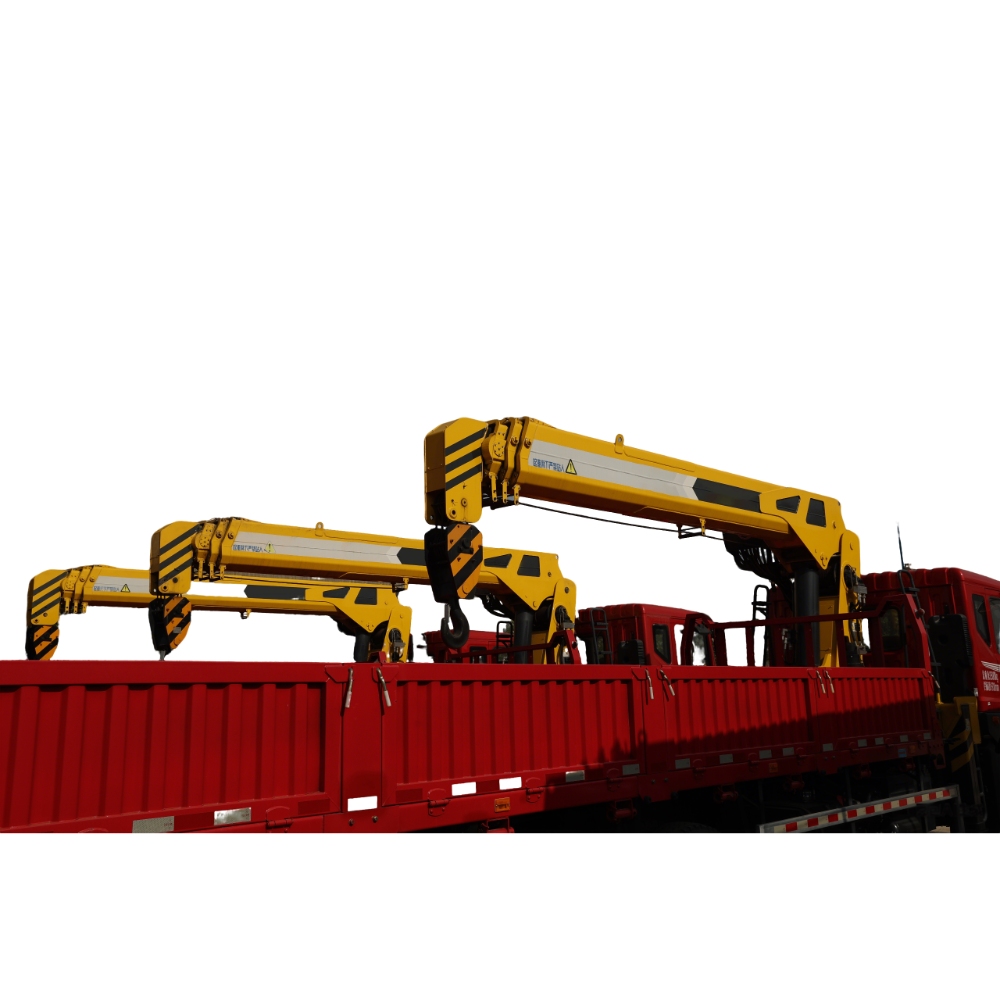

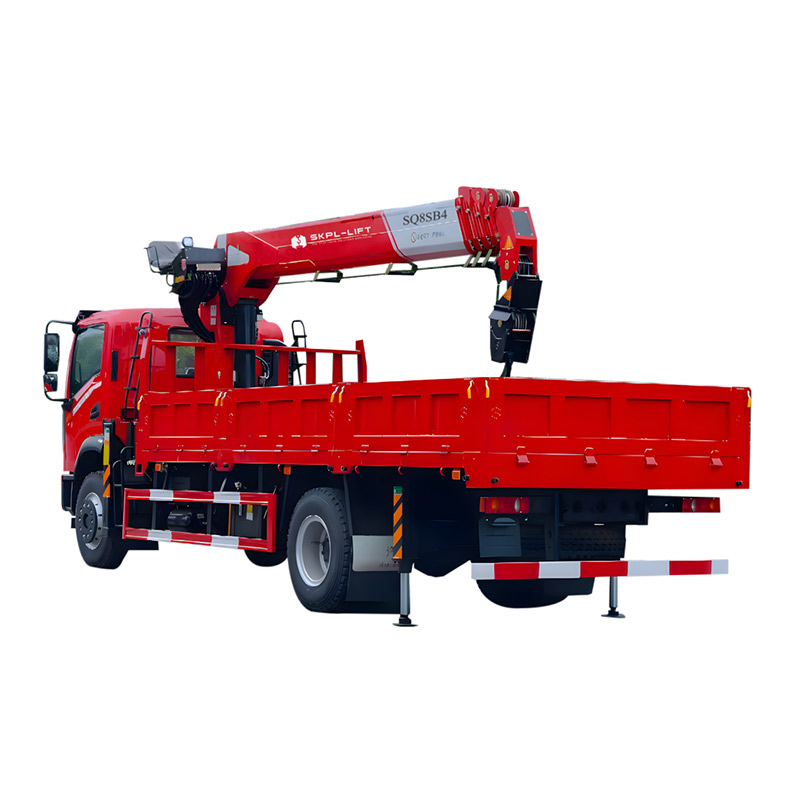

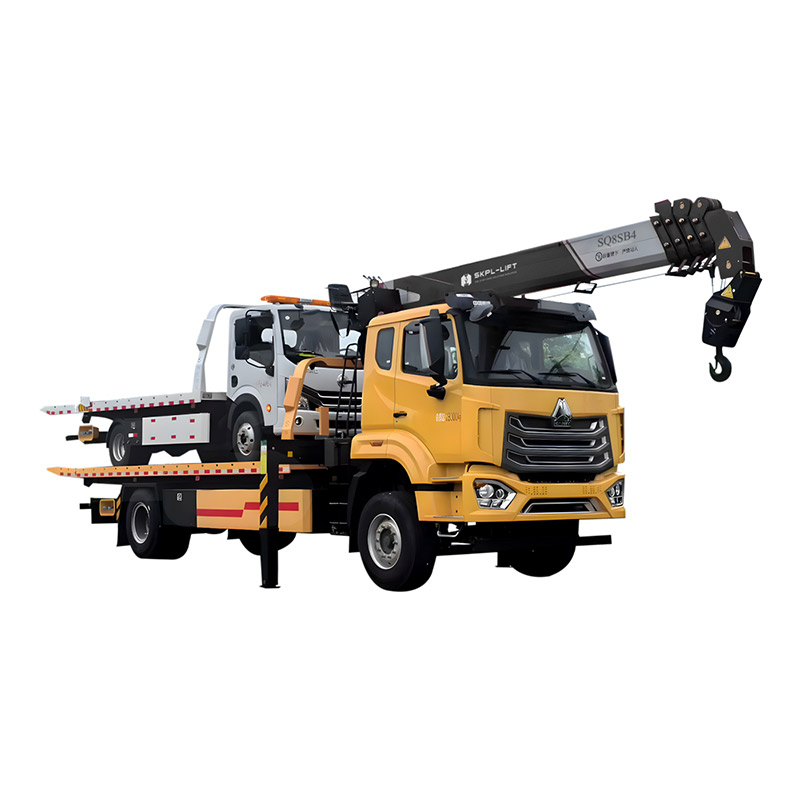

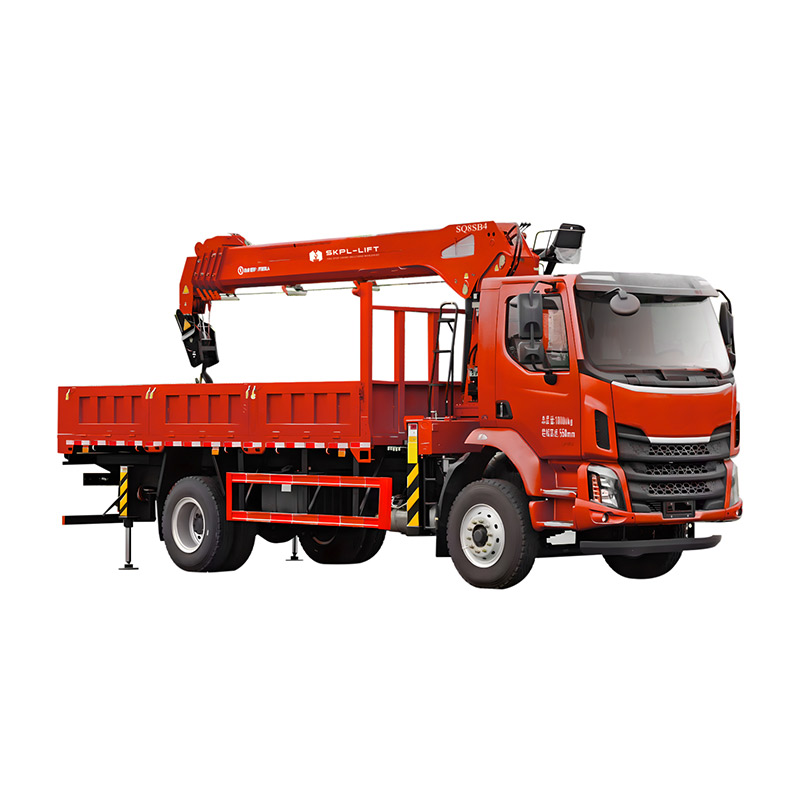

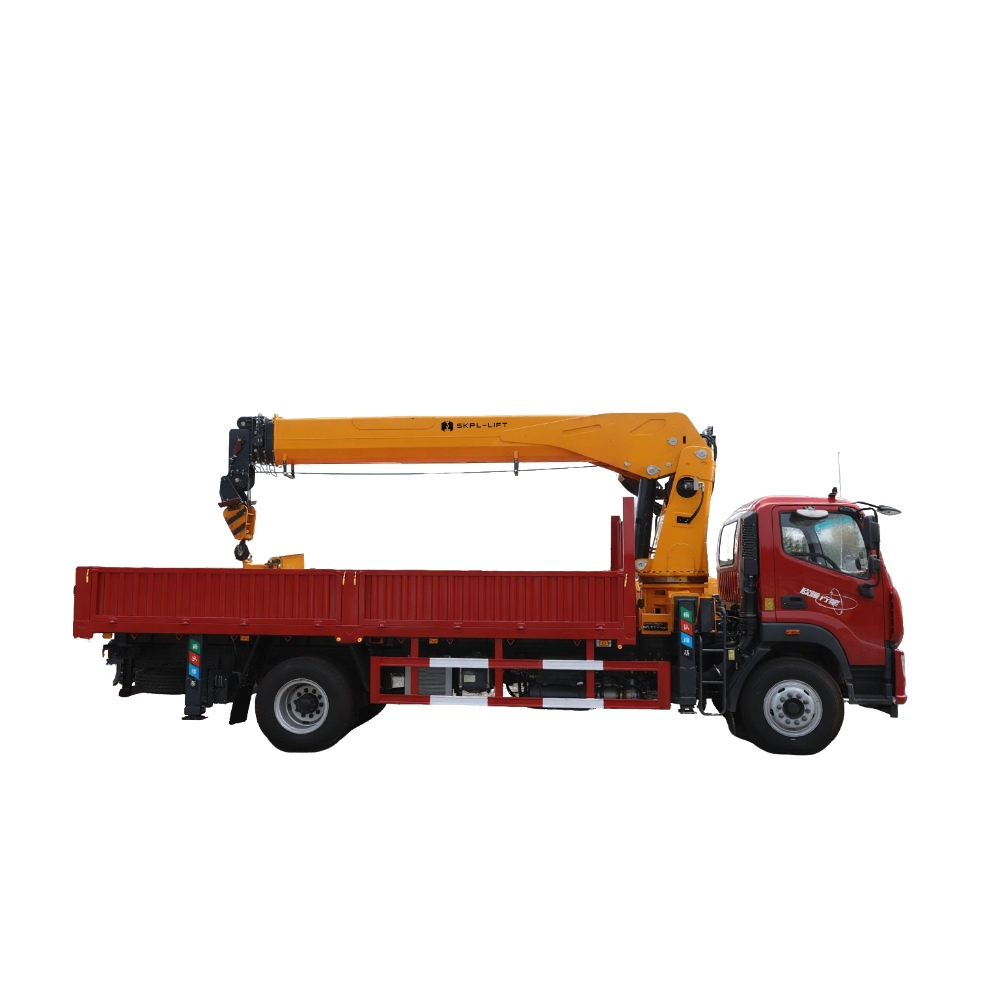

The SKPL-LIFT 8 Ton Telescopic Boom Truck Mounted Crane delivers strong lifting capacity with a long-reach telescopic boom, ensuring excellent performance for medium to heavy lifting tasks. Equipped with heavy-duty outriggers, precision hydraulics, and a robust slewing system, it offers safe, efficient, and reliable operation for construction, steel handling, container loading, and industrial projects.
| Quantity: | |
|---|---|
SQ8S
SKPL-LIFT
The SKPL-LIFT 8 Ton Telescopic Boom Truck Mounted Crane is a high-performance lifting solution designed for medium to heavy-duty tasks in construction, logistics, and industrial settings. Featuring a 20-meter extended telescopic boom and 8,000 kg maximum lifting capacity, this crane combines long-reach capability with robust performance. Crafted from high-tensile steel, it ensures durability and resistance to bending under full load, while its easy truck installation design allows flexible deployment across diverse job sites without major structural modifications.

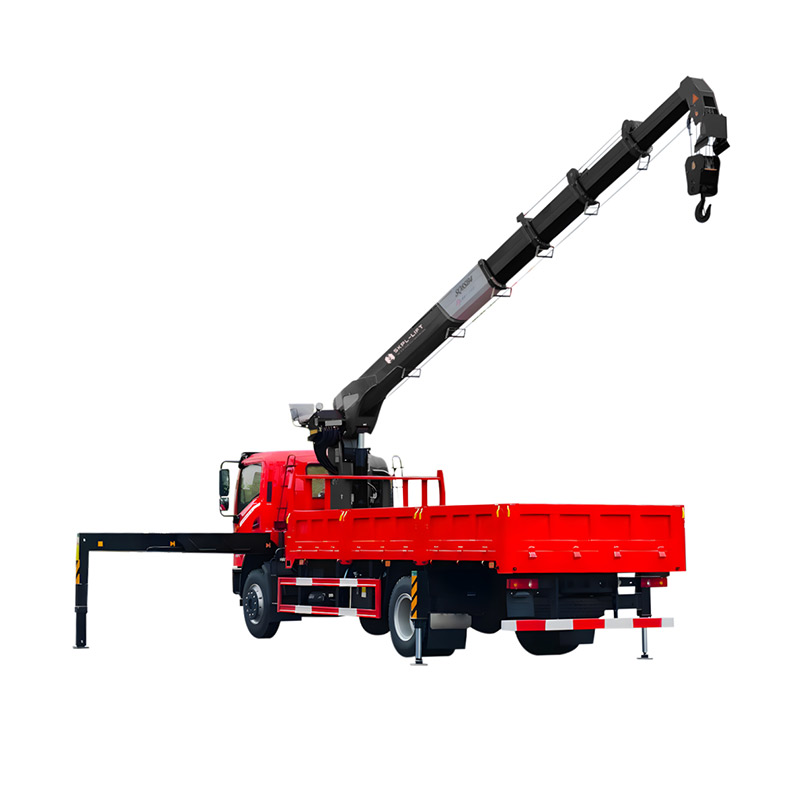

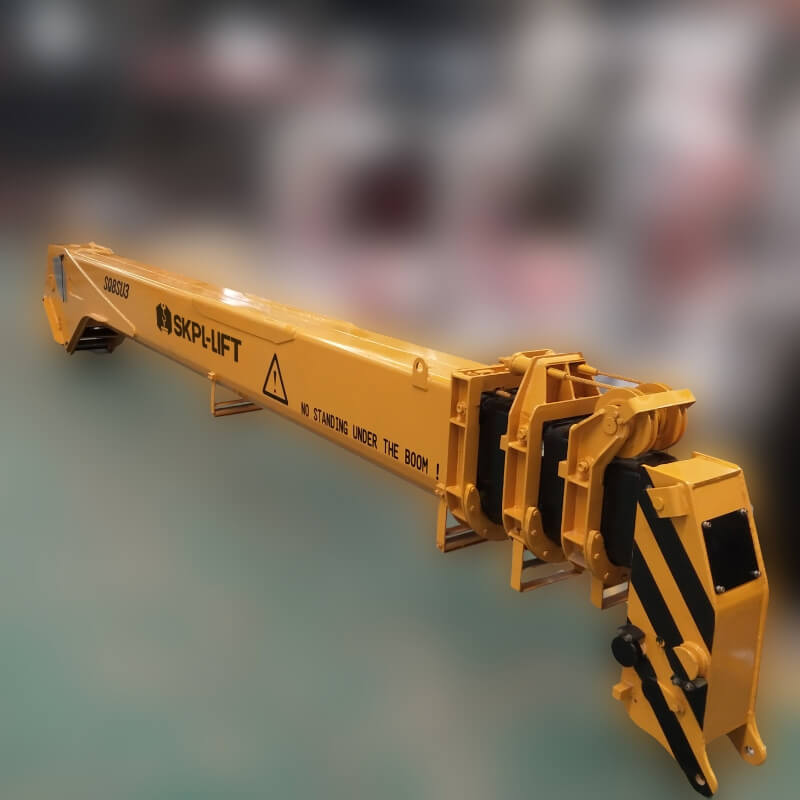

The 8 Ton Telescopic Boom Truck Mounted Crane boasts a 20-meter multi-section telescopic boom, providing superior distance coverage for lifting tasks in large open sites or hard-to-reach areas. This eliminates the need for additional lifting equipment, enhancing operational efficiency.

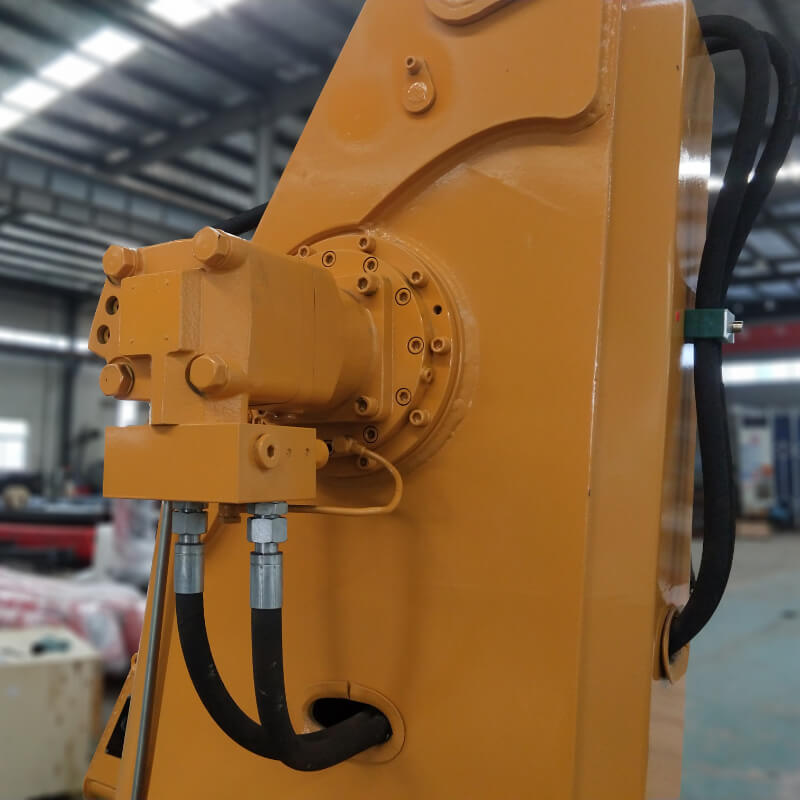

Equipped with four hydraulic outriggers and a high-capacity winch, the crane maintains stability on uneven terrain. The outriggers deliver strong ground support, while the winch ensures smooth and precise handling of bulky items, reducing load sway and operational risks.
Integrating a robust hydraulic system and reinforced structural components, the 8 Ton Telescopic Boom Truck Mounted Crane minimizes maintenance costs and downtime. Its high-tensile steel boom and reinforced frame ensure long-term reliability, making it a cost-efficient choice for continuous operations.

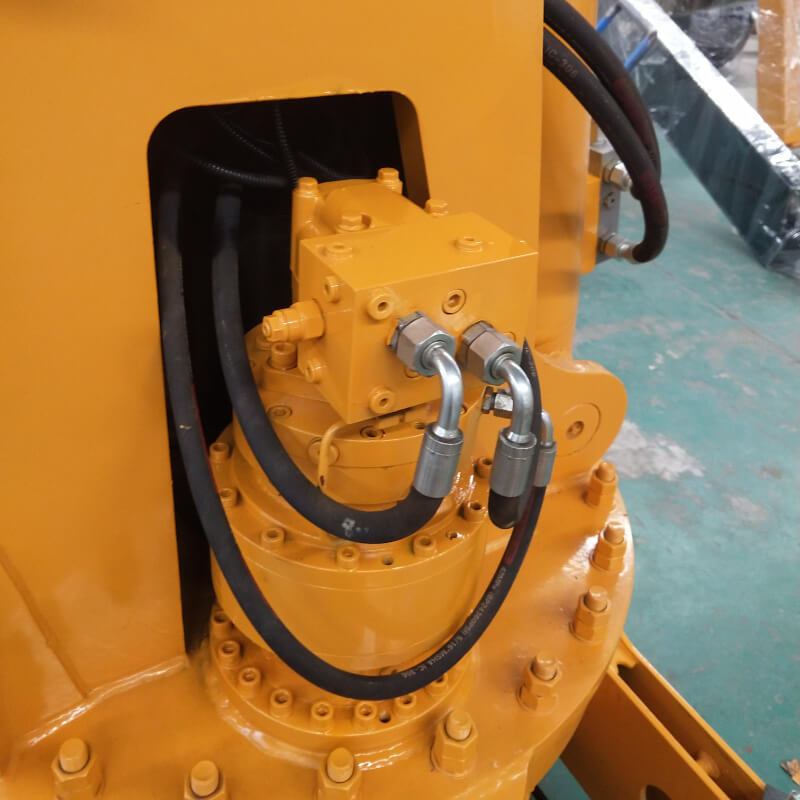

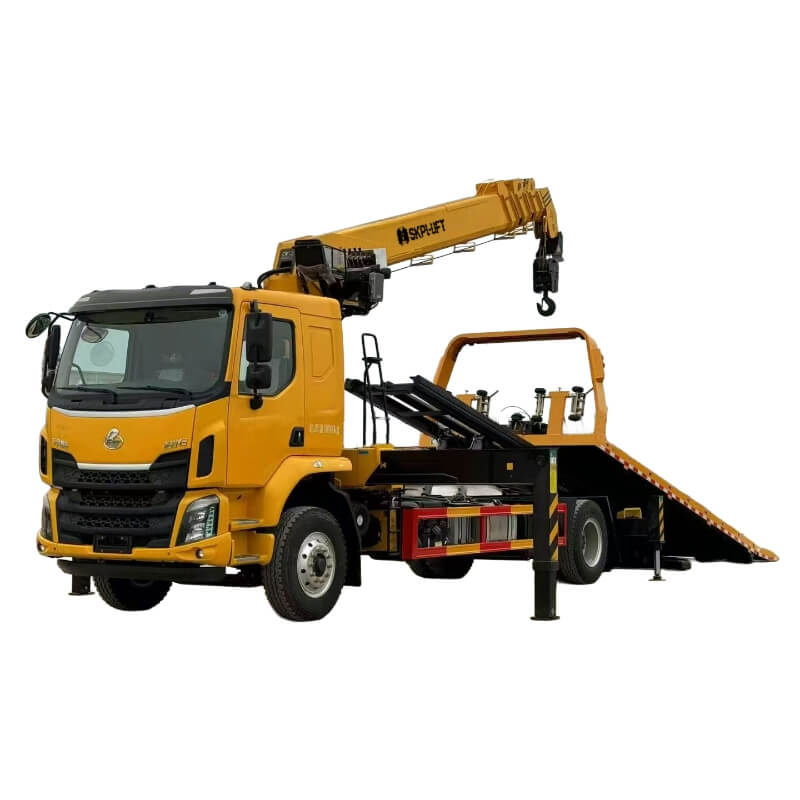

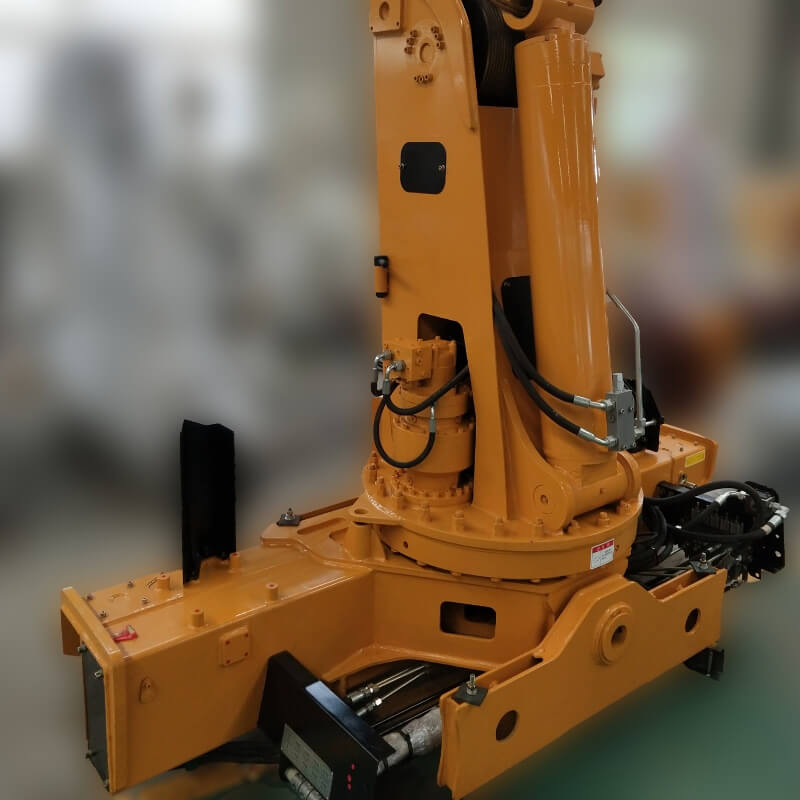

With a 360° slewing angle, the crane offers flexible load positioning in confined or complex workspaces. Its truck-mounted design enables easy mobility across construction sites, ports, and warehouses, adapting to diverse lifting requirements.

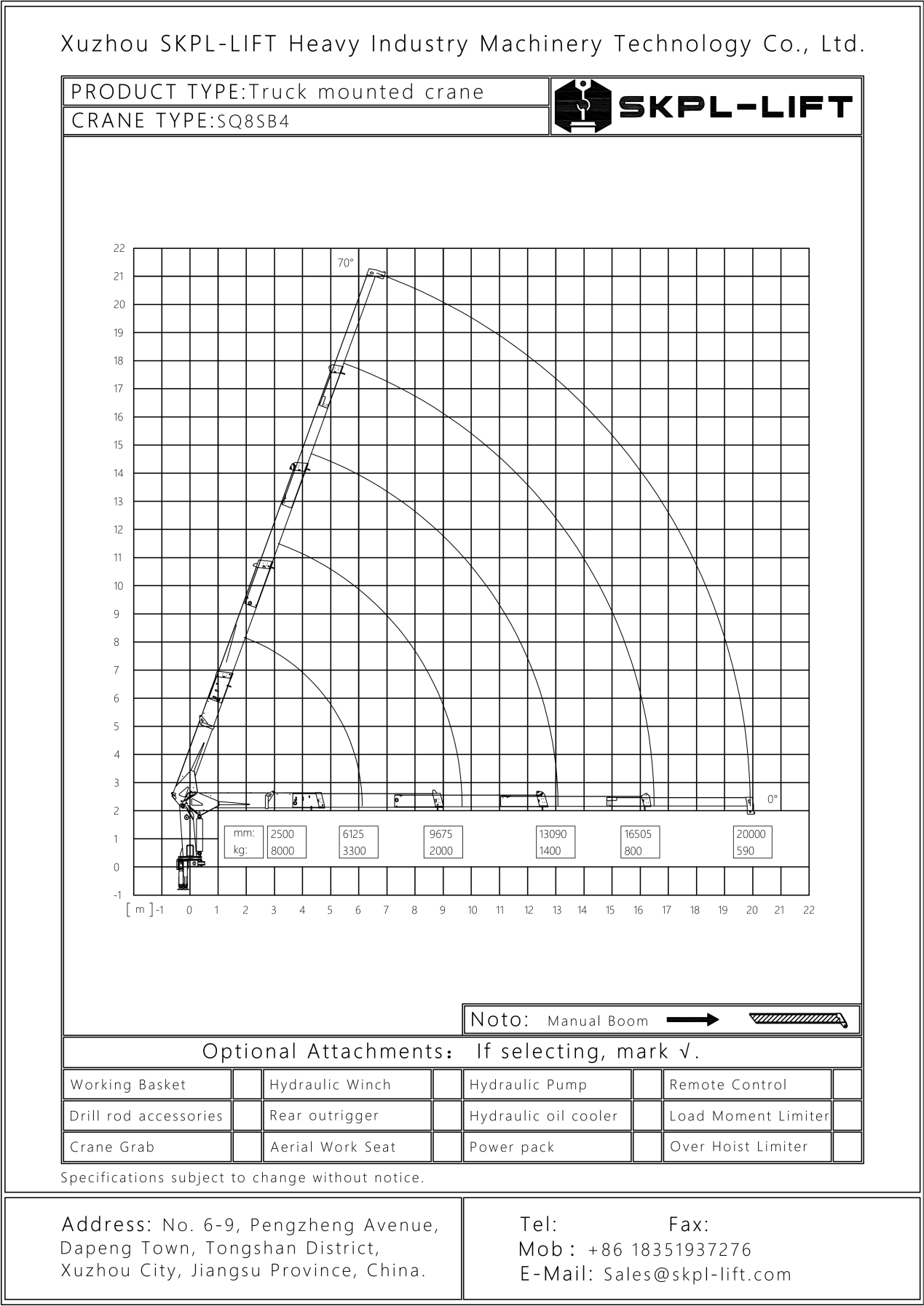

Technical Parameter | |
Installation space | 1200 mm |

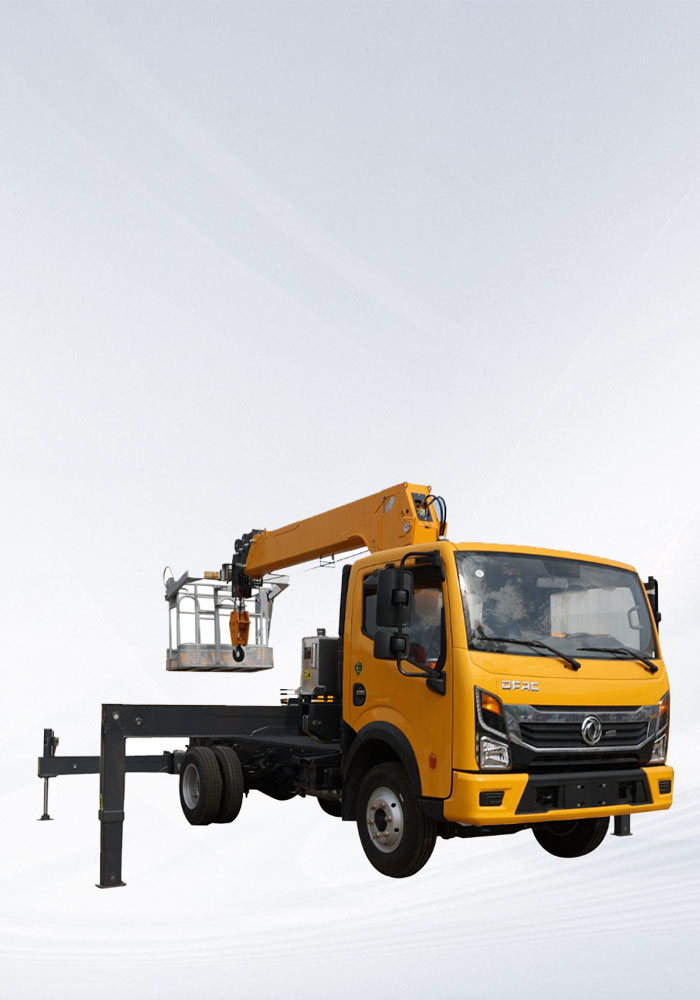

Model name | SQ8SB3 |
Max.Lifting Capacity | 8000 Kg |
Max.Lifting Moment | 20 Ton.m |
Hydraulic System Pressure | 24 Mpa |
Hydraulic System Flow | 60 L /min |
Slewing Angle | 360 FR |
Reconmmend Power | 25 Kw |
Oil Tank Capacity | 160 L |
Crane Self Weight | 4400 Kg |
Ideal for hoisting steel beams, concrete blocks, and heavy machinery at construction sites and industrial facilities. The 20-meter boom reaches high elevations, making it suitable for large-scale infrastructure projects and high-rise construction tasks.
Widely applied in logistics hubs, seaports, and large warehouses for container handling and oversized cargo loading/unloading. Reduces reliance on fixed cranes, offering flexible on-site mobility and improving material handling efficiency.
Suitable for lifting farm machinery, irrigation systems, timber, and mining supplies in rural or remote areas. Its truck-mounted design ensures access to off-road terrains, simplifying heavy-load management for agricultural and resource industries.
Valuable for energy, telecom, and mining sectors, handling pipelines, transformers, and heavy service equipment. The long-reach boom and precise controls enable safe and efficient maintenance and installation tasks in challenging environments.
We are an integrated factory and trading company, providing one-stop procurement, technical support, and after-sales service. Customers are welcome to visit our manufacturing facility to inspect production processes.
We accept 30% deposit via T/T, MIC platform payment, and L/C (sight letter of credit). Long-term cooperation customers enjoy preferential delivery and payment conditions.
Standard 8 Ton Telescopic Boom Truck Mounted Crane are in stock and delivered within 15 working days after deposit receipt. Customized orders require 30 working days or more, depending on specific modifications.
We offer lifelong online technical support, a 1-year product warranty, and paid extended warranty options to ensure optimal performance and minimal operational disruption.
