Procuring lifting equipment for heavy-duty applications is a high-stakes capital investment. Mismatching crane specs to project realities results in operational bottlenecks, critical safety hazards, and accelerated equipment wear. You cannot afford downtime when managing complex loads on demanding job sites. Equipment failures compromise your schedule and endanger your crew.
This guide strips away marketing claims to provide an engineering-first framework for evaluating lift parameters. We will help you compare boom architectures, match chassis requirements, and shortlist potential manufacturing partners. You will learn how to bypass superficial metrics. We focus instead on working radius, payload limitations, and true integration risks. By following these technical steps, you can confidently specify equipment tailored exactly to your operational environment.
Maximum lifting capacity is a theoretical peak; your actual working radius and load charts dictate practical sizing.
The choice between knuckle and telescopic booms depends entirely on your need for spatial articulation versus sheer vertical reach.
A crane is only as stable as its truck; rigorous chassis matching (GVWR and axle ratings) is non-negotiable.
Partnering with an established truck mounted crane manufacturer ensures compliance, lifecycle support, and precise vehicle integration.
Every successful equipment procurement begins with rigorous field data. You must gather precise operational metrics before reviewing any product catalogs. Guesses lead to underpowered equipment or over-engineered liabilities.
You must establish three critical engineering values. First, calculate the maximum weight of your heaviest anticipated load. Second, determine the required hook height to clear obstacles. Third, measure the maximum horizontal distance from the crane’s center of rotation to the final load placement. We call this the working radius. The working radius dictates crane sizing far more than raw lifting capacity.
Follow these steps to establish your baseline:
Identify the heaviest single piece of equipment you lift regularly.
Measure the precise distance from the truck's parked position to the drop zone.
Add a 15% safety margin to your weight calculation for unforeseen rigging variations.
Assess your primary working environments carefully. Confined urban environments require compact footprints and highly articulating equipment. Open construction sites permit longer stiff booms and broader outrigger deployment. You must evaluate overhead clearance, swing radius limitations, and traffic interactions. If you operate primarily in narrow alleys, you need entirely different boom geometries than teams working in open industrial yards.
Factor in the physical ground beneath your vehicle. A heavy-duty truck mounted crane requires stable ground conditions and adequate outrigger deployment space. Soft soil, fresh asphalt, or uneven terrain severely limits stabilization. Outrigger pads must distribute downward forces effectively to prevent the truck from tipping under load. Calculate the maximum outrigger reaction force. Then, match it against your typical site ground bearing capacity.
The core geometry of your boom dictates its operational strengths. You must choose between articulating joints and stiff linear extensions. Each architecture serves specific industrial applications.

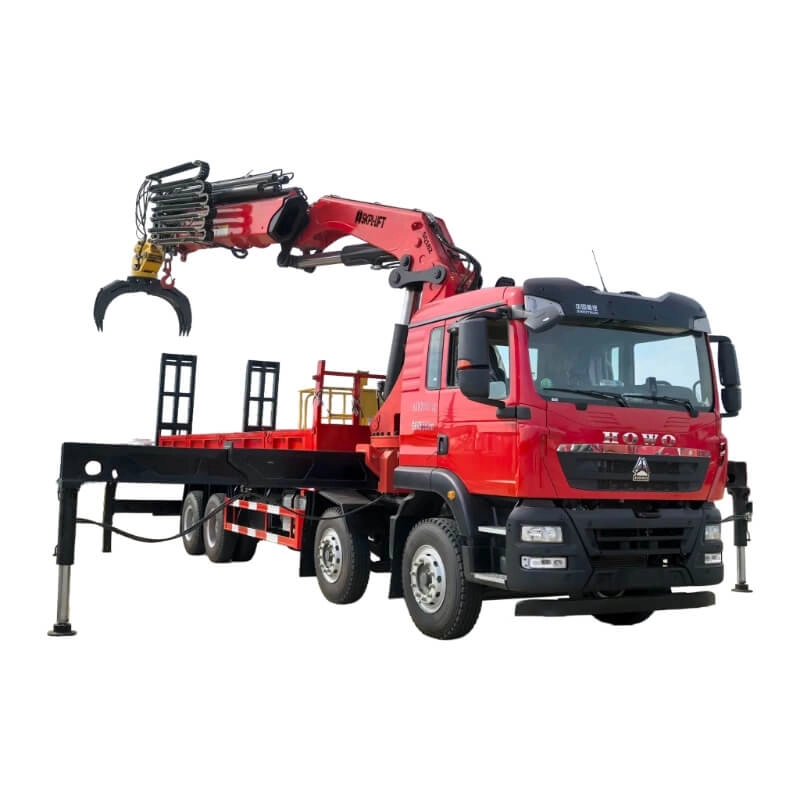

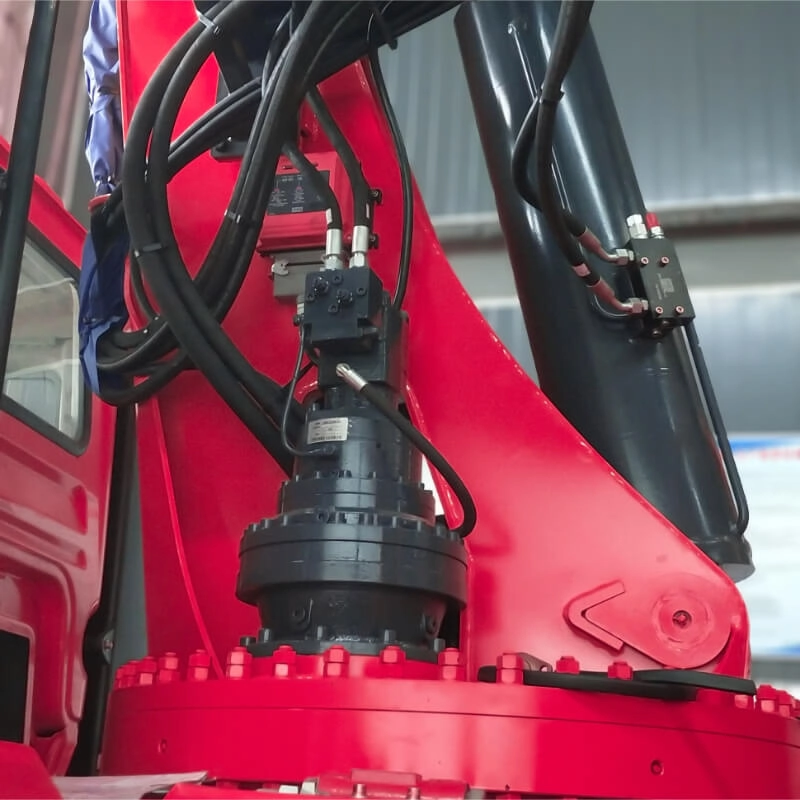

A knuckle boom truck crane folds into itself much like a human finger. This design maximizes available payload space on the truck bed.
Best for: Tight urban spaces, complex maneuverability, and navigating loads around intricate obstacles. They excel at loading and unloading their own flatbeds.
Trade-offs: They offer limited vertical reach compared to telescopic counterparts. Articulating booms typically lack a winch line, though some premium models offer them as aftermarket add-ons.
A telescopic boom truck crane features straight, extending sections. It operates via an internal hydraulic cylinder pulling a heavy-duty winch.
Best for: Maximum vertical reach, suspending materials over tall structures, and precise linear lifting. They dominate traditional construction environments.
Trade-offs: They require significantly more clearance space to swing. The boom housing rests horizontally across the truck, which reduces available payload area on the bed.
Feature | Knuckle Boom Architecture | Telescopic Boom Architecture |
|---|---|---|
Articulation | High (Multi-joint flexibility) | Low (Linear extension only) |
Bed Payload Space | Maximum (Compact folding) | Reduced (Boom rests over bed) |
Vertical Reach | Moderate | Exceptional |
Winch Integration | Optional / Rare | Standard |
Ideal Environment | Urban alleys, logistics, delivery | Open construction sites, roofing |
Beyond the boom shape, you must evaluate the internal fluid power system. A robust hydraulic truck crane relies entirely on optimal fluid dynamics. Evaluate hydraulic system flow rates carefully. High flow rates ensure faster boom deployment and smoother multi-function operations. Assess fluid cooling capacities if you plan on continuous duty cycles. Overheated hydraulics lead to sluggish controls and accelerated seal degradation. Precision controls require perfectly calibrated proportional valves.
Load charts represent the absolute truth of your equipment's capability. Reading them incorrectly leads to disastrous structural failures. You must ignore simplified marketing numbers.
Buying based solely on advertised maximum capacity presents a dangerous operational risk. Manufacturers print the highest possible number in bold letters. However, max capacity only applies at the shortest working radius and the highest boom angle. A crane rated for 20 tons might only safely lift 1 ton when extended fully horizontally. If you buy a 10-ton machine to lift a 9-ton load at a 20-foot radius, the machine will fail catastrophically.
You must navigate the load chart methodically. First, locate your required operating radius on the horizontal axis. Next, find your required boom angle or extension length on the vertical axis. The intersecting number is your gross capacity.
However, gross capacity is not your usable capacity. You must account for strict deductions. You have to subtract the weight of the hook block, wire rope, rigging hardware, and any attached jib. If the chart says 5,000 lbs, but your rigging weighs 500 lbs, your true net lifting capacity is only 4,500 lbs. Ignoring these deductions is a very common and dangerous mistake.
Load charts assume perfectly static conditions in controlled environments. Real-world sites introduce dynamic forces. Wind loads push against suspended materials, increasing leverage against the turret. Dynamic swinging happens when operators rotate the boom too quickly. These movements create centrifugal force, pulling the load outward and increasing the effective working radius. You must factor in environmental conditions and reduce your safe lifting threshold accordingly. Experienced riggers often apply a 20% deduction for dynamic field variables.
A crane is merely an attachment. It is only as stable as the truck underneath it. Rigorous chassis matching prevents highway compliance failures and structural tearing during lifts.
The underlying truck must legally and structurally support the entire package. The GVWR must accommodate the empty weight of the truck, the heavy crane unit, outriggers, crew members, fuel, and maximum payload. Exceeding GVWR causes brake failure, suspension collapse, and severe legal liabilities during highway transit. You must verify these weights on certified scales.
Total weight represents only half the equation. You must calculate weight distribution precisely. Determine the Front Gross Axle Weight Rating (FGAWR) and Rear Gross Axle Weight Rating (RGAWR). A heavy crane mounted too far forward overloads the front steering axle. This causes tire blowouts and steering loss. Conversely, mounting it too far back causes rear-axle overloading and front-axle lifting. The front wheels could literally lose traction during highway transit. Engineering software must simulate this distribution before mounting begins.
Truck frames endure immense torque during lifting operations. You must assess the frame's Resistance to Bending Moment (RBM). RBM measures the frame's structural stiffness based on section modulus and steel yield strength. An insufficiently rigid frame will torque, twist, or snap under heavy lifting. This causes catastrophic equipment failure regardless of the crane's independent rating. If your truck frame lacks the required RBM, engineers must weld full-length structural reinforcements before installation.
Selecting the hardware is only step one. Choosing the right engineering partner ensures your equipment operates safely for decades. A vendor should act as a consultant, not just a distributor.
A credible truck mounted crane manufacturer provides comprehensive integration data. They will supply exact mounting directives and structural blueprints. They calculate the center of gravity for the final assembly. Furthermore, they perform chassis compatibility verification before you sign a purchase order. If a vendor refuses to run axle weight distribution simulations, find another partner immediately.
Heavy lifting is a heavily regulated industry. Verify absolute alignment with regional safety standards. In the United States, equipment must meet OSHA regulations and ASME B30.5 standards. In Europe, verify compliance with the EN 12999 directive. A reputable manufacturer provides standardized documentation to satisfy site safety inspectors instantly.
Downtime destroys project schedules. Assess the manufacturer’s supply chain transparency. Decision-stage buyers must verify the Service Level Agreement (SLA) for critical replacement parts. Ask about lead times for hydraulic cylinders, valves, and specialized electrical components. Ensure they maintain local authorized service centers near your primary working zones. Rapid parts availability separates tier-one manufacturers from unreliable importers.
Look past the marketing duration on the brochure. A "10-year warranty" often contains extensive fine print. Evaluate what the policy covers specifically. Structural components like booms and turrets should carry long-term guarantees. Hydraulic pumps, seals, and electrical sensors usually carry shorter terms. Understand exactly who performs warranty labor and how quickly they deploy field technicians to your site.
Selecting the right equipment requires balancing practical load charts with rigid chassis constraints. You must ignore superficial maximum capacities. Focus instead on net lifting limits at your specific working radius. Choose the appropriate boom geometry based on your site constraints, whether you need knuckle articulation or telescopic reach. Ensure the underlying truck frame provides adequate RBM to prevent structural failure.
Your next step is straightforward. Compile your maximum lift weight, maximum radius, and typical job site spatial constraints into a single operational brief. Take this brief to a vetted manufacturer's engineering team. Ask them to run a formal chassis-matching simulation to guarantee precise, safe, and fully compliant integration.
A: The working radius is measured from the center of the crane's rotation (the turret) to the center of the load's center of gravity when fully suspended. It determines your actual lifting capacity accurately.
A: While capable of lifting materials to moderate heights, knuckle booms are generally less efficient for pure vertical, high-elevation construction lifting compared to telescopic booms equipped with a winch line.
A: Yes, in most jurisdictions, if the combined Gross Vehicle Weight Rating (GVWR) of the truck and crane exceeds 26,000 lbs (or equivalent regional thresholds), the driver must hold a valid Commercial Driver's License (CDL), in addition to specific crane operator certifications (e.g., NCCCO).
A: Stated maximums apply only under perfect conditions at the absolute minimum radius. As the boom extends horizontally, leverage decreases the crane's safe lifting capacity exponentially. Rigging weight also subtracts from the total lift allowance.
