Executive Overview
On May 10, 2026, SKPL-LIFT successfully commissioned and delivered a custom-engineered, lightweight 4-ton articulating knuckle boom crane tailored for severe all-terrain operations in Central Asia. Utilizing an ultra-low tare weight of just 1,200 kg and a rear-mounted Z-fold configuration, this specialized system integrates seamlessly onto a client-supplied 6×6 off-road truck platform equipped with an enclosed service cabin—delivering unyielding lifting resilience across the isolated steppes of Kazakhstan.
Precision in industrial manufacturing demands uncompromising adherence to temporal benchmarks. On May 10, 2026, the formal commissioning schedule for a highly specialized articulating lifting system was successfully concluded. This milestone marked the culmination of months of rigorous computational modeling, metallurgical selection, and hydraulic calibration. Every phase of the manufacturing timeline was executed with methodical precision. The timely handover underscores a disciplined operational methodology, ensuring that complex engineering projects transition seamlessly from fabrication facilities to active field deployment without logistical friction.
Central Asia presents a formidable topography characterized by vast steppes, extreme climate fluctuations, and isolated industrial frontiers. Operating within this challenging terrain requires equipment engineered for unyielding resilience. The deployment of this specialized Kazakhstan lifting equipment signifies a strategic expansion into a region where infrastructure development and resource extraction are accelerating rapidly. Standardized hoisting machinery often falters under the topographical vicissitudes of the Eurasian hinterland. Consequently, introducing bespoke, ruggedized lifting solutions addresses a critical operational void for regional contractors navigating desolate job sites.
In complex vehicular integrations, a clear demarcation of engineering responsibilities ensures optimal structural integrity. As the dedicated crane manufacturer, SKPL-LIFT directed its focus exclusively toward hydraulic lifting mechanics, structural articulation, and load-bearing kinematics. The engineering purview encompassed the design of the pedestal, the slewing mechanism, the hydraulic actuation systems, and the folding boom assembly. By isolating the hoisting apparatus as an independent modular unit, the manufacturing team concentrated entirely on maximizing mechanical advantage, hydraulic efficiency, and structural durability.
The foundational mobility of the lifting system was entrusted to the client, who provided a robust 6×6 off-road truck platform. This multi-axle all-terrain chassis serves as the mobile root for the hydraulic superstructure. Integrating a high-capacity articulating crane onto a heavy-duty vehicular frame requires meticulous calculation of dynamic forces and torsional stress. The customer's engineering division oversaw the physical mounting, power take-off (PTO) interfacing, and subframe reinforcement required to marry the truck chassis with the high-torque hoisting apparatus.
Environmental hostility is a primary cause of mechanical fatigue and operator error. To mitigate the severe winter freezes and arid summer heats indigenous to the Kazakh steppes, the vehicle platform was outfitted with a fully enclosed, thermally insulated service cabin. This self-contained module protects diagnostic computers, hydraulic control banks, and maintenance personnel from particulate ingress and sub-zero temperatures. Pairing the exposed mechanical strength of the boom with an armored, climate-controlled workspace ensures continuous operational capability regardless of external atmospheric phenomena.
Visual conspicuation is a critical safety imperative in expansive outdoor industrial zones. The crane was rendered in a distinctive, high-visibility red powder-coated finish, specifically formulated to resist UV degradation and mechanical abrasion. Beyond aesthetics, this custom knuckle boom crane was engineered to execute intricate geometry. The articulation points were calculated to allow precise load positioning over obstacles, beneath overhead obstructions, and within tight scaffolding footprints where rigid, telescopic booms cannot function.
The structural backbone of the crane relies on advanced metallurgical selection. High-tensile steel alloys were utilized throughout the boom architecture to withstand severe bending moments and torsional shearing forces. This specialized steel exhibits an exceptional strength-to-weight ratio and superior yield strength. It resists micro-fracturing under cyclic loading conditions. By utilizing steel grades with high fatigue limits, the boom sections maintain dimensional stability and structural rigidity even when subjected to shock loads in sub-freezing working environments.
Kinematic efficiency depends on the smooth transfer of kinetic energy across structural pivot points. The articulation joints—the structural knuckles of the crane—were designed with oversized, induction-hardened pins and self-lubricating bronze bushings. Finite Element Analysis (FEA) was utilized during the prototyping phase to model stress concentrations across these joints. The resulting geometry systematically dissipates hydraulic actuation forces throughout the boom plates, preventing localized fatigue and ensuring fluid movement during complex compound lifts.
Deadweight is the primary adversary of vehicular efficiency. Through aggressive structural optimization and the strategic application of high-yield structural steel, the complete crane assembly achieved an ultra-low tare weight of just 1,200 kilograms. This engineering feat involved shaving extraneous mass from non-load-bearing structural sections while reinforcing zones subjected to high stress concentrations. The result is a lean, muscular lifting machine that imposes minimal physical burden on the host chassis.
Every kilogram saved in crane architecture directly translates to increased cargo capacity. By curbing the self-weight of the hydraulic superstructure to 1,200 kilograms, the mathematical delta of the vehicle’s Gross Vehicle Weight Rating (GVWR) remains largely intact. This preserved payload allowance is vital for field operations. It permits operators to transport heavy diagnostic equipment, welding rigs, replacement valves, and auxiliary fuel tanks simultaneously, eliminating the need for secondary support vehicles on remote assignments.
Improper weight distribution can induce premature suspension failure, tire blowouts, and severe chassis deflection. The lightweight profile of this lifting unit ensures absolute compatibility with the 6×6 chassis without approaching critical axle load thresholds. Computational weight mapping confirmed that the center of gravity remains within the vehicle's optimal stability envelope, both during high-speed transit over unpaved roads and during stationary heavy lifting.

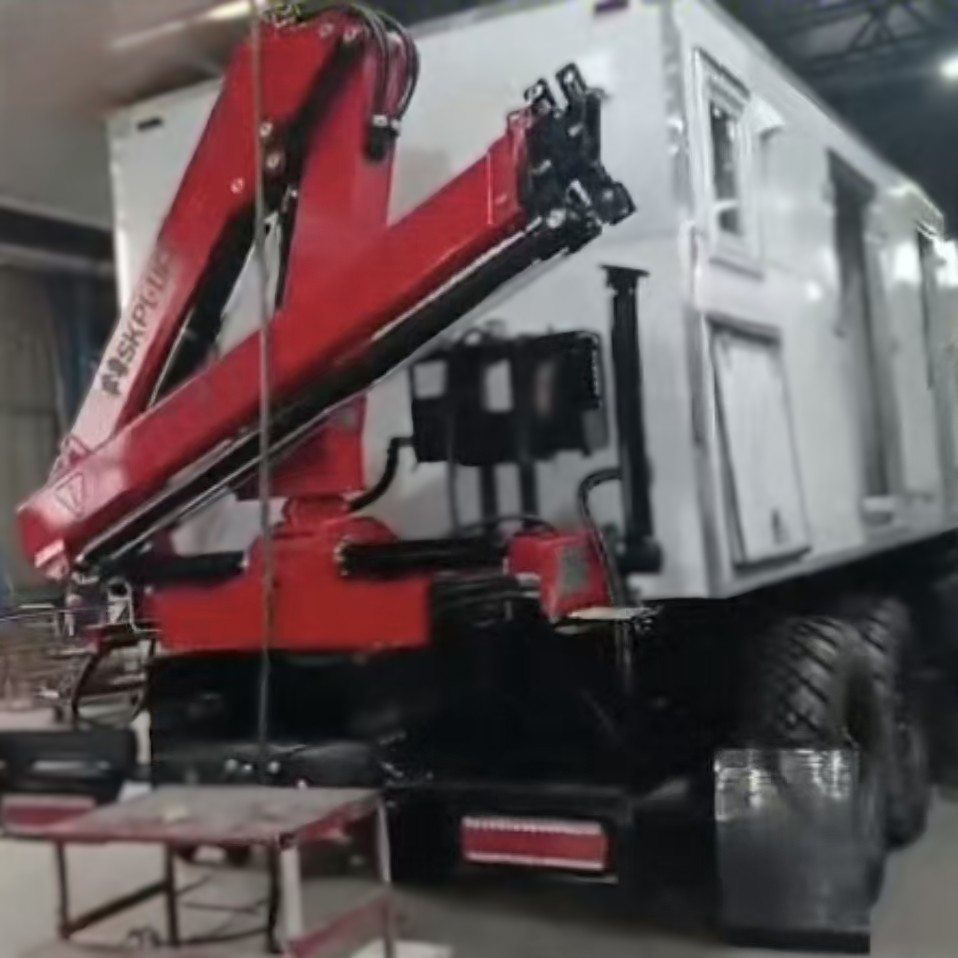

Spatial ergonomics dictate the utility of any transportable service unit. The crane was configured for a rear-mounted installation, anchoring the pedestal at the aft overhang of the chassis. This structural layout preserves the entirety of the mid-ship deck for cargo storage and custom enclosed cabin integration. By pushing the slewing ring to the rear perimeter, operators gain an unobstructed platform for loading and transporting bulky industrial components directly aboard the host vehicle.

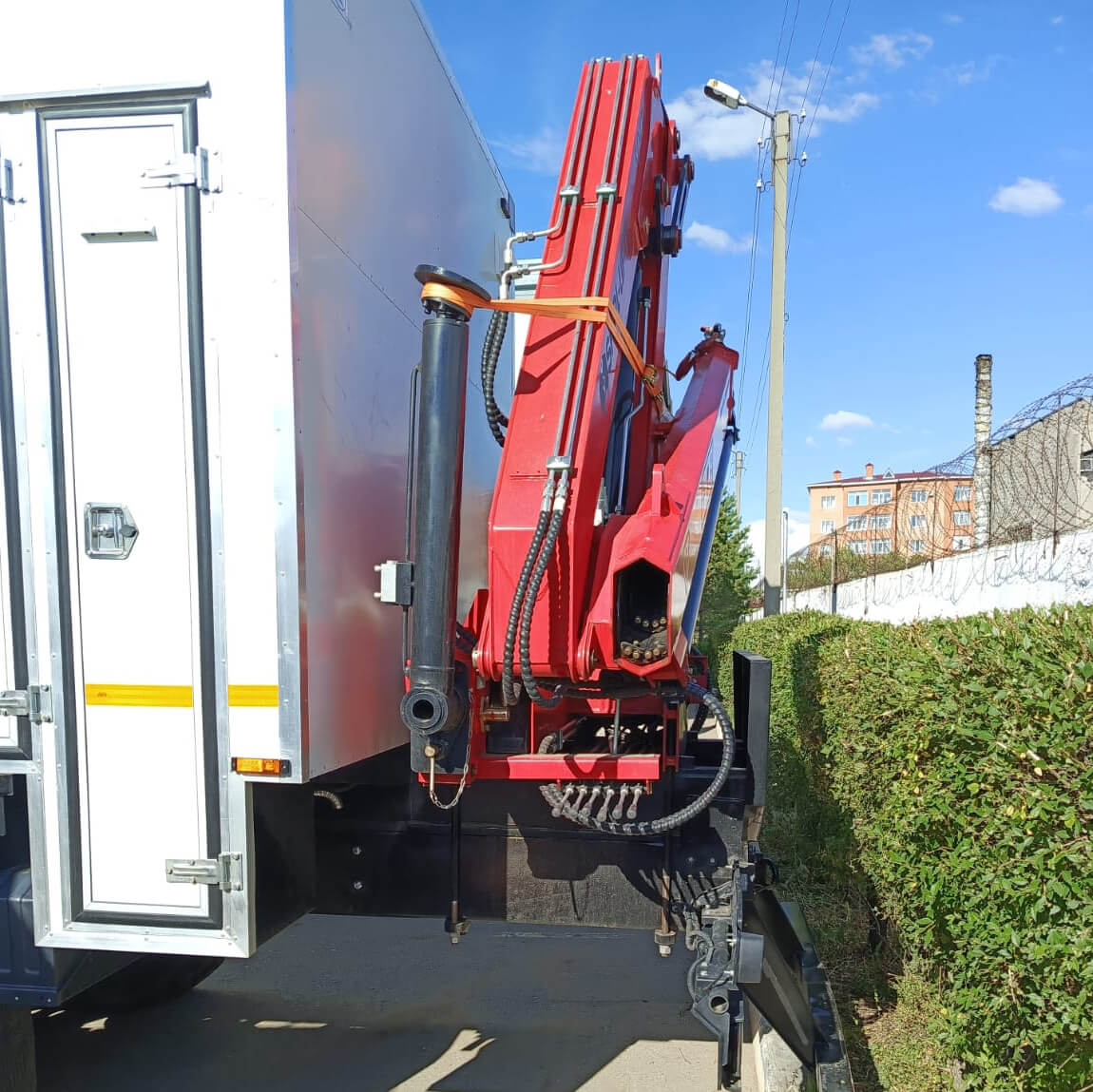

Navigating narrow mountain passes or densely packed industrial facilities requires a compact transit profile. The articulating boom utilizes an advanced Z-fold geometry, allowing the entire structural assembly to retract compactly across the rear of the chassis. This low-profile stowage prevents overhead obstructions from catching the boom during transit. Furthermore, it concentrates the mass of the crane lower to the ground, improving vehicular aerodynamics and rollover resistance during off-road transit.
A rear-mounted pedestal fundamentally alters the spatial envelope of lifting operations. It grants the articulating boom an extensive rotational arc that encompasses the rear and both lateral flanks of the vehicle with zero mechanical interference from the truck cab. In confined work zones where vehicular repositioning is impossible, this multi-directional reach allows operators to hoist components precisely from ditches, elevated embankments, or adjacent flatbeds with effortless slewing maneuverability.
Specification Parameter | Engineered Rating / Technical Capability | Operational Advantage |
Rated Lifting Capacity | 4 Tons (at primary working radius) | Heavy-duty handling of infrastructure vaults & generators |
Maximum Working Radius | 8 Meters (via hydraulic extension) | Spans wide trenches and elevated structural tiers |
Tip Load Capacity | 1 Ton (1,000 kg at full 8m outreach) | Precision placement at the extreme operational edge |
Crane Self-Weight | 1,200 kg (ultra-low tare mass) | Maximizes vehicle GVWR and payload retention |
Mounting Configuration | Rear-Mounted Pedestal | Preserves mid-ship deck space for cargo & cabin |
Stowage Geometry | Compact Z-Fold | Low-profile transport and lower center of gravity |
At its primary working radius, the lifting system delivers a substantial rated capacity of 4 tons. This heavy-duty threshold was engineered specifically to handle the demands of infrastructure maintenance, such as hoisting industrial generators, heavy pipe sections, and prefabricated concrete vaults. The hydraulic architecture utilizes high-pressure piston pumps and large-bore lift cylinders to generate smooth, consistent hoisting force without hydraulic cavitation or mechanical hesitation.
Reach is just as critical as raw lifting power. Through the integration of smooth-sliding hydraulic extension booms, the system extends to a maximum working radius of 8 meters. This horizontal reach allows operators to span wide trenches, reach across perimeter fencing, or deliver materials to elevated structural tiers. The boom extension system is powered by internally routed hydraulic cylinders, which protects vulnerable hoses from environmental degradation and accidental impact.
The true measure of structural integrity in an articulating crane is its performance at maximum horizontal extension. At its full 8-meter outreach, this system maintains a robust lifting capacity of 1 ton (1,000 kilograms). Sustaining this tip load requires exceptional resistance to structural deflection and sophisticated hydraulic counterbalance valves that prevent boom drift under heavy torque. This capability ensures that precision placement of heavy components can occur at the very edge of the operational envelope with absolute stability.
Linear infrastructure—such as crude oil pipelines, high-voltage transmission towers, and remote railway networks—requires agile maintenance solutions. Configured as a specialized field maintenance crane, this unit operates as a decentralized logistics hub. It can travel across unimproved terrain, deploy its hydraulic outriggers in minutes, and execute critical repairs autonomously. This rapid deployment capability minimizes downtime for essential municipal and industrial utility networks.
The extractive industries operate in some of the world's most inhospitable environments. In open-pit mines and remote extraction sites, hauling heavy earthmoving machinery back to a central maintenance depot is economically prohibitive. This truck-mounted crane facilitates in-situ servicing. It is fully capable of pulling engines, replacing heavy hydraulic actuators, and swapping armored track components directly on the mining bench, thereby supporting continuous, uninterrupted resource extraction.
Engineering excellence extends beyond physical machinery to encompass intellectual assets and operational data. The delivery was accompanied by a thorough suite of technical documentation, including:
Comprehensive Finite Element Analysis (FEA) reports
Complete hydraulic schematics and wiring diagrams
Certified, multi-angle load charts
This proprietary engineering documentation ensures that field mechanics and fleet managers possess the necessary data to maintain, troubleshoot, and optimize the custom truck-mounted crane throughout its operational lifecycle.
Before final handover, the hoisting apparatus underwent an exhaustive protocol of static and dynamic overload testing. Empirical validation included subjecting the boom to weights exceeding its nominal capacity to verify the calibration of electronic Load Moment Indicators (LMI) and structural safety valves. Skilled commissioning engineers provided on-site installation guidance, overseeing the final integration between the hydraulic pump and the chassis PTO, ensuring that every mechanical system operated in absolute harmony.
The global industrial landscape is increasingly shifting toward remote frontier development, driving a surge in demand for decentralized, highly mobile material handling equipment. Standardized lifting machinery is frequently ill-suited for the realities of off-road infrastructure projects. By engineering robust, highly articulated, and lightweight hoisting solutions, SKPL-LIFT positions itself at the forefront of this market, supplying machinery capable of operating reliably far beyond the reach of conventional paved roads and stationary cranes.
For fleet procurement directors and engineering contractors, capital expenditure must yield tangible operational versatility. Evaluating the SKPL-LIFT knuckle boom crane reveals a compelling return on investment driven by its low tare weight, high payload retention, and mechanical reliability. By bridging the gap between heavy lifting capacity and agile off-road mobility, this specialized lifting system represents a vital asset for enterprises operating within the most demanding industrial sectors of the global economy.
