Heavy material handling efficiency relies entirely on the precise synchronization of mechanical and hydraulic systems. Operating lifting equipment introduces immense dynamic forces to both the machine and the ground below it. Procuring mismatched lifting equipment introduces severe operational risks. You face chassis overloading, hydraulic failure under peak loads, and inadequate stabilization that leads to catastrophic tipping. Equipment failure on a job site halts operations and creates severe safety hazards for ground personnel.

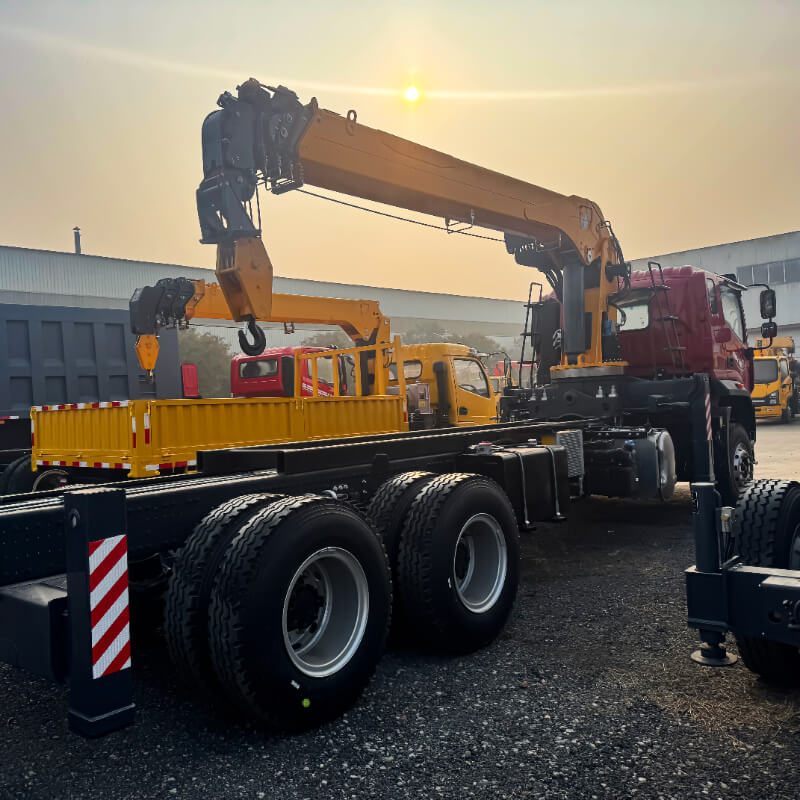

Understanding the motions, structural stress points, and underlying mechanics of a Boom Truck Mounted Crane is a prerequisite for making an informed procurement decision. You must look past basic lift capacities to analyze hydraulic duty cycles, chassis integration, and structural engineering. We will break down how these core components interact under load, how to evaluate mechanical specifications for specific site constraints, and how to mitigate long-term maintenance risks.
Hydraulic Dependency: The operational ceiling of a boom truck mounted crane is dictated by its hydraulic system’s capacity to manage fluid dynamics under high-pressure duty cycles.
Structural Stress Management: Heavy hauling and lifting exert massive, dynamic forces on the boom and turret; evaluating the manufacturer's stress-testing and simulation data is critical for long-term durability.
Stabilization Mechanics: Lifting capacity is irrelevant without proper outrigger mechanics and strict adherence to setup protocols (e.g., parking brake engagement, maximum 5-degree tilt).
Procurement Alignment: Selecting the right unit requires matching the crane's kinematic capabilities (slewing, luffing, telescoping) directly to the specific spatial and payload constraints of the intended job sites.
The hydraulic system acts as the central nervous system of any truck-mounted lifting equipment. Power generation begins at the truck's engine and transfers to the hydraulic pumps via the Power Take-Off (PTO). The PTO mechanically links the vehicle's transmission to the crane's hydraulic pump. It converts rotational engine force into hydraulic fluid pressure. This pressure drives every subsequent motion, from extending the outriggers to hoisting the payload.
Operators must follow a strict operational setup sequence before initiating hydraulic activation. Skipping these steps guarantees drivetrain damage or site accidents. The standard engagement sequence involves specific mechanical steps:
Set the chassis parking brake to lock the rear axles.
Shift the truck transmission into neutral to disengage the drive wheels.
Engage the PTO switch from the cab to mesh the PTO gear with the transmission.
Verify the hydraulic pump is spinning and building system pressure.
Route hydraulic fluid through the proportional valve banks to warm the system.
Evaluating hydraulic system efficiency requires analyzing cooling requirements and pressure ratings. High-pressure duty cycles generate significant heat. A robust hydraulic cooler prevents fluid degradation during continuous operation. When comparing crane models, examine the pump flow rate and maximum system pressure. Higher pressure ratings allow for smaller, lighter cylinders without sacrificing lifting force. This reduces the overall dead weight of the crane structure. Variable displacement piston pumps offer superior multi-functioning capabilities compared to standard gear pumps, allowing operators to winch, slew, and luff simultaneously without pressure drops.
The telescopic boom provides the horizontal and vertical reach necessary for material placement. This mechanism relies on a complex interaction of extension cylinders, cable-crowd systems, and internal wear pads. Wear pads, typically made of Nylatron or bronze, sit between the boom sections. They reduce friction and prevent metal-on-metal contact as the sections slide past one another. Extension cylinders push the primary sections outward. Cable-crowd mechanisms use heavy-duty wire ropes and sheaves to pull subsequent sections out synchronously.
Material science dictates boom performance. Manufacturers utilize high-tensile steel alloys to fabricate the boom profiles. This specialized steel prevents structural deflection when fully extended under a heavy load. A rigid boom ensures precise load placement and reduces the pendulum effect during slewing motions. Hexagonal or octagonal boom profiles offer higher torsional resistance than standard rectangular profiles.
The operator control interface translates human input into mechanical action. Manual valve banks provide direct, tactile feedback. However, they require the operator to stand at the control station, which often limits their line of sight. Wireless radio remotes allow the operator to walk the job site. This maintains a clear view of the payload and rigging crew. When evaluating boom mechanics, contrast sequential extension systems with proportional systems. Sequential booms extend one section fully before the next begins. Proportional systems extend all sections simultaneously. This maintains optimal structural strength and keeps the center of gravity closer to the turret.
The crane winch serves as the core lifting component for vertical load manipulation. It consists of a hoist drum, a drive motor, and a braking system. The wire rope spools tightly around the grooved hoist drum. Proper spooling prevents the rope from crushing itself under tension. The wire rope routes over the boom tip sheaves and connects to the hook block. Heavy-duty applications require rotation-resistant wire rope to prevent the load from spinning uncontrollably in the air.
Power delivery mechanisms for the winch dictate the crane's operational limits. Dedicated hydraulic motors dominate heavy-duty boom trucks. They offer immense torque, excellent heat dissipation, and the ability to hold heavy loads indefinitely without mechanical strain. Electric motors often appear on lighter service trucks. While electric motors reduce the complexity of hydraulic plumbing, they overheat rapidly under continuous duty cycles.
Winch Drive Type | Torque Delivery | Duty Cycle Capability | Maintenance Requirements |
|---|---|---|---|
Hydraulic Motor | High, consistent torque at all speeds. | Continuous operation; excellent heat dissipation. | Requires fluid filtration, hose inspections, and seal replacements. |
Electric Motor | Moderate torque; drops under heavy strain. | Intermittent operation; prone to thermal overload. | Requires battery maintenance, alternator checks, and contactor cleaning. |
Winch performance directly impacts job site productivity. Connect winch line pull ratings and line speed to your operational cycle times. A winch with a high single-line pull rating can lift heavier loads without requiring complex, multi-part line rigging. Faster line speeds reduce the time spent raising and lowering the hook block. This accelerates repetitive material handling tasks.
Luffing defines the vertical elevation of the boom structure. The main lift cylinder anchors to the turret and pushes against the base boom section to raise or lower the angle. This action involves massive pivot-point forces. As the boom lowers toward a horizontal position, the mechanical advantage decreases. The stress on the lift cylinder and pivot pins increases exponentially. Luffing dictates the working radius. Lowering the boom pushes the load further away from the chassis, which immediately reduces the total lifting capacity.
Slewing refers to the rotation of the entire crane upperworks. This motion relies on a slew bearing and a hydraulic swing drive motor. The swing motor utilizes a pinion gear that meshes with the teeth of the slew bearing to rotate the turret. Smooth slewing requires precise hydraulic control to prevent the suspended load from swinging. Operators must grease the slew bearing regularly while rotating the crane to ensure even lubricant distribution across the internal ball bearings.
Mechanical limitations in slewing directly impact site positioning. Continuous 360-degree rotation utilizes a hydraulic swivel joint. This allows the crane to spin infinitely in either direction without tangling hydraulic hoses. Restricted rotation systems limit movement to 370 or 400 degrees. The operator must reverse direction to return to the starting point. On confined job sites, continuous rotation offers superior flexibility. Operators can pick a load from the rear and swing it directly over the front without navigating back through a restricted path.
Telescoping a load away from the center of gravity alters the physical dynamics of the entire machine. The crane operates on the principle of leverage. The chassis and outriggers act as the counterweight. The boom acts as the lever arm. As the boom extends, the load moment increases. Even if the actual weight of the payload remains constant, the force it exerts on the crane structure amplifies as it moves further from the pivot point.
Hauling heavy materials and adjusting boom length under load exerts dynamic, shifting forces. Wind resistance, sudden braking of the winch, or jerky slewing motions introduce lateral stresses that the boom must absorb. The structural integrity of the crane depends on managing these dynamic loads safely. Side-loading a boom by dragging a load across the ground will permanently bend the steel sections.
Modern equipment mitigates these risks using Load Moment Indicators (LMI). An LMI system utilizes pressure transducers on the lift cylinder, a cable reel for boom extension length, and an inclinometer for boom angle. The onboard computer calculates the exact load moment in real-time. It compares this data against the manufacturer's safe load charts. If the operator attempts a motion that exceeds the safe working radius, the LMI mechanically locks out those specific functions. The operator can only execute motions that bring the load back into a safe configuration, such as retracting the boom or winching down.
Procuring a crane requires matching the lifting unit to an appropriate truck chassis. The crane's lifting moment defines its true capacity. A 10-ton-meter crane can lift 10 tons at a 1-meter radius, or 1 ton at a 10-meter radius. The truck chassis must possess a Gross Vehicle Weight Rating (GVWR) capable of supporting the crane's dead weight, the payload, and the dynamic forces generated during operation.
Selecting the right chassis involves calculating axle loads and frame strength. The chassis frame must resist twisting and bending when the crane operates over the side or rear. Manufacturers require reinforced frame rails or full-length subframes to distribute the lifting stresses evenly across the truck's suspension. The Resisting Bending Moment (RBM) of the truck frame must exceed the maximum load moment of the crane.
Balancing chassis size against operational needs requires evaluating trade-offs. A heavier, more stable chassis provides a rigid foundation for maximum lifting capacity. However, it consumes a large portion of the legal road weight limit, leaving less payload capacity for hauling freight. A lighter chassis maximizes freight capacity but restricts the size of the crane you can mount.
Specification Dimension | Heavy Chassis Configuration | Light Chassis Configuration |
|---|---|---|
Stability & Rigidity | High torsional resistance; supports max load charts over 360 degrees. | Lower resistance; often requires derated load charts over the front cab. |
Freight Payload Capacity | Reduced due to heavy base weight and reinforced subframes. | Maximized for hauling materials, tools, and job site supplies. |
Site Accessibility | Requires larger turning radius and wider setup footprint. | Easier to maneuver in urban environments and confined alleys. |
Outrigger Requirements | Massive out-and-down systems required to stabilize heavy boom weights. | Standard A-frame outriggers often sufficient for lighter lifts. |
Lifting capacity means nothing if the machine cannot remain upright. Outriggers expand the tipping axis of the vehicle. They move the fulcrum point away from the tires and out to the outrigger pads. A-frame outriggers extend diagonally downward. They are mechanically simple and deploy quickly but offer a limited stabilization span. H-style, or out-and-down outriggers, extend horizontally first, then vertically. This design provides a significantly wider footprint, drastically increasing the crane's stability and allowing for heavier lifts at greater radii.
The physics of stabilization demand strict adherence to operational limits. The ground must be level. Operating on a slope shifts the center of gravity toward the downhill outriggers. This overloads them and increases the risk of structural failure or tipping. Manufacturers mandate a maximum 5-degree tilt operational limit. Exceeding this tilt voids the load chart parameters and compromises the mechanical integrity of the slew bearing.
Evaluate outrigger span and pad footprint against the soil bearing capacity of your typical work environments. Soft soil, mud, or uncompacted gravel cannot support the point load of an outrigger pad under heavy lifting conditions. A 40,000-pound load concentrated on a small steel pad will punch directly through asphalt or topsoil. Operators must use appropriately sized cribbing or crane mats to distribute the outrigger force over a larger surface area.
Heavy hauling and lifting subject the crane to relentless mechanical stress. Over time, this stress leads to metal fatigue in critical areas. Boom pivot pins, slew rings, and outrigger housings absorb the brunt of the dynamic forces. Micro-fractures develop in the steel grain structure, eventually leading to catastrophic failure if left unmonitored. Welds around the turret base require frequent visual and ultrasonic inspections.
Top-tier manufacturers mitigate this risk during the engineering phase utilizing finite element analysis (FEA) and dynamic load simulation. FEA software models the crane structure digitally and applies simulated lifting forces to identify high-stress nodes. Engineers then reinforce these specific areas with thicker steel plating or specialized weld techniques. Request this stress-testing data during procurement to verify the machine's long-term durability.
Hydraulic systems degrade over time due to harsh operating environments. Hydraulic fluid contamination stands as the primary cause of pump and valve failure. Dirt, moisture, or metal shavings entering the reservoir act as an abrasive paste. This scores the internal walls of the hydraulic cylinders and destroys pump gears. Seal degradation causes internal bypassing, leading to cylinder drift where the boom slowly lowers on its own under load. Hose chafing against the steel frame causes external wear, eventually resulting in high-pressure blowouts.
Implementing a strict preventative maintenance schedule mitigates these risks. Focus on filtration standards. Replace hydraulic return filters at the manufacturer's recommended intervals. Use elements with the correct micron rating to trap microscopic contaminants. Conduct regular hydraulic pressure testing to ensure the pump maintains optimal output and the relief valves function correctly. Inspect all hoses for abrasion and replace any lines showing exposed wire braid.
Mechanical failsafes protect the operator and ground crew in the event of component failure. Holding valves, also known as counterbalance valves, bolt directly to the hydraulic cylinders. They require active pilot pressure from the valve bank to open. If a hydraulic hose bursts, pilot pressure drops instantly. The holding valve snaps shut, locking the hydraulic fluid inside the cylinder. This prevents the boom from collapsing or the load from dropping uncontrollably.
Aligning crane mechanics with regulatory standards ensures safe operation and legal compliance. Equipment must meet OSHA regulations and ANSI B30.5 standards for mobile cranes. These standards dictate the required mechanical redundancies, inspection intervals, and operator training protocols. Ensure any procured equipment features certified holding valves, functional anti-two-block (A2B) systems to prevent the hook from crashing into the boom tip, and highly visible load charts.
Consult a structural engineer to calculate exact payload and chassis GVWR requirements for your specific applications.
Request detailed load charts from the manufacturer and map them against your most common working radii.
Schedule a mechanical demonstration focused on testing the Load Moment Indicator (LMI) lockouts under simulated load conditions.
Audit your typical job site soil conditions to determine the required outrigger span and necessary cribbing dimensions.
A: Park the vehicle on level ground and firmly engage the chassis parking brake. Shift the transmission into neutral or the manufacturer-specified gear. Engage the Power Take-Off (PTO) switch from the cab to route engine power to the hydraulic pump before deploying outriggers.
A: The Power Take-Off (PTO) is a mechanical gearbox connecting the truck's transmission to the crane's hydraulic pump. It transfers rotational engine power into hydraulic fluid pressure. This pressure drives all crane movements, including lifting, slewing, and telescoping.
A: The boom extends using internal hydraulic extension cylinders and a cable-crowd mechanism. The cylinders push the primary sections outward. Heavy-duty wire ropes and sheaves pull the subsequent sections synchronously. Internal wear pads reduce friction between the sliding steel sections.
A: Manufacturers mandate a strict maximum ground tilt of 5 degrees. Operating beyond a 5-degree tilt shifts the center of gravity dangerously. This overloads the downhill outriggers, voids the safe load charts, and drastically increases the risk of structural failure or tipping.
A: An LMI uses sensors to monitor boom angle, extension length, and hydraulic pressure to calculate the real-time load moment. If the operator attempts a motion that exceeds the safe load chart parameters, the LMI computer mechanically locks out further dangerous movements.
A: Holding valves, or counterbalance valves, bolt directly to the lift and extension cylinders. If a hydraulic hose bursts and system pressure drops, the holding valve instantly traps the fluid inside the cylinder. This prevents the boom from collapsing under the weight of the load.
