Unlike static land operations, offshore and portside lifting must account for a dynamic foundation. A Marine Crane operates on a vessel subjected to continuous heave (vertical motion), pitch (longitudinal tilt), and roll (lateral tilt). This constant deck movement introduces severe mechanical stress on the slewing bearing and main boom structure. Operators must evaluate the Dynamic Amplification Factor (DAF) to understand how wave periods multiply the effective weight of a suspended load. They must also manage the risk of structural interference from close-proximity vessels, fixed offshore platforms, or adjacent port infrastructure.
The "pendulum effect" acts as one of the most dangerous dynamics in open-water lifting. When a suspended load swings due to vessel roll or sudden wind gusts, it creates massive lateral forces that can exceed the crane's original design parameters. Heavy lateral lifts instantly alter the ship's draft. Hoisting a massive 40-ton payload over the port side can cause rapid vessel listing, creating a dangerous loss of equilibrium. Without rapid counter-ballasting systems shifting water weight internally, this listing behavior can lead to capsize or total boom failure.
Deploying or retrieving equipment from below the water line introduces unique hydrostatic and hydrodynamic variables. When extracting machinery, foundational piles, or debris from the ocean floor, operators face bottom suction. This seabed suction acts as a powerful vacuum, causing abrupt and violent spikes in dynamic load tension when the object finally breaks free from the mud. Winches and wire ropes must be heavily engineered to absorb these shock loads without exceeding their safe working limits and snapping.
The splash zone—the highly volatile area where water meets air—presents extreme danger due to wave impact and a sudden loss of payload buoyancy. Lowering precise scientific instrumentation, Remotely Operated Vehicles (ROVs), or human diver deployment cages safely through this turbulent zone requires exact winch control. Umbilical management systems must work in tandem with the hoist to prevent control cables from tangling or the payload from being violently smashed against the vessel hull during transit.
Marine environments are actively hostile to mechanical and electrical engineering. The immediate impact of saltwater spray, high humidity, and intense ultraviolet (UV) exposure accelerates galvanic corrosion. Hydraulic seals harden and crack under continuous UV exposure, electrical housings face the constant threat of short-circuiting, and standard wire ropes corrode rapidly from the inside out if not aggressively lubricated and sealed.
Beyond material degradation, environmental factors strictly dictate operational viability. Extreme wind speeds require automatic lock-out mechanisms and integrated anemometers to suspend operations when safe limits are exceeded. Ambient noise from massive vessel engines combined with low-light interference during night operations severely restricts operator visibility, raising the hazard level for manual handling during offshore construction or emergency rescue responses.

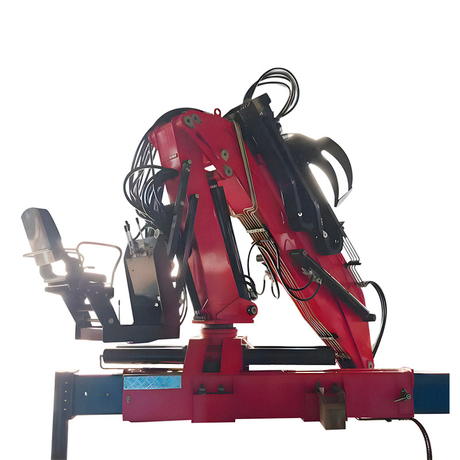

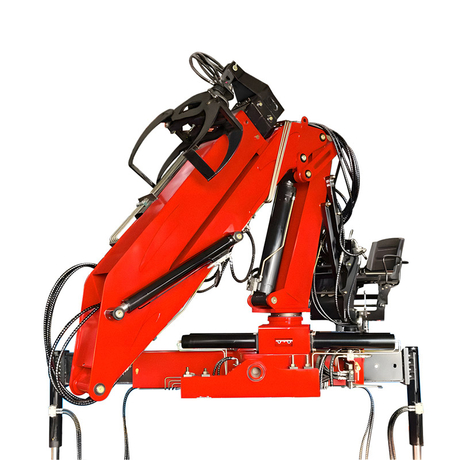

The Knuckle Boom Marine Crane features an articulating arm design heavily reliant on highly responsive hydraulic joints. This structural architecture provides operators with precise load control and keeps the center of gravity incredibly low during transport and operation.
These systems are best suited for vessels with limited deck space requiring high-maneuverability lifts. Common applications include ship-to-ship cargo transfers, precision ROV deployment, and rapid emergency lifeboat launching. Because the articulating boom can fold back on itself, it maximizes available deck space for cargo storage. Operationally, it excels in minimizing load swing. By drastically reducing the physical distance between the boom tip and the payload, operators nearly eliminate the pendulum effect, making it the premier choice for turbulent sea states.
A Telescopic Boom Marine Crane utilizes linear hydraulic extension without articulating joints, providing exceptional horizontal outreach. Many foldable telescopic variants offer constant torque capabilities and maintain minimal stowed footprints when retracted and inactive.
These units fit best into general cargo handling operations, offshore supply vessel logistics, and tasks requiring highly variable reach. Typical ship crane capacities range from 10 to 100 tons depending on the slewing bearing size. They are highly efficient for dockside ship maintenance, such as pre-cast component placement, loading heavy provisions, or handling engine parts and propeller replacements during scheduled drydock servicing.
Stiff boom marine cranes feature a fixed, non-articulating boom permanently mounted on a robust slewing bearing. With fewer moving parts, fewer hydraulic hoses, and zero articulating joints, they remain incredibly rugged and require less complex maintenance compared to folding variants.
These systems dominate heavy, repetitive deck handling tasks on fixed offshore platforms, deep-sea research vessels, or small cargo ships. While they lack the compact storage capabilities of a knuckle boom, their raw lifting power and structural durability make them ideal for continuous material transfer operations. Typical operational capacities range from 1 to 50 tons.
Crane Architecture | Primary Advantage | Deck Footprint | Maintenance Complexity |
|---|---|---|---|
Knuckle Boom | High maneuverability, minimal load swing | Highly Compact (Foldable) | High (Multiple hydraulic joints) |
Telescopic Boom | Maximum horizontal outreach flexibility | Moderate (Retractable) | Moderate (Internal cylinders) |
Stiff Boom | Extreme durability, raw lifting power | Large (Fixed boom length) | Low (Fewer moving parts) |
Barge cranes are massive structural assets mounted on specialized pontoon vessels designed for heavy marine civil engineering. To achieve stability during extreme lifts, these barges deploy hydraulic anchoring legs, known as spuds. These spuds lock deeply into the seabed to negate wave action, hold the vessel perfectly stationary, and prevent drifting during strong tidal shifts.
These heavy-lift systems boast lifting capabilities often exceeding 5,000 tons, with horizontal outreaches pushing up to 180 meters. Their primary uses dominate the offshore energy and construction sectors. Projects include offshore wind turbine installation, hoisting massive monopiles and nacelles into position, complex bridge span construction, the systematic decommissioning of aging offshore oil platforms, and highly sensitive wreck salvage operations requiring immense vertical pull forces.
Gantry cranes span the entire width of large cargo vessels, facilitating high-speed loading and unloading. They frequently feature lifting capacities exceeding 400 tons and outreaches greater than 60 meters. To enhance safety and efficiency, they utilize remote-controlled or operator-driven trolley cabs suspended directly above the payload, offering a transparent, bird's-eye view of the container stacks.
Port cranes are specifically sized by vessel reach using standard Panamax classifications:
Classification | Vessel Reach (Rows) | Typical Capacity | Lifting Height |
|---|---|---|---|
Panamax | Up to 13 rows | ~30-40 tons | ~38 meters |
Post Panamax | Up to 16 rows | 40-50 tons | 30-40 meters |
Super Post Panamax | 25+ rows | 65-100+ tons | 40-50+ meters |
Yard logistics rely on evaluating specific mobility systems to route containers efficiently. Rubber-Tired Gantries (RTG) utilize heavy diesel engines or electric cable carriers for high mobility across the tarmac. Rail-Mounted Gantries (RMG) operate on fixed steel tracks and support the heavy data-communication needs required for terminal tracking. Fully Automated Stacking Cranes (ASC) manage high-throughput, human-free container yards using laser positioning. For localized stacking, reach stackers serve as mobile vehicle-based cranes capable of stacking full containers up to four layers deep.
A specialized shipyard asset, the level luffing crane utilizes an articulated jib mechanism. This engineering allows the crane to keep the hook at a perfectly horizontal level during luffing (the process of moving the boom up and down). This eliminates vertical drift during horizontal maneuvers, making it essential for high-precision shipyard assembly, drydock manufacturing processes, and mating large ship hull sections.
Not all marine applications demand massive offshore capacities. Small marine crane solutions, typically categorized strictly as dock cranes, govern systems under 10 tons. These highly versatile units feature 360-degree continuous rotation and often utilize dual-power setups, allowing rapid switching between electric power grids and independent diesel operation based on available port infrastructure.
Their primary uses dominate inland waterways and coastal ports. Operations include shallow-water dredging, localized aquaculture cage handling, unloading sand and heavy aggregates from river barges, and rapid deployment for marine rescue teams operating in severely restricted draft zones where large vessels cannot enter.
Modern terminal operations have abandoned traditional hook-and-sling setups for rigid container handling. Spreader bars replace standard rigging by locking directly into the container's corner castings from all four points simultaneously. This ensures the structural integrity of the container is maintained during rapid hoisting acceleration. Advanced spreaders can hoist up to four empty containers or two fully loaded twenty-foot equivalent units (TEUs) simultaneously, lifting upwards of 65 tons in a single motion to drastically reduce vessel turnaround time.
Marine construction relies heavily on specific crane attachments to manipulate the seabed. Pile drivers are hoisted by heavy-duty cranes to guide foundational steel or massive concrete piles precisely into the ocean floor, serving as the bedrock for commercial dock expansions and bridge footings. For channel clearing and maintenance, dredging tooling proves necessary. Clamshell buckets, specialized dredging buckets, and heavy-duty underwater augers are deployed to excavate sediment, rapidly transferring the excavated material directly to waiting hopper barges for offshore disposal.
Safely lowering equipment to the seabed from a rolling vessel requires decoupling the crane's hook from the vessel's movement. This decoupling process is achieved through precision heave compensation.
Active Heave Compensation (AHC) relies on sensor-driven control software, Motion Reference Units (MRUs), and highly responsive hydraulic actuators. The MRU continuously measures vessel motion—specifically pitch, roll, and heave in real-time. It then automatically adjusts the winch payout in milliseconds, maintaining a static load position relative to the seabed regardless of the wave action violently hitting the hull. AHC remains mandatory for delicate subsea pipeline installations and ROV management.
Passive Heave Compensation (PHC) provides mechanical dampening without active computer input. It utilizes compressed gas accumulators and large hydraulic cylinders to physically absorb vertical motion, acting essentially as a massive industrial shock absorber. While less precise than AHC, it prevents sudden cable snapping. Constant Tension Systems provide automated wire rope management, automatically spooling in or paying out wire to maintain a specific tension—critical for towing operations, diver support lines, or subsea deployment.
Offshore lifting dictates severe mechanical redundancy. Heavy-duty cranes frequently utilize a dual-hoist configuration. Main hoists manage extreme heavy lifting using heavy multi-part wire ropes at slower, controlled speeds. Conversely, high-speed whip hoists utilize single-part lines to rapidly handle lighter loads, supply transfers, and delicate personnel transfer operations over open water.
Collision prevention represents essential safety technology. Anti-two block systems serve as necessary limit switches that stop the winch instantly before the hook block physically impacts the boom tip. Without an anti-two block system, the winch could pull the hook straight through the pulleys, snapping the high-tension cable and dropping the payload onto the deck.
Advanced sway control algorithms minimize lateral load swing during rotary movement. These digital systems pair with independent, multi-redundant mechanical brakes that engage instantly upon power loss or emergency stop activation, mechanically locking the payload securely in mid-air to prevent a free-fall event.
Saltwater destroys standard carbon steel in months. When evaluating marine procurement, buyers must verify the use of high-strength, low-alloy (HSLA) steel and marine-grade stainless steel components for vulnerable pins and fittings. The primary defense against galvanic corrosion rests on a rigorous three-layer coating architecture adhering to ISO 12944 standards (C5-M environment). First, thick epoxy primers penetrate and seal the raw steel. Second, zinc-rich intermediate coatings provide sacrificial cathodic protection. Finally, high-gloss polyurethane topcoats create an impenetrable barrier against UV degradation and physical abrasion.
Internal electronics face the constant threat of high humidity and salt fog penetration. Specifications must dictate an IP66 or IP67 ingress protection rating for all electric motors, planetary gearboxes, control panels, and electrical cabinets. High IP certification ensures that powerful water jets, heavy seas, and sub-surface immersion cannot penetrate the housings, preventing short-circuiting and operational dead-in-the-water scenarios during severe storms.

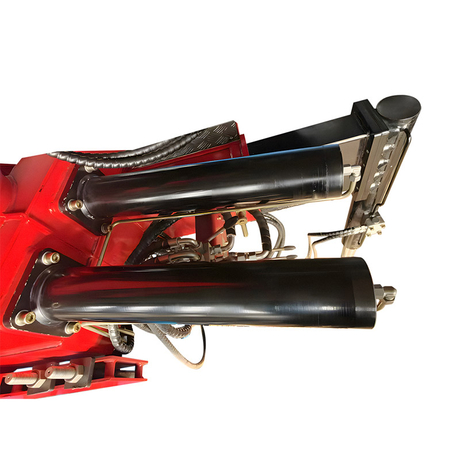

Hydraulic TCO is heavily influenced by rapid seal degradation. Hydraulic cylinders exposed to salt spray build up crystalline salt deposits, which then shred internal rubber seals upon cylinder retraction. Establishing a strict maintenance protocol minimizes these risks.
Daily Visual Inspections: Check all load-bearing hydraulic hoses for micro-abrasions and verify slewing ring lubrication levels before initial power-up.
Monthly Winch Calibration: Test the automatic brake engagement and calibrate the load moment indicator (LMI) against a known test weight to ensure sensor accuracy.
Quarterly Fluid Analysis: Flush hydraulic lines and analyze fluid samples for water or particulate contamination to prevent internal pump scoring.
Annual NDT Inspections: Perform Non-Destructive Testing (NDT) on structural welds and conduct mandatory wire rope replacement based on hours of dynamic load exposure.
Industrial procurement for offshore assets mandates verifiable certification. A crane without proper classification remains uninsurable and illegal to operate in international commercial waters. Global classification societies provide rigorous design audits and physical load testing. Prominent authorities include DNV GL (Det Norske Veritas), ABS (American Bureau of Shipping), Lloyd's Register, and the API (American Petroleum Institute). Securing these approvals verifies structural integrity under extreme dynamic loads, often requiring a 110% to 125% dynamic proof load test prior to sign-off.
Operational compliance requires strict adherence to localized and international labor standards. Compliance with OSHA (Occupational Safety and Health Administration) and international labor standards set by the ILO and IMO ensures baseline crew safety. Verifiable operator certifications from the NCCCO (National Commission for the Certification of Crane Operators) are mandatory for corporate liability mitigation.
Marine operations must also adhere to strict eco-regulations. The Clean Water Act (CWA) demands specialized biodegradable hydraulic fluids and robust containment pans to mitigate oil-leak risks. Coastal operations comply with the Marine Mammal Protection Act (MMPA), requiring heavy noise mitigation and minimizing acoustic footprints and dredging displacement in sensitive marine habitats.
The choice of power generation directly impacts TCO and environmental compliance. Traditional hydraulic systems offer unmatched power density, making them the industry standard for extreme heavy lifting. However, they require intense, ongoing maintenance, suffer from fluid degradation, and pose severe environmental contamination risks in the event of a high-pressure hose rupture.
Fully electric and hybrid drive systems represent the future of port and vessel automation. While they carry a higher upfront capital cost, electric systems featuring Variable Frequency Drives (VFD) drastically reduce diesel emissions, cut ambient noise pollution, and minimize maintenance downtime by eliminating hydraulic fluids entirely. This aligns directly with strict IMO emission targets, modern green-port initiatives, and allows for seamless integration with advanced telemetry for remote-control operations from shore-based command centers.
Marine cranes act as highly specialized systems where mechanical failure carries massive financial, environmental, and human safety consequences. The correct specification bridges the gap between raw lifting power and environmental control, replacing high-risk manual labor with precision engineering capable of conquering dynamic sea states.
Conduct an Operational Zone Risk Assessment: Log the maximum wave heights (Sea State parameters), water depths, and specific port draft restrictions your vessel will encounter to determine the required heave compensation levels.
Audit Vessel Structural Capacity: Verify your deck's payload limits and structural ability to handle peak slewing torque during maximum lateral lifts, ensuring counter-ballasting systems can prevent dangerous vessel listing.
Request Verifiable Documentation: Mandate certified technical drawings, dynamic load test results, and formal Class Society documentation (DNV GL, ABS, or API) from shortlisted manufacturers prior to signing commercial agreements.
A: A knuckle boom crane uses an articulating arm with folding joints, providing excellent maneuverability, precise load control, and a compact storage footprint. A telescopic boom extends linearly via hydraulic cylinders without folding joints, offering maximum horizontal outreach for general cargo handling and ship-to-shore transfers.
A: AHC uses sensors to monitor the vessel's pitch, roll, and heave in real-time. It automatically adjusts the crane's hydraulic winch to pay out or pull in the cable instantly. This keeps the suspended payload completely stable relative to the seabed, regardless of the vessel bouncing on the waves.
A: High-quality marine cranes utilize high-strength, low-alloy steel components and rely on a strict three-layer marine coating system: an epoxy primer for sealing, a zinc-rich intermediate coat for cathodic protection, and a polyurethane topcoat to resist UV rays and salt spray abrasion.
A: Panamax classifications define a port crane's size based on the cargo ships it can service. Standard Panamax cranes reach across 13 container rows. Post Panamax handles up to 16 rows, while Super Post Panamax cranes can reach across 25 or more rows on the largest modern cargo vessels.
A: An anti-two block system is a critical safety mechanism that prevents the hook block (the lower pulley assembly) from colliding with the boom tip (the upper pulley assembly). If they collide while hoisting, the winch can snap the wire rope, causing the payload to fall.
A: When a crane attempts to pull equipment or debris out of the ocean floor mud, the mud creates a vacuum known as seabed suction. This causes a massive, sudden spike in dynamic load tension when the object breaks free, requiring winches engineered to absorb extreme shock loads.
A: An RTG (Rubber-Tired Gantry) runs on heavy-duty rubber tires and operates via diesel or electric cable carriers, allowing it to move freely around a yard. An RMG (Rail-Mounted Gantry) operates on fixed steel tracks, supports heavy data communication for automation, and generally spans wider stacking areas.
