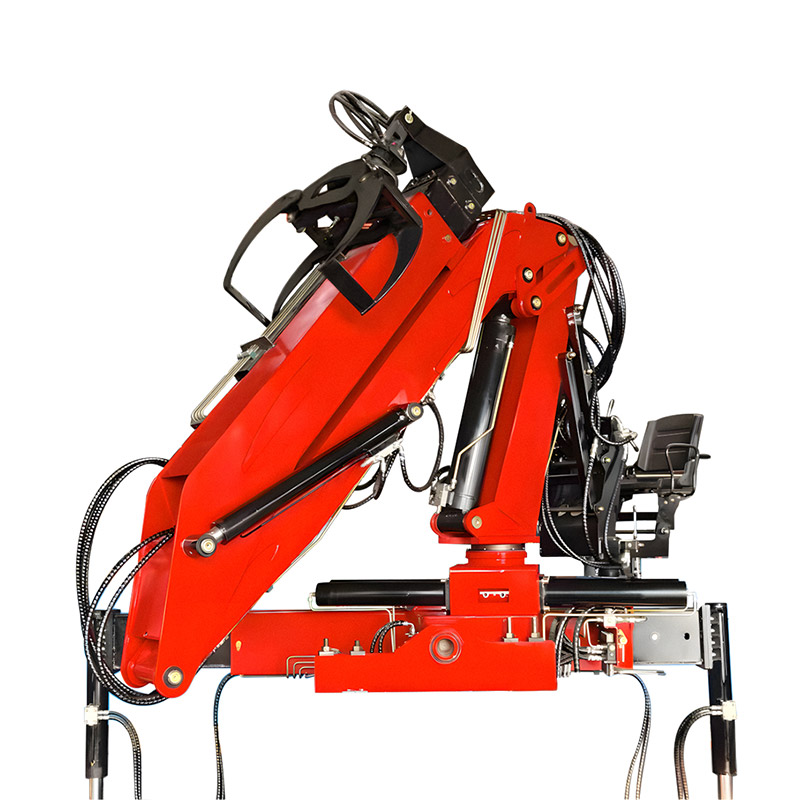

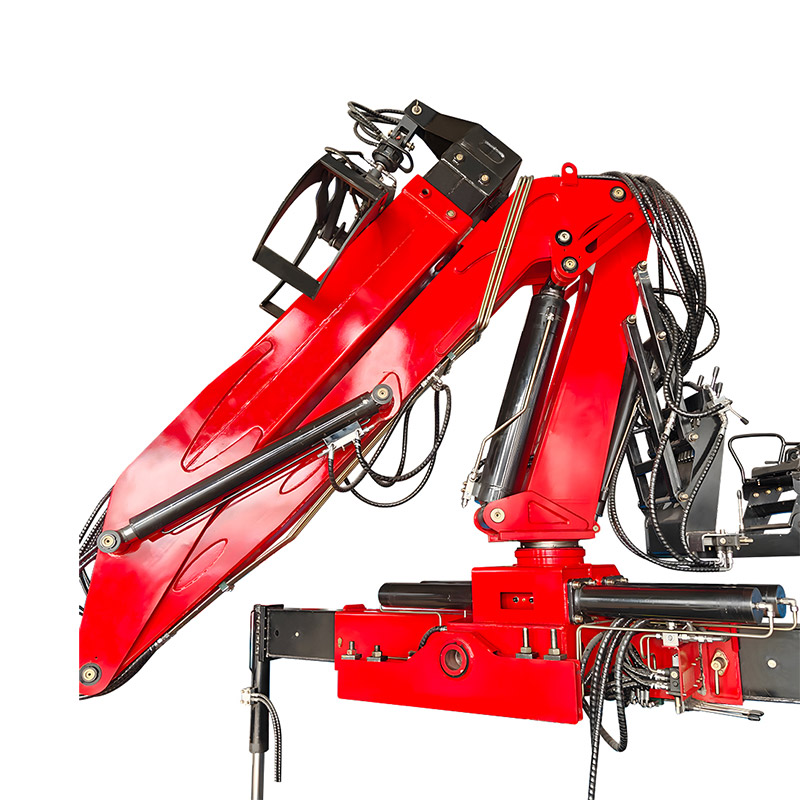

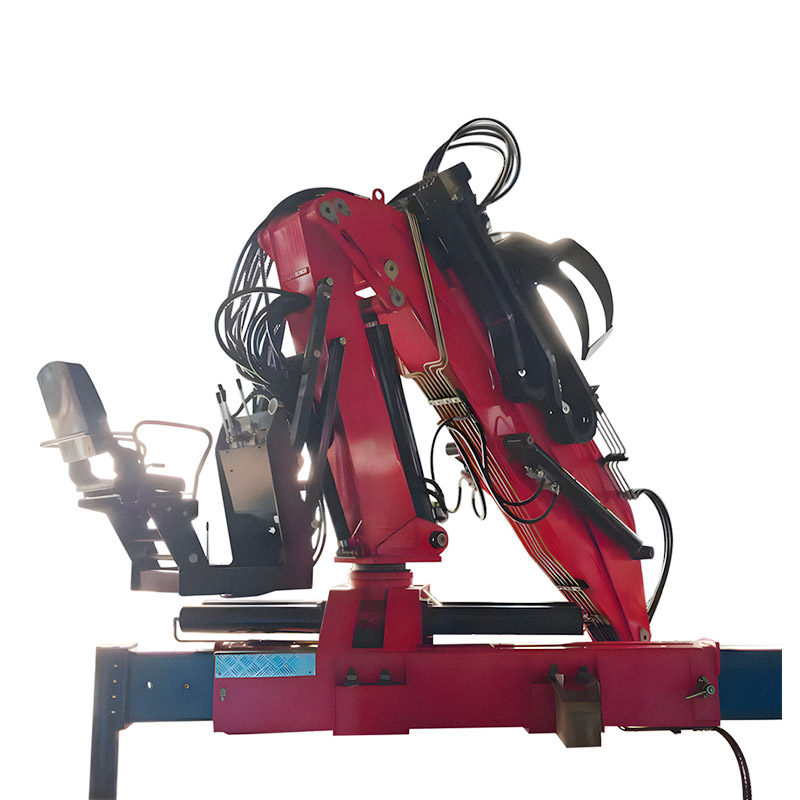

Timber Truck Mounted Crane

Product Advantage

Intelligent Truck-Mounted Crane Solution:

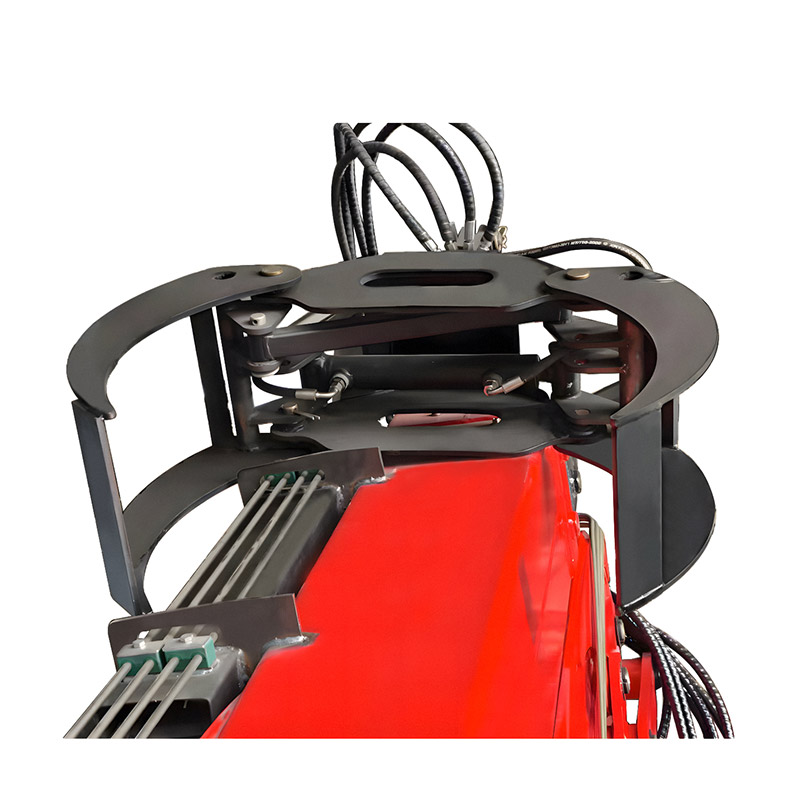

Efficient Timber Handling: 1,000 kg rated capacity with a specialized grapple securely handles logs, boards, and bundled branches, preventing slippage for high-intensity timber operations.

Flexible Operation: 400° rotation and adjustable working radius reduce repositioning, ideal for narrow factory aisles or forest paths, improving coverage and efficiency.

Stable and Safe: Optimized weight distribution, 28 MPa hydraulic system, and reliable outriggers ensure stable lifting on uneven ground and minimize tipping risks.

Easy Operation: Supports manual and wireless remote control, keeping operators safe and simplifying handling in tight spaces.

Versatile and Compact: Modular quick-mount design fits various medium-duty truck chassis, with a compact folded size for easy maneuvering, suitable for loading, stacking, and short-distance timber transport.

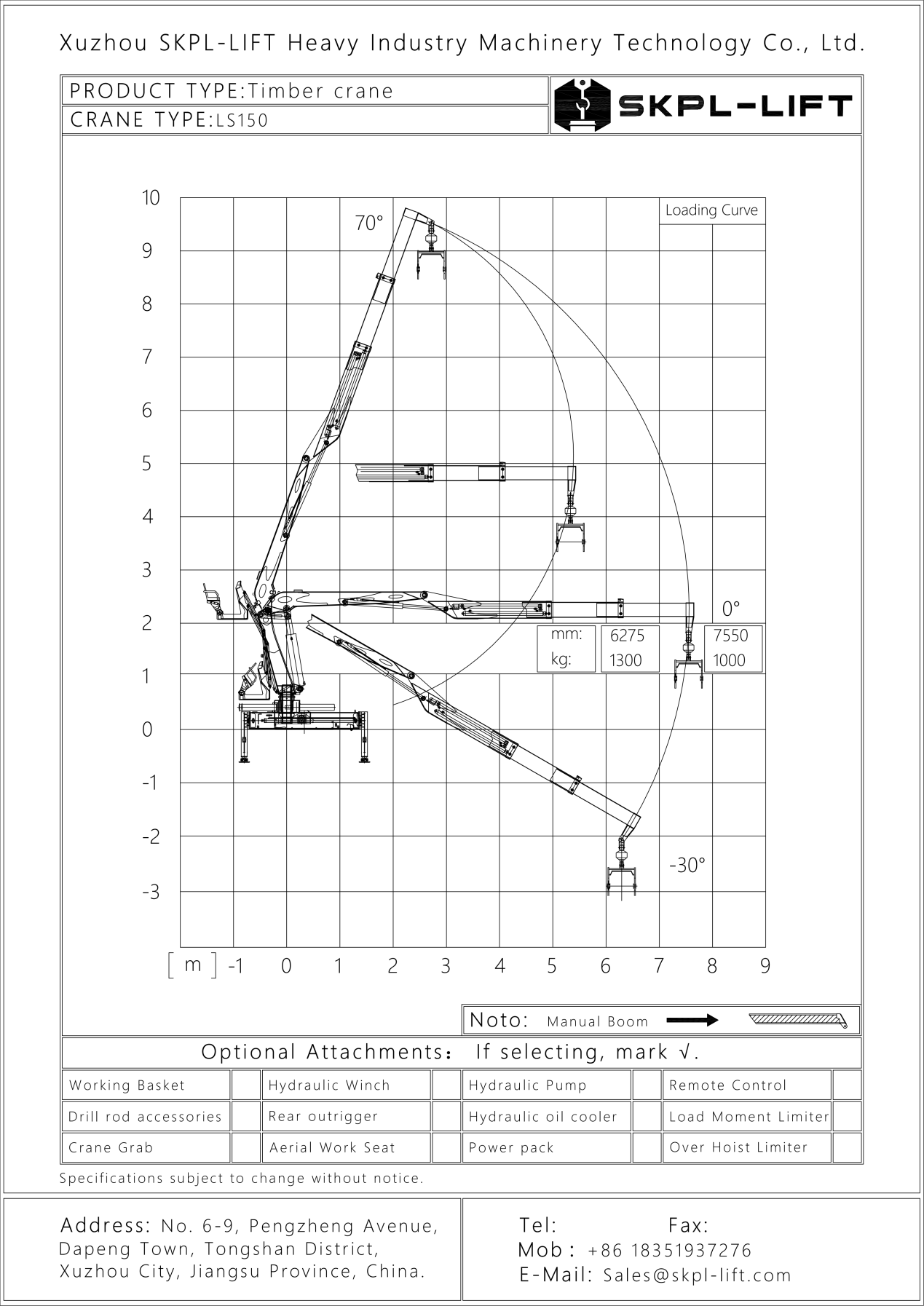

Technical Parameters

Application Scenarios of 1000 KG Knuckle Boom Timber Crane

Timber Harvesting & Transport: Suitable for medium logs and bundled branches in hilly or mountainous forests, capable of operating on narrow forest paths and rough terrain without large auxiliary equipment for on-site loading and short-distance transport.

Wood Processing Plant Handling: Efficiently handles raw material unloading, board stacking, and intra-plant transfer, streamlining production flow, reducing labor, and improving operational efficiency.

Medium-Scale Logistics & Storage: Ideal for unloading, sorting, stacking, and loading timber in logistics hubs or building material storage areas, enhancing site turnover and space utilization.

Small-Scale Construction & Infrastructure: Handles formwork timber, support wood, and other materials in rural construction or small municipal projects, leveraging vehicle mobility for flexible on-site operations.

Installation & Chassis Compatibility:
The timber grapple crane can be mounted on medium-duty truck chassis, supporting rear or mid-mounted configurations. It is compatible with chassis having a GVW of 8 tons or more, typically configured as 6×4.

Ideal for forest operation vehicles, in-plant transport trucks at wood processing facilities, and medium-duty logistics vehicles, enabling integrated “transport + loading/unloading” operations.

FAQ

Unsure which model to choose?
No problem. Our professional engineering team is always online to help. By understanding your timber operation scenarios, typical wood sizes, and workload, we can provide a tailored timber grapple crane selection solution.

What are your payment terms?
We support 30% deposit via T/T (telegraphic transfer), MIC platform payment, and L/C (sight letter of credit). For long-term customers, we offer more favorable delivery terms.

What is your delivery time?
Typically, delivery is within 30 working days after receiving the deposit. Standard products are usually in stock and can be delivered within 15 working days. Customized products may require more time depending on your order specifications.

Difference between electromagnetic proportional valve wireless control and standard remote control:
Standard remote control only allows on/off gear control. Electromagnetic proportional valve wireless control outputs continuous proportional signals, enabling stepless boom movement. It is designed with electromagnetic interference protection, preventing interference with other crane electronic components and minimizing disruption from site equipment.

Routine maintenance cycle and tasks:
Routine maintenance is divided into monthly and yearly schedules:

Monthly: Check outrigger support, remote control signal stability, and hydraulic oil level.

Yearly: Inspect boom structural wear, proportional valve control accuracy, and overall equipment performance.
