Securing heavy lifting capabilities without sacrificing highway mobility requires equipment that bridges the gap between commercial transport and dedicated mobile cranes. Over-specifying lifting equipment results in unnecessary transport logistics, complex permitting delays, and wasted capital. Under-specifying leads to load chart violations, site delays, and severe safety hazards. You need a machine that delivers precise lifting power while remaining completely road-legal. Evaluating a Boom Truck Mounted Crane requires a precise understanding of commercial chassis limitations. You must analyze high-pressure hydraulic system capacities and duty cycles. You also need to weigh the operational trade-offs between different boom configurations. This guide breaks down the technical anatomy, boom variations, and procurement criteria to help you select the right hydraulic lifting solution for your job site.
A boom truck mounted crane integrates a hydraulic lifting mechanism onto a standard commercial truck chassis, enabling high-speed highway travel and immediate job site readiness.
Procurement decisions hinge on selecting between telescopic (straight) booms for maximum reach and articulating (knuckle) booms for tight-radius material handling and self-loading capabilities.
Unlike dedicated hydraulic truck cranes, boom trucks often retain payload capacity on the flatbed, making them dual-purpose vehicles for both transport and lifting.
The commercial chassis structure provides significant room for customization, allowing operators to upfit the vehicle with specialized flatbeds, toolboxes, and rigging storage.
Operational viability depends heavily on matching the Gross Vehicle Weight Rating (GVWR) with the crane's hydraulic lifting capacity and local Department of Transportation (DOT) compliance requirements.
Understanding the structural components helps you evaluate equipment capabilities. You must determine whether the machine can meet specific site access, rotation, and lifting requirements. The anatomy of a Boom Truck Mounted Crane consists of several integrated systems working together under extreme mechanical stress. Each component plays a distinct role in maintaining stability and generating lifting force.
The foundation relies on a standard commercial cab and chassis. Brands like Peterbilt, Freightliner, Kenworth, and Ford provide the necessary road-legal mobility. The chassis frame strength directly dictates the maximum allowable weight of the crane attachment. Engineers measure this strength using Resisting Bending Moment (RBM). A higher RBM means the frame can handle heavier dynamic loads without twisting or fracturing. Most heavy-duty crane applications require a double frame rail setup to achieve the necessary RBM.
Axle configurations determine how the load weight distributes across the road surface. A heavier crane requires a reinforced frame and multiple rear axles to maintain stability. Tandem or tridem rear axles help the vehicle meet federal bridge laws. They also prevent the truck from sinking into soft job site terrain. The Gross Axle Weight Rating (GAWR) must exceed the combined weight of the chassis, the crane, and the intended payload. You will often see pusher axles or tag axles added to distribute the weight legally across more highway surface area.
Power generation starts at the Power Take-Off (PTO) unit. The PTO mounts directly to the truck's transmission. It transfers rotational engine power to the hydraulic pump. Operators engage the PTO from the cab before beginning any lifting operations. Hot-shift PTOs allow engagement without clutching, improving operational efficiency and reducing wear on the transmission gears.
The hydraulic pump pressurizes hydraulic fluid to drive boom extension and winch operation under heavy loads. High-pressure fluid acts as the lifeblood of the lifting mechanism. It travels through a complex network of steel lines and reinforced rubber hoses. Continuous use generates intense heat within this fluid. Robust hydraulic cooling systems manage this heat. Without adequate cooling, the fluid degrades rapidly, causing pump cavitation and complete system failure. We typically see piston pumps used for high-demand applications because they handle higher pressures and variable flow rates better than standard gear pumps.
The turret serves as the massive steel pivot point for the entire boom structure. It connects directly to the slewing ring, which houses the rotational mechanics. A hydraulic motor drives a planetary gear system to rotate the turret. This system allows the boom to lift, swing, and place loads with millimeter precision. The slewing bearing must withstand massive overturning moments when the boom is fully extended with a heavy load.
Some models feature continuous 360-degree rotation. They utilize a hydraulic swivel that prevents hoses from twisting. Others use non-continuous rotation limited to a 370-degree arc. Continuous rotation provides maximum load placement flexibility on restricted job sites. Non-continuous systems require careful truck positioning before initiating a lift to ensure the target falls within the swing radius.
A commercial chassis alone cannot support heavy side-loads. The truck suspension would compress, causing the vehicle to tip over immediately. Hydraulic outriggers expand the machine's footprint and shift the center of gravity during lifts. They bypass the truck's suspension, transferring the load directly to the ground.
Outrigger Type | Deployment Mechanism | Best Use Case | Footprint Size |
|---|---|---|---|
A-Frame | Extends diagonally downward | Lighter loads, tight urban streets | Small |
H-Style (Out-and-Down) | Pushes horizontally, then drops vertically | Mid-range to heavy lifting | Large |
Radial | Swings outward from a pivot point | Specialized rear-mount applications | Medium |
Buyers must align the boom architecture with their primary operational use case. The choice between a stiff boom and a knuckle boom dictates the machine's capabilities on the job site. Each design offers distinct mechanical advantages and specific operational limitations.
Telescopic booms utilize a linear extension mechanism. Internal hydraulic cylinders push nested steel sections outward to achieve maximum height. Heavy-duty synthetic wear pads guide these steel sections. A hydraulic winch mounted at the base of the boom raises and lowers the load via a heavy wire rope. The operator controls the winch speed and boom angle to position the load.
Primary use cases include:
High-clearance lifts over existing structures and power lines.
Roofing material delivery to multi-story commercial buildings.
Steel erection and structural framing for new construction.
Utility pole installation and deep-hole maintenance.
Setting HVAC units on commercial rooftops.
The primary trade-off involves space and payload. Telescopic booms require significant overhead clearance to operate safely. They generally have a larger swing radius, making them difficult to use inside buildings. The long, straight boom rests over the cab or flatbed during transport. This configuration leaves less room for hauling payload on the chassis. You also have to manage wire rope maintenance, spooling issues, and anti-two block system checks daily.

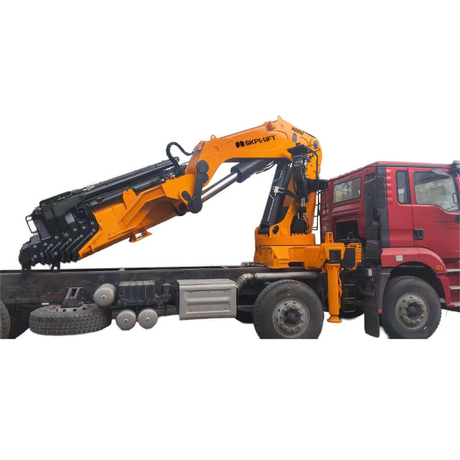

Articulating booms feature a hinged, multi-segment design. The boom folds compactly behind the cab when not in use. This configuration maximizes available deck space. Instead of a winch and wire rope, knuckle booms typically lift loads using a hook attached directly to the boom tip. The main lift cylinder and outer boom cylinder work together to articulate the arm like a human finger.
Primary use cases include:
Navigating tight urban job sites with severe overhead clearance restrictions.
Precise material placement directly through windows or narrow doorways.
Heavy equipment delivery and underground vault positioning.
Self-loading and unloading logistics without requiring secondary equipment.
Handling precast concrete forms and barriers.
The trade-off centers on vertical reach. Articulating models offer shorter maximum vertical reach compared to telescopic models. However, they provide superior payload retention. Their unmatched versatility allows operators to load freight directly onto their own bed. You can transport the material to the site and place it at the destination using a single vehicle. Many modern knuckle booms also feature over-center capabilities, allowing the outer boom to bend past 180 degrees for extreme precision in tight spaces.
Differentiating between a commercial boom truck and a purpose-built mobile crane helps optimize capital expenditure. You must match the equipment to the scale of your operations. Over-investing in a massive crane destroys project margins. Under-investing limits your bidding capabilities.
A commercial chassis travels at normal highway speeds. It navigates standard traffic without requiring special routing. The driver can easily maneuver through urban streets and tight intersections. A dedicated hydraulic truck crane utilizes a specialized, heavier carrier. These massive machines often require wide-load permits and escort vehicles. They face restricted travel routes due to bridge weight limits. Boom trucks offer superior mobility for companies handling multiple jobs in a single day. You can finish a lift on the north side of town and drive to the south side at 65 mph without calling the DOT for a route survey.
Capacity differences define the operational limits of each machine. Boom trucks typically handle 10 to 60 tons. Dedicated hydraulic truck cranes scale from 40 to over 100 tons. The center of gravity on a commercial chassis caps the maximum safe working load. Structural limits of the standard truck frame prevent it from matching the raw lifting power of a purpose-built crane carrier. Always consult the specific load chart, as capacity drops rapidly as the boom radius increases. A 20-ton boom truck might only lift 2 tons when the boom is fully extended horizontally.
Rapid deployment is a massive advantage for commercial chassis cranes. Operators can pull onto a site, deploy outriggers, and begin lifting within minutes. This makes them ideal for short-duration lifts across different locations. Larger hydraulic cranes require longer setup times. They often need extensive cribbing, counterweight installation, and a massive operational footprint. If your job requires quick, repetitive lifts, the boom truck wins easily.
Evaluation Metric | Boom Truck Mounted Crane | Hydraulic Truck Crane |
|---|---|---|
Chassis Architecture | Standard Commercial (Ford, Peterbilt, Kenworth) | Purpose-built Crane Carrier |
Highway Mobility | High speed, standard routing, no escorts | Slower, often requires permits and escorts |
Lift Capacity Range | 10 to 60 Tons | 40 to 100+ Tons |
Setup Time | Minutes (Rapid outrigger deployment) | Hours (Counterweights, extensive cribbing) |
Payload Capacity | High (Can haul its own freight on a flatbed) | None (Dedicated lifting only) |
Operator Cab | Often operates from ground or open seat | Enclosed, climate-controlled upper cab |
Certain metrics and specifications dictate the long-term return on investment of the equipment. You must evaluate these technical criteria before making a procurement decision. Ignoring these factors leads to structural failures and regulatory fines.
You must calculate the necessary Gross Vehicle Weight Rating (GVWR). The chassis must support the crane's dead weight and the full hydraulic fluid reservoir. It must also support the intended flatbed payload. Exceeding legal axle limits results in severe DOT fines and accelerated chassis wear. Proper GVWR matching ensures the vehicle remains legal and structurally sound under full load. Federal regulations typically cap single axles at 20,000 pounds and tandem axles at 34,000 pounds. You must calculate the weight distribution to ensure the steer axle does not exceed its rating, usually around 12,000 to 20,000 pounds depending on the chassis spec. You must also factor in the Federal Bridge Gross Weight Formula if you plan to operate on interstate highways. This formula dictates the maximum weight allowed based on the number of axles and the distance between them.
Evaluate hydraulic pump flow rates measured in Gallons Per Minute (GPM). Review the operating pressures measured in Pounds per Square Inch (PSI). These metrics must match the required duty cycle of the job site. High-demand applications require robust piston pumps and high-capacity fluid reservoirs. Undersized gear pumps will overheat during continuous operation. This heat degrades the oil viscosity, leading to pump cavitation and extended site downtime. Look for systems with integrated oil coolers if you plan to run the crane continuously for hours at a time.
Assess the available frame space for custom upfits. A bare chassis offers a blank canvas for operational efficiency. You can tailor the truck bed to your specific industry requirements.
Consider these upfitting options:
Reinforced steel flatbeds for hauling heavy construction materials and concrete barriers.
Specialized rigging compartments to organize slings, shackles, and spreader bars.
Custom weather-proof toolboxes that protect sensitive equipment from rain and theft.
Integrated flush-mount tie-down points for securing irregular loads during transport.
Custom headache racks to protect the cab from shifting loads.
Underbody dunnage racks for storing outrigger pads and cribbing blocks.
Modern lifting requires advanced safety technology. Assess the necessity of Load Moment Indicators (LMI). These onboard computers prevent operators from exceeding the load chart by locking out hydraulic functions when capacity is reached. Anti-two block systems stop the winch before the hook block collides with the boom tip, preventing wire rope snaps. Remote control capabilities improve precision lifting. They allow the operator to stand near the load for maximum visibility. These systems ensure strict OSHA compliance and protect site personnel from catastrophic accidents. Radio remotes with haptic feedback provide the operator with physical alerts when approaching load limits.
Identifying potential roadblocks in adoption and daily operation prevents costly downtime. You must address these risks proactively before deploying the equipment to an active job site.
Operating heavy commercial vehicles requires specific licensing. This presents a significant personnel risk. If your drivers lack the proper credentials, the truck cannot legally leave the yard.
Mitigation: Factor in the costs and timelines for operator training. Drivers usually need a Class A or Class B Commercial Driver’s License (CDL), depending on the vehicle's weight and air brake configuration. Crane operators often require National Commission for the Certification of Crane Operators (NCCCO) certifications. Ensure your workforce meets these legal requirements before the equipment arrives. Schedule training months in advance to avoid operational bottlenecks.
Heavy lifting generates massive ground bearing pressure. Outriggers concentrate the entire weight of the truck and the load into four small contact points. Outriggers can easily sink into uncompacted soil, leading to catastrophic tip-overs.
Mitigation: Implement strict pre-lift site assessments. Mandate the use of appropriately sized outrigger pads. These pads distribute the concentrated load over a much wider area, reducing the pounds per square foot applied to the soil. Use engineered synthetic outrigger pads or hardwood cribbing to achieve the necessary ground bearing pressure reduction. Never deploy outriggers on fresh fill dirt, near deep excavations, or over unmarked underground utilities without proper ground reinforcement and engineering approval.
High-pressure hydraulic systems are highly vulnerable to particulate contamination. Even microscopic debris or water ingress can cause catastrophic pump or cylinder failure. A single blown hose can shut down a project for days.
Mitigation: Establish strict preventative maintenance schedules. Conduct regular fluid sampling to monitor ISO cleanliness codes and contamination levels. Target an ISO 4406 cleanliness code of 18/16/13 or better for high-pressure proportional valve systems. Enforce mandatory return-line filter replacements at manufacturer-specified intervals. Perform daily high-pressure hose inspections to identify leaks, bulges, or abrasions before they burst under load. Keep the breather caps clean to prevent atmospheric dust from entering the reservoir.
Review specific manufacturer load charts against your heaviest routine lifts to ensure adequate capacity at maximum radius.
Calculate the required GVWR to ensure local road compliance and sufficient payload capacity for your daily operations.
Schedule a technical demonstration to evaluate hydraulic control responsiveness and slewing precision under a test load.
Audit your current job sites to determine typical overhead clearance limitations and outrigger deployment space.
Verify the availability of local service centers for hydraulic maintenance, annual boom inspections, and replacement parts.
A: A commercial truck chassis equipped with a hydraulic crane and outriggers. It blends road mobility with serious lifting muscle. It allows operators to drive to a site at highway speeds and begin lifting operations immediately without requiring specialized transport trailers.
A: Depending on the chassis and boom configuration, capacities typically range from 10 tons to 60 tons. Actual lifting capacity decreases significantly as the boom radius extends away from the center of the truck. Always consult the specific load chart before lifting.
A: Yes, in most jurisdictions, if the Gross Vehicle Weight Rating (GVWR) exceeds 26,000 pounds, a Commercial Driver's License (CDL) is required. Vehicles equipped with air brakes also require specific CDL endorsements regardless of the total weight.
A: A boom truck uses a standard commercial truck chassis and can often carry a payload on its flatbed. A mobile crane uses a purpose-built, heavier carrier designed exclusively for lifting operations and cannot haul freight.
A: The truck's engine powers a hydraulic pump via a Power Take-Off (PTO). This pump pressurizes hydraulic fluid to extend cylinders, rotate the boom via the slewing ring, and operate the winch under extreme pressure.
A: Yes, many boom trucks retain flatbed space. This allows them to self-load materials, transport them to the site, and lift them into place using a single vehicle. Articulating knuckle booms excel at this specific task.
