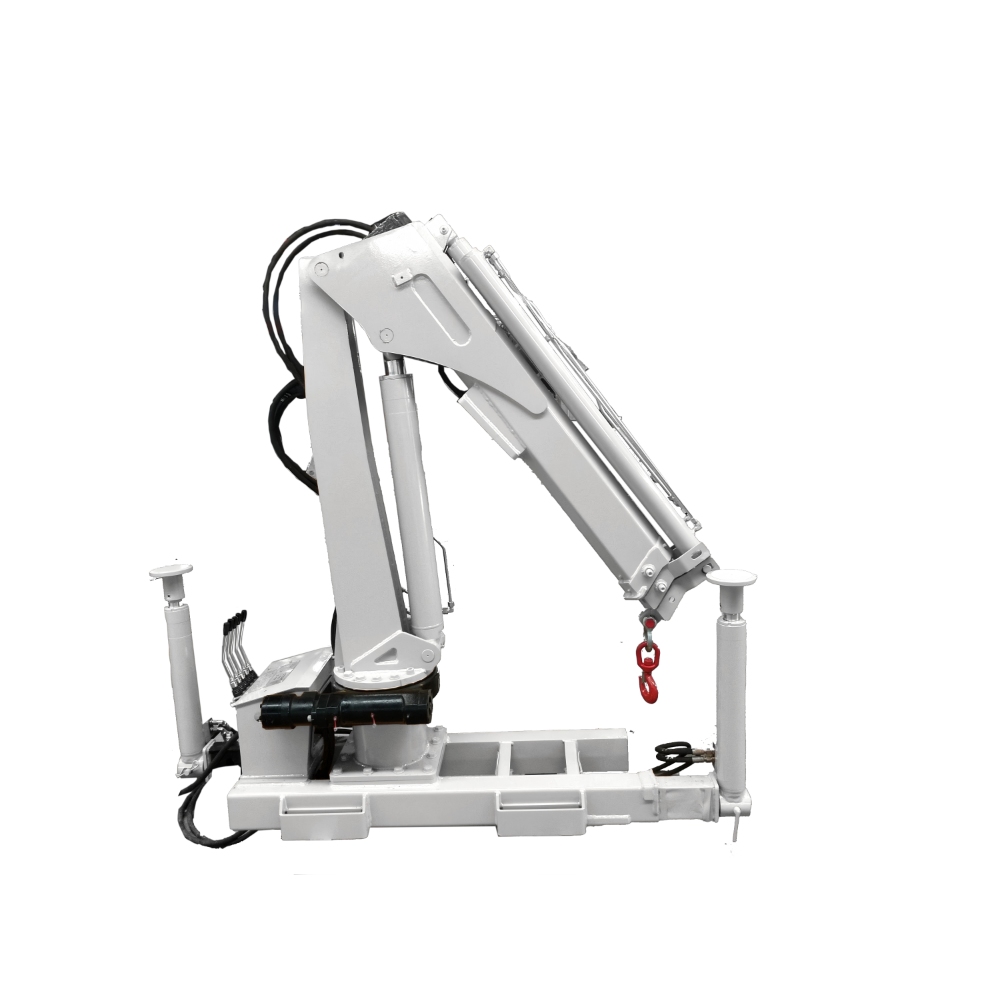

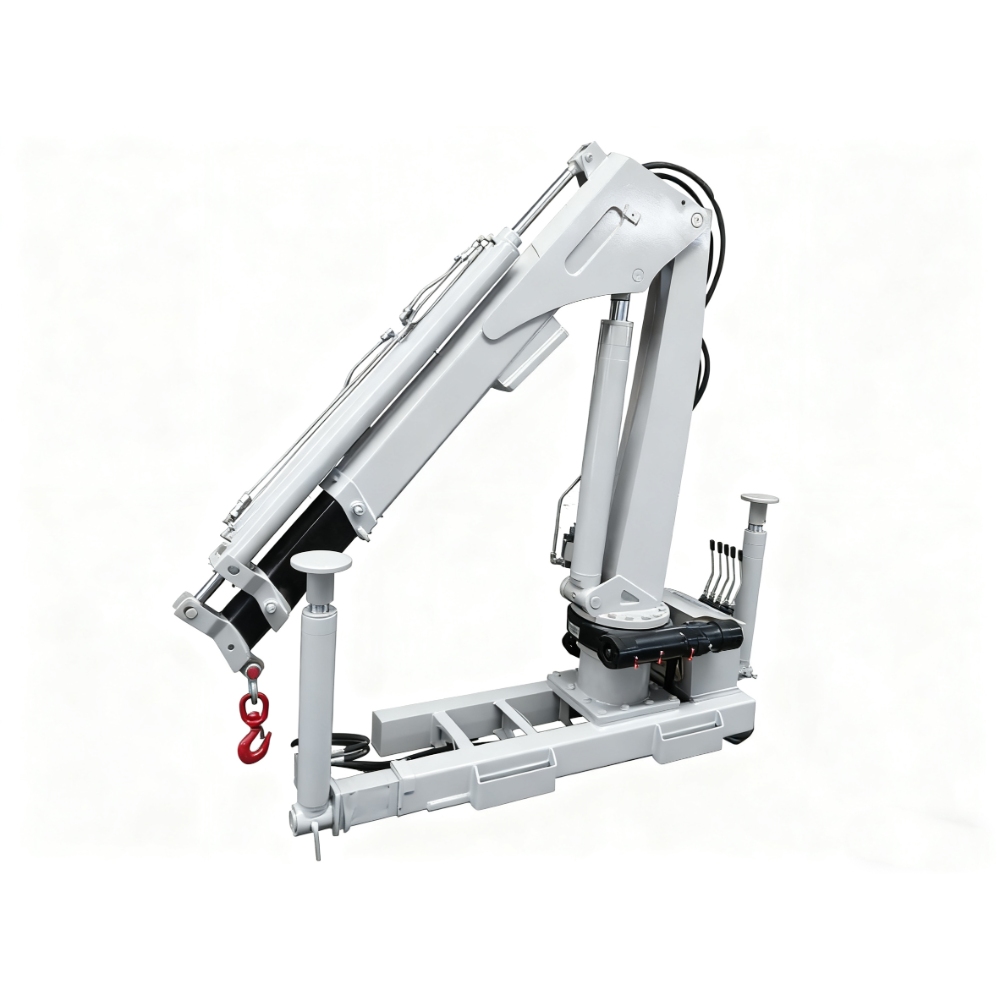

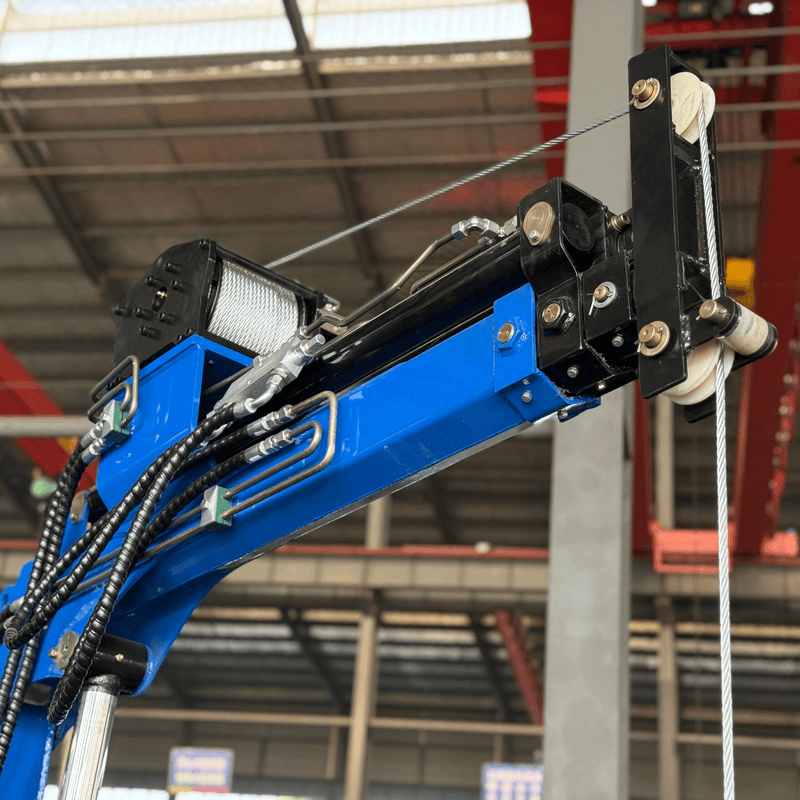

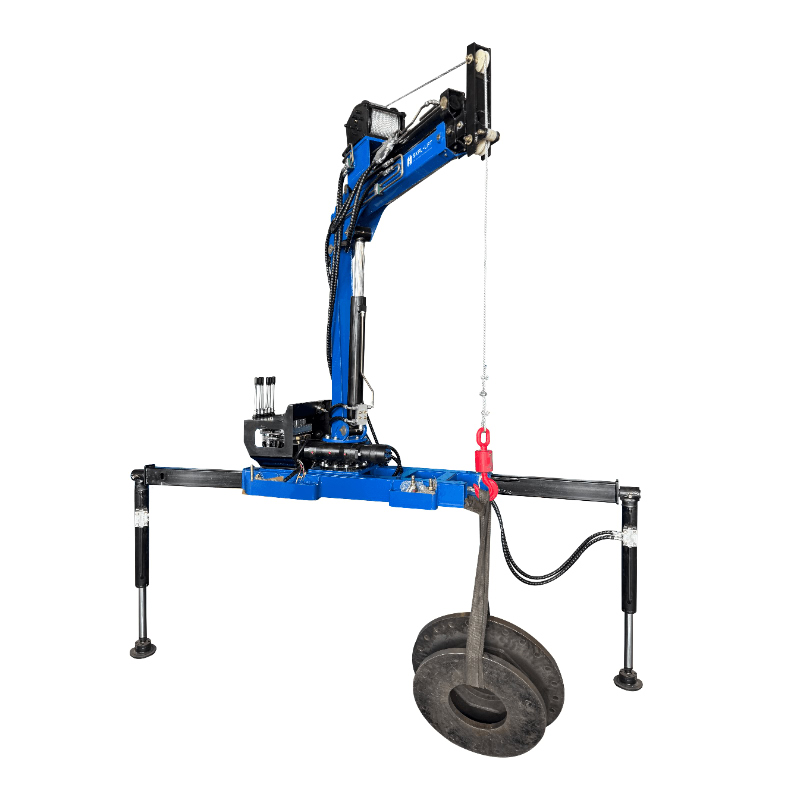

The SKPL-LIFT 800 kg Pickup Truck Crane is a compact and versatile lifting solution designed for installation on small trucks or pickups. Its two-section telescopic knuckle boom features a high-strength steel interface, improving bending resistance and operational safety. The crane is equipped with four stabilizing outriggers for stability and an integrated lifting winch for smooth, efficient operation. The compact boom head reduces wear and extends system lifespan, while the friction brake and disc spring mechanism ensure quiet and reliable performance. Ideal for light construction, small-scale logistics, urban transport, and on-site material handling, it provides a safe, practical, and cost-effective solution for lifting light loads.
| Quantity: | |
|---|---|
SQ08Z
SKPL-LIFT

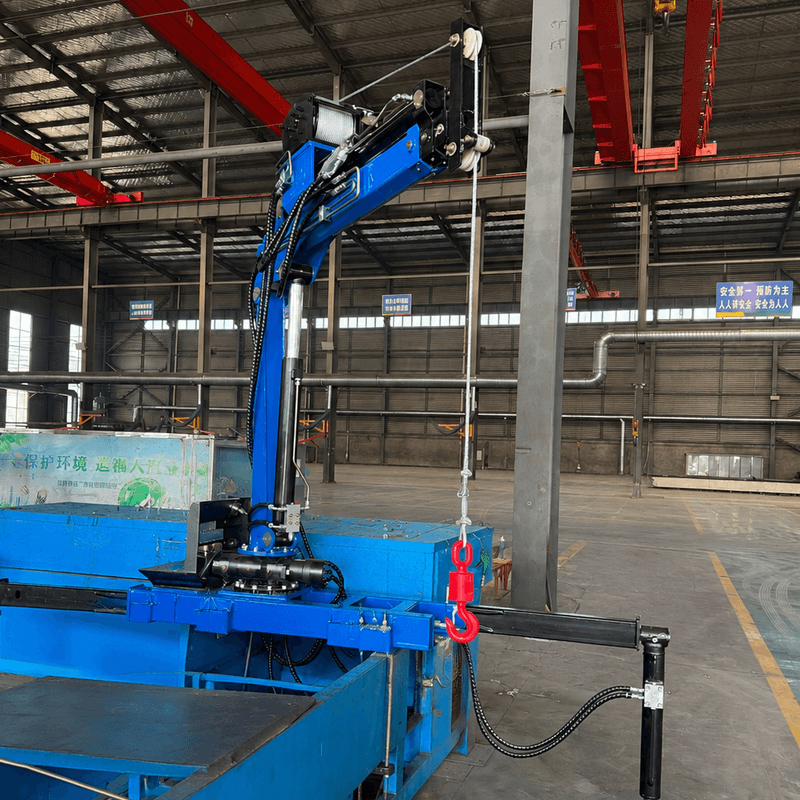

The SKPL-LIFT 800 kg Pickup Crane With Outriggers is a compact and versatile lifting solution designed for installation on small trucks or pickups. Its two-section telescopic knuckle boom features a high-strength steel interface, improving bending resistance and operational safety. The crane is equipped with four stabilizing outriggers for stability and an integrated lifting winch for smooth, efficient operation. The compact boom head reduces wear and extends system lifespan, while the friction brake and disc spring mechanism ensure quiet and reliable performance. Ideal for light construction, small-scale logistics, urban transport, and on-site material handling, it provides a safe, practical, and cost-effective solution for lifting light loads.
The precision linkage design maximizes lifting torque for loads up to 800 kg. The compact crane structure does not compromise strength, ensuring safe and efficient operations for lifting, positioning, or material handling in logistics, light construction, or agricultural applications.
Supporting optional high-capacity winches, hydraulic clamps, and torque limiters, this crane adapts to complex lifting tasks. Advanced safety features, paired with six or more heavy-duty hydraulic outriggers, ensure operator protection and load stability on uneven terrain.
The multi-section telescopic knuckle boom offers extended outreach and precise control, operating seamlessly in both open construction sites and constrained industrial areas. Its 360° slewing angle enhances flexibility, even when handling oversized or irregular cargo.
Equipped with an advanced hydraulic system, friction brake, and disc spring mechanism, the SQ38ZB7+1 delivers quiet, long-lasting performance. Minimal maintenance needs reduce downtime, making it a cost-effective solution for long-term industrial use.
Max. Lifting Capacity: 800 Kg, ideal for heavy industrial loads.
Max. Lifting Moment: 1 Ton.m, ensuring strong load-handling torque.

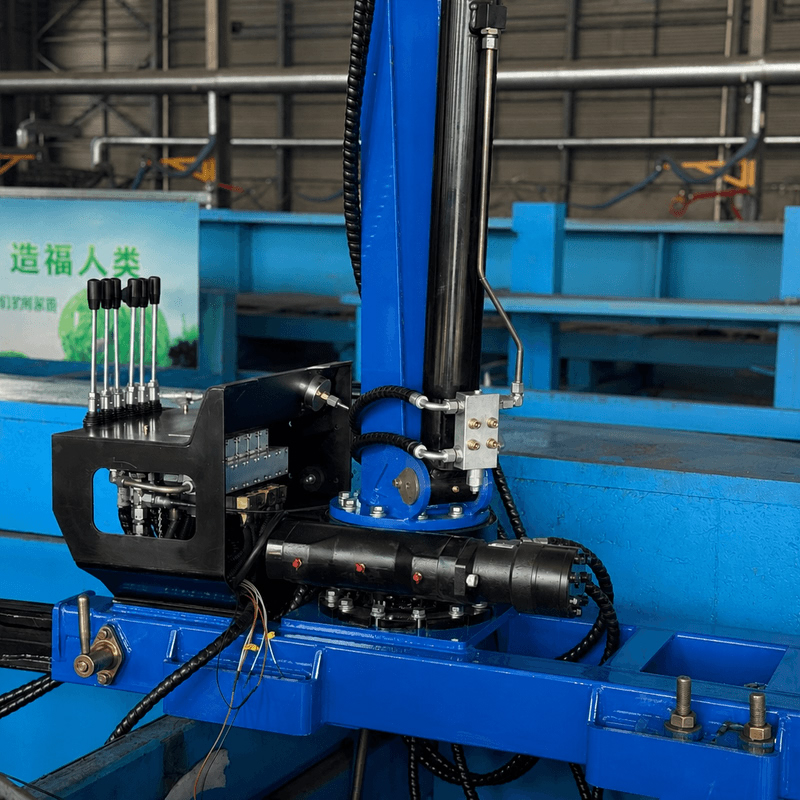

Slewing Angle: 360°, enabling full-range operation without position adjustments.
Hydraulic System Pressure: 16 Mpa, providing stable power for heavy lifts.
Hydraulic System Flow: 8 L/min, ensuring smooth and responsive boom movements.
Recommended Power: 2.5 Kw, matching performance needs with energy efficiency.
Installation Space: 500 mm, compatible with heavy-duty truck chassis.
Crane Self Weight: 360 Kg, balancing stability and mobility.
Oil Tank Capacity: 15 L, supporting continuous long-hour operations.
Perfect for individuals who modify their own pickups or small trucks for light lifting tasks. The crane adds versatility for transporting tools, equipment, or medium-sized cargo safely and efficiently.
Farmers and small-scale operators can use the crane to lift feed, fertilizers, irrigation tools, or harvested produce. Its lightweight and compact design allow operation in narrow paths or uneven terrain where larger machinery cannot reach.

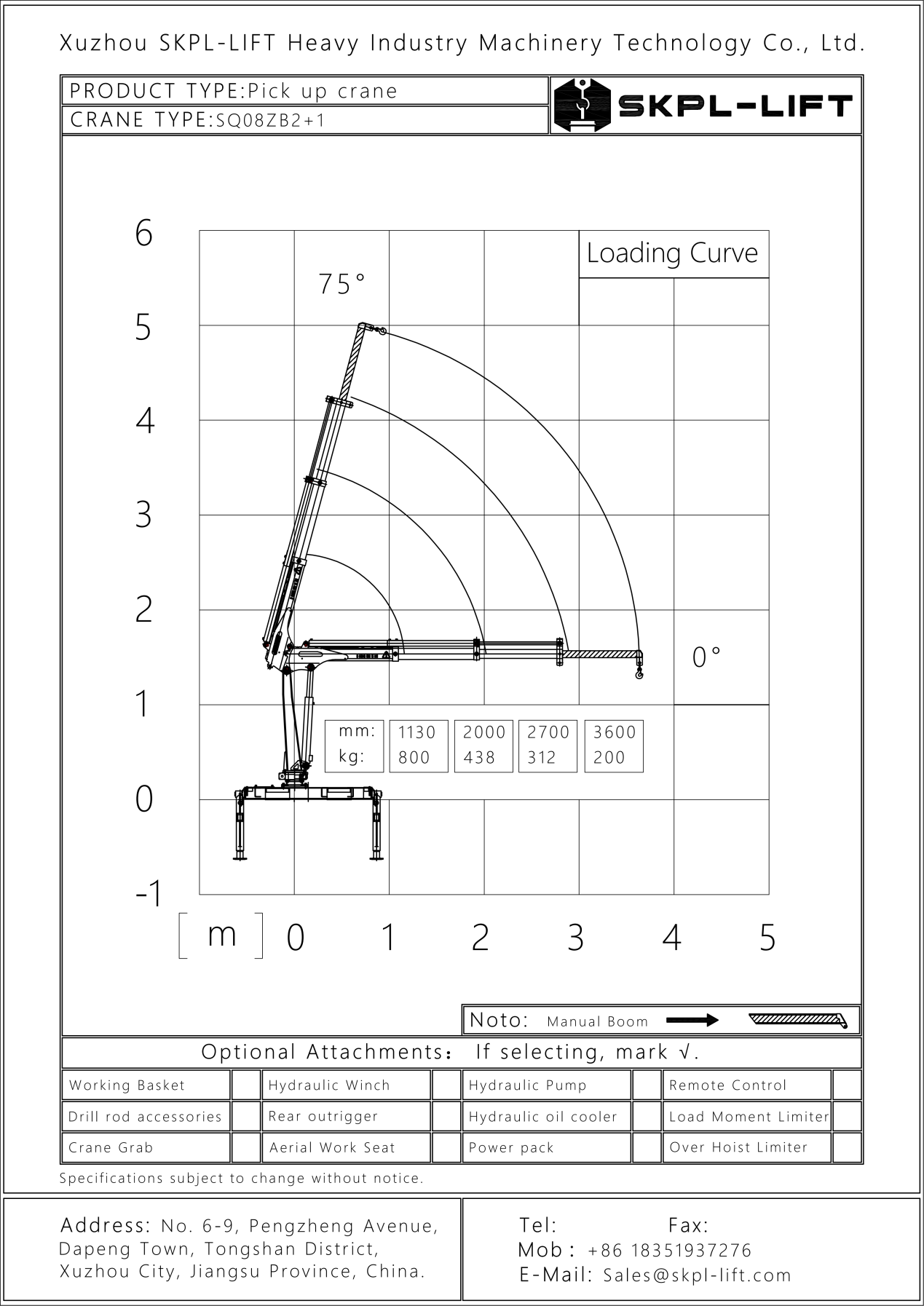

Technical Parameter | |
Installation space | 500 mm |
Model name | SQ08ZB2+1 |
Max.Lifting Capacity | 800 Kg |
Max.Lifting Moment | 1 Ton.m |
Hydraulic System Pressure | 16 Mpa |
Hydraulic System Flow | 8 L/min |
Slewing Angle | 330° |
Reconmmend Power | 2.5 Kw |
Oil Tank Capacity | 15 L |
Crane Self Weight | 360 Kg |
