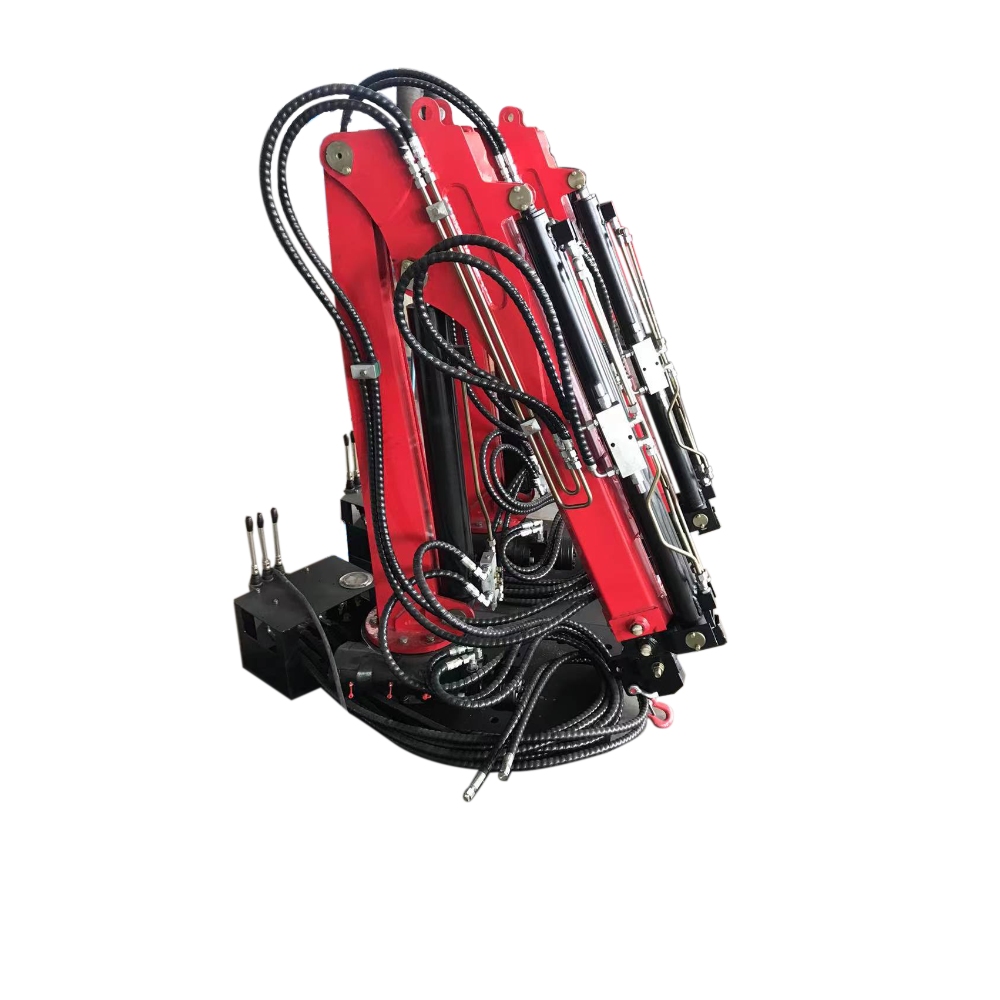

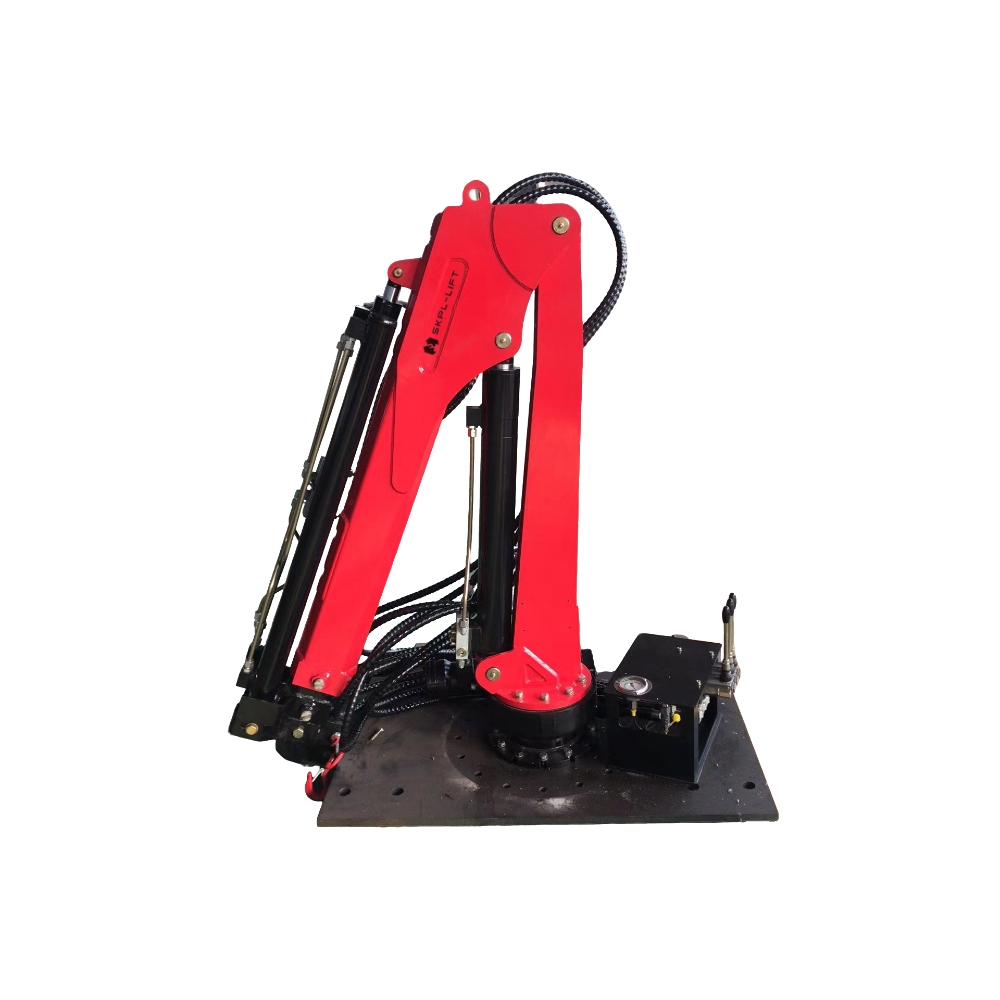

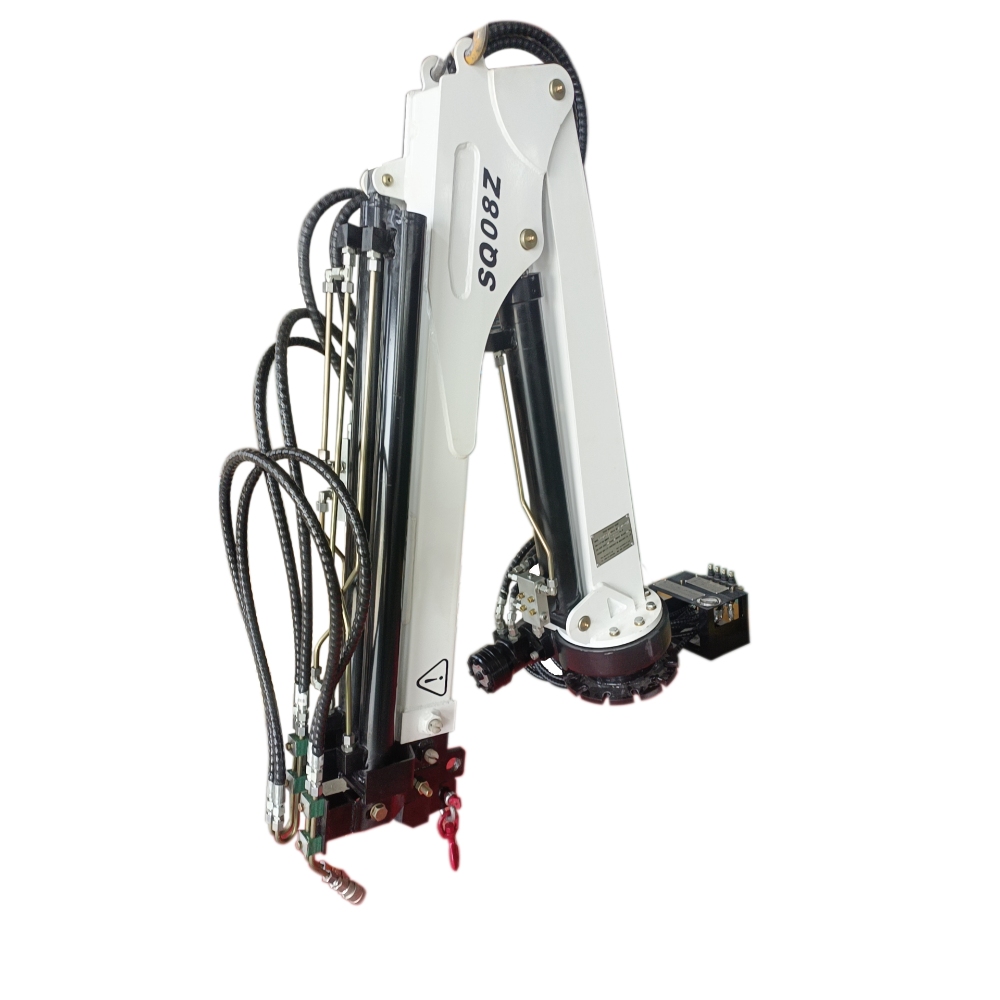

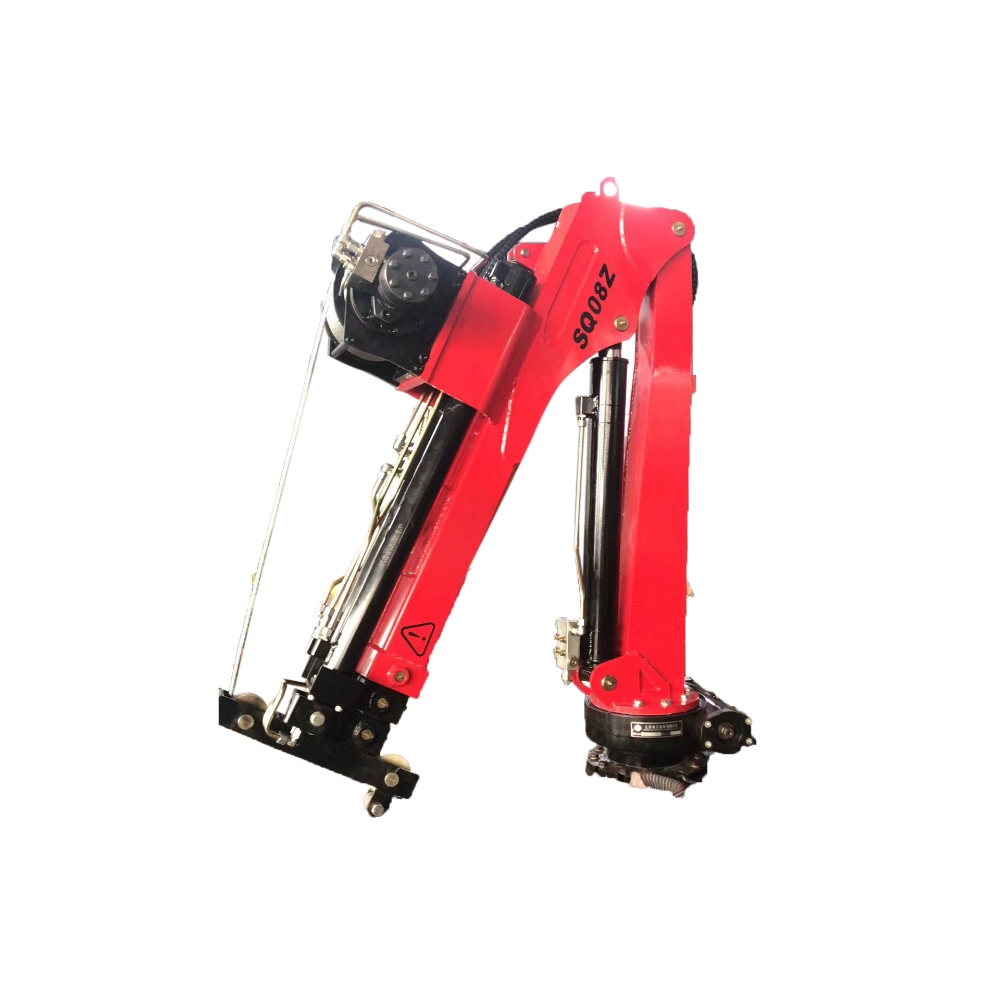

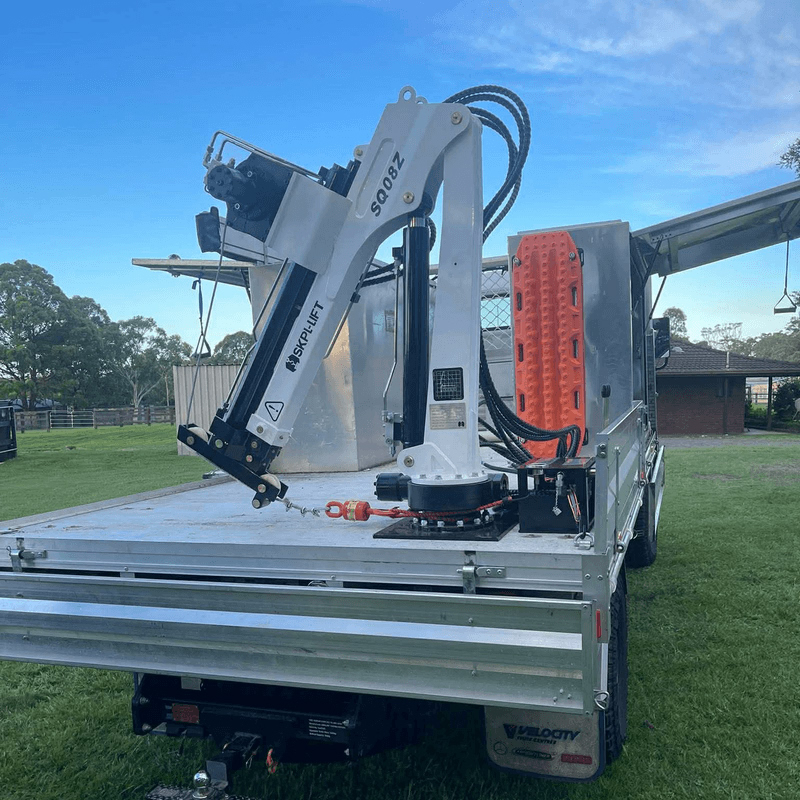

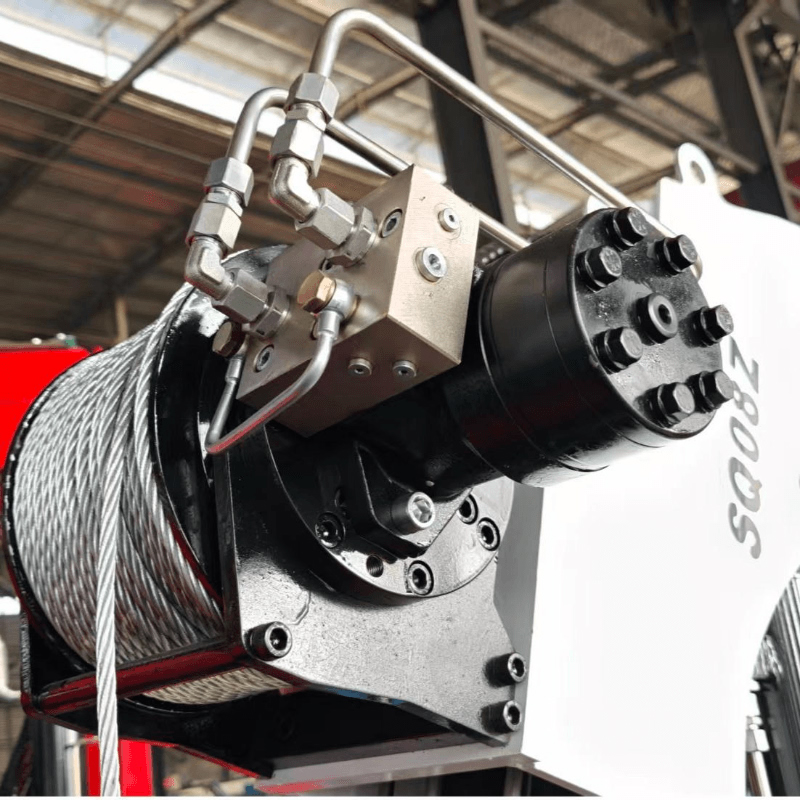

The SKPL-LIFT 800 kg Pickup Crane Without Outriggers is a compact and versatile lifting solution designed for installation on small trucks, pickups, or marine vessels. Its two-section telescopic knuckle boom features a high-strength steel interface, improving bending resistance and operational safety. The crane is equipped with four stabilizing outriggers for stability and an integrated lifting winch for smooth, efficient operation. The boom and structure are coated with an oxygen-rich zinc anti-corrosion layer, providing superior protection against saltwater and harsh marine environments. A remote control system allows operators to lift and position loads safely from a distance. Ideal for light marine operations, dockside material handling, small-scale logistics, and on-board lifting tasks, it provides a safe, practical, and durable solution for light loads in maritime settings.
| Quantity: | |
|---|---|

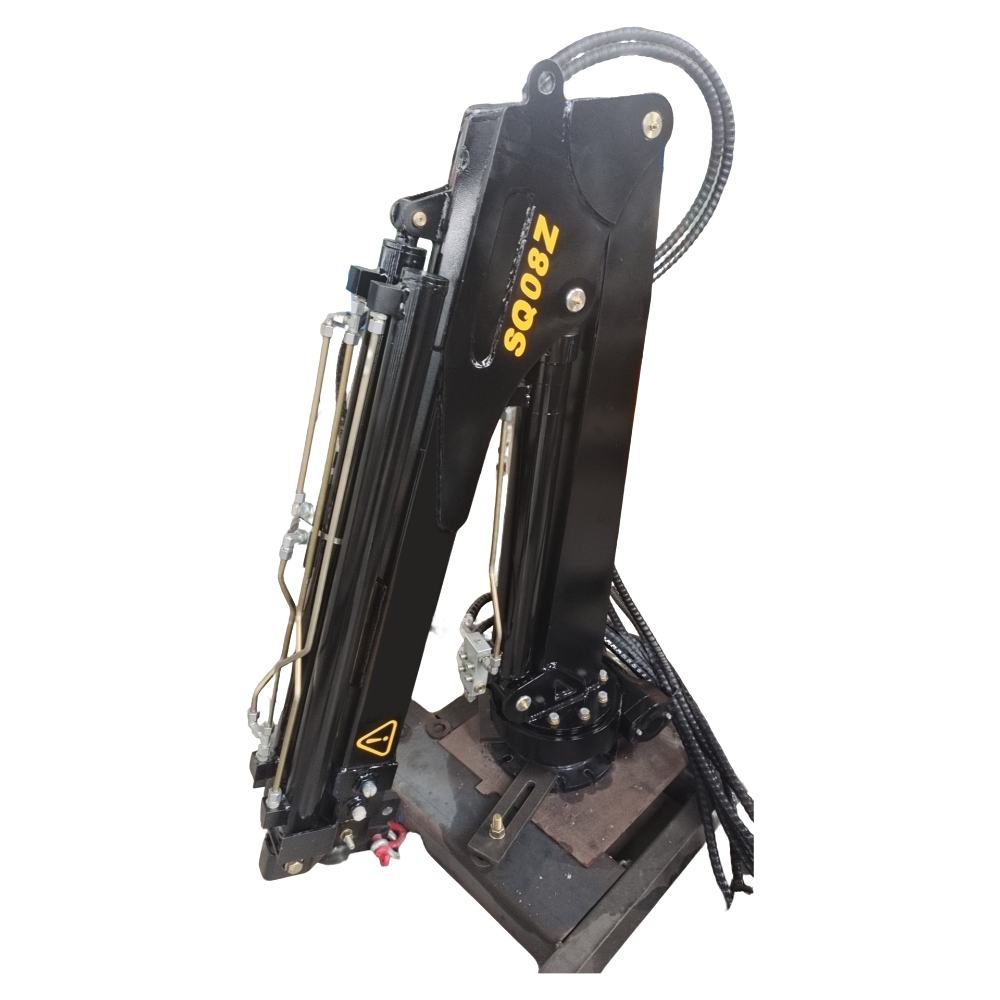

SQ08Z
SKPL-LIFT
The SKPL-LIFT 800 kg Pickup Crane Without Outriggers is a compact, corrosion-resistant lifting solution tailored for marine and light-duty logistics scenarios—specifically engineered for small-scale offshore supply runs, coastal fishing operations, and dockside material transfers. Engineered to mount on small trucks, pickups (including 1/2-ton to 1-ton models common in coastal regions), or marine vessels like utility boats and small yachts, it combines portability with robust performance. Its design addresses the unique challenges of maritime environments, such as saltwater corrosion and limited deck space, making it a top choice for saltwater and harsh maritime conditions. With a maximum lifting capacity of 800 kg and integrated marine-specific features (including anti-rust hardware and waterproof electrical components), this crane delivers safe and efficient operations for offshore and dockside tasks.

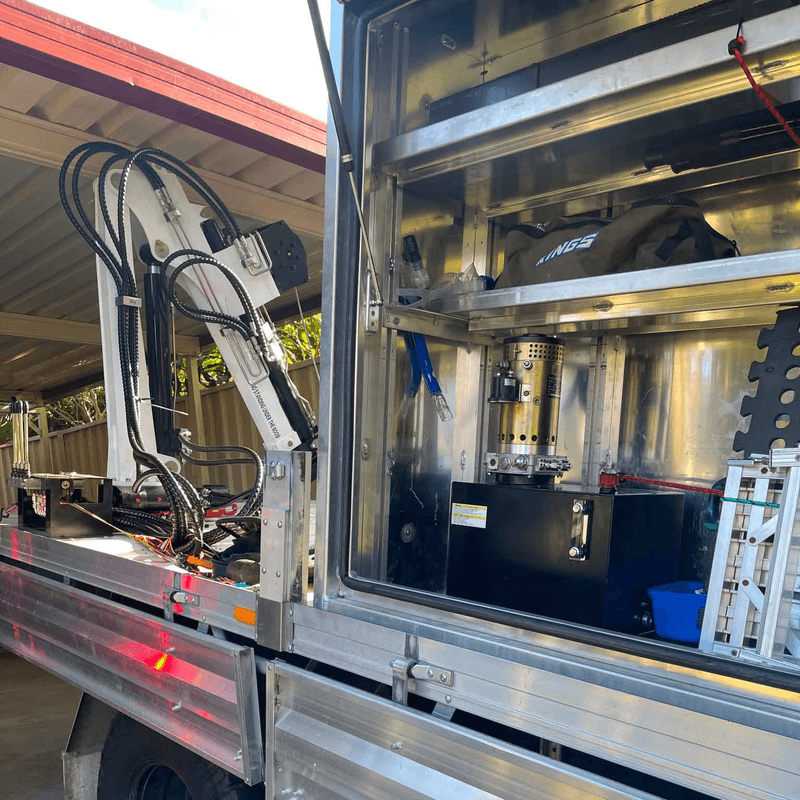

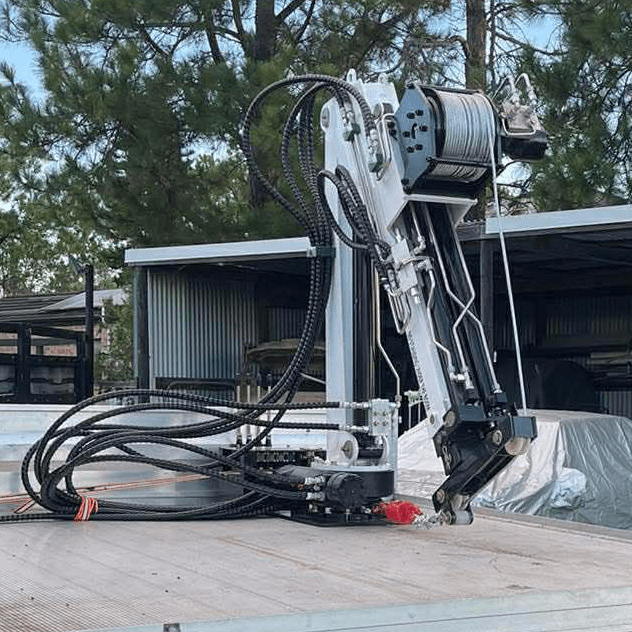

Weighing only 180–200 kg (without winch), the crane requires no major modifications for installation on small marine platforms or pickups—compatible with standard truck bed rails and vessel deck mounting points. Its compact footprint fits seamlessly on ship decks and narrow vessel spaces, ensuring stability without sacrificing maneuverability. The foldable boom design further reduces storage space, critical for small boats with limited on-board storage.
Boasting an oxygen-rich zinc anti-corrosion layer (80μm thickness) on the boom and structural components, plus stainless steel fasteners and sealed hydraulic cylinders, the crane withstands saltwater spray, high humidity, and harsh marine conditions. This coating extends service life by up to 50% compared to standard cranes and reduces annual maintenance costs by minimizing rust-related repairs in maritime settings.
The two-section telescopic knuckle boom features a high-strength steel interface (700Mpa grade) that enhances bending resistance—supporting loads up to 800 kg at full extension. It enables precise load placement in confined or uneven marine spaces, from tight ship decks to irregular dock edges, and can articulate 120° vertically to reach over vessel rails or dock barriers.
• Model: SQ08ZB2WM+1

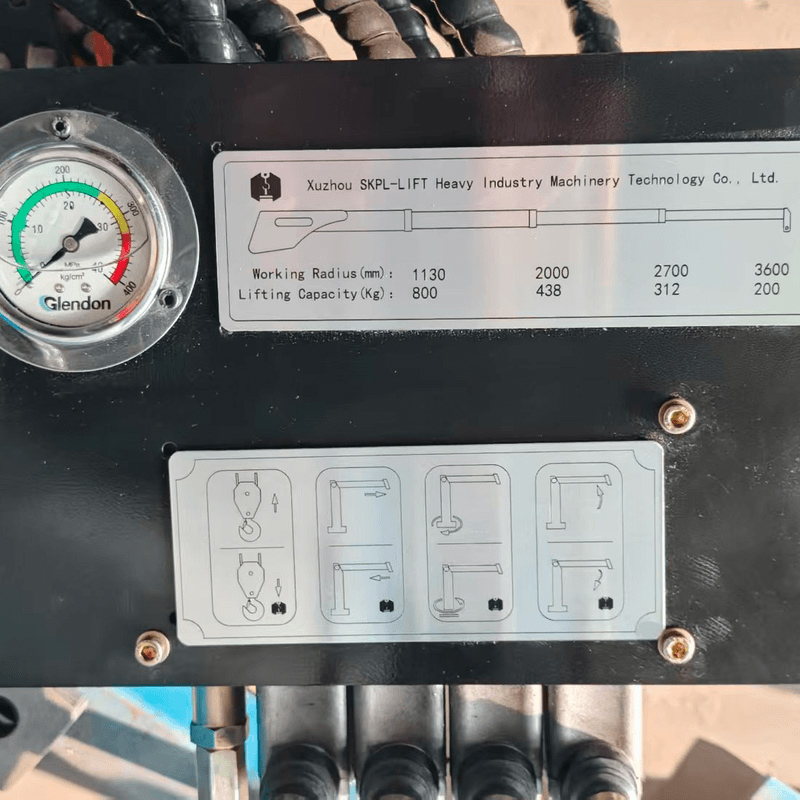

• Max. Lifting Capacity: 800 Kg (at 1.5m working radius)
• Max. Lifting Moment: 1 Ton.m
• Hydraulic System Pressure: 16 Mpa
• Hydraulic System Flow: 8 L/min
• Slewing Angle: 330° (left 165°/right 165°)
• Boom Length (Stowed/Extended): 2.1m / 4.2m
• Installation Space: 280 mm (required clearance between mounting points)
• Crane Self Weight: 320 Kg (including winch)
• Recommended Power: 2.5 Kw (12V DC for marine use, 220V AC for shore power)
• Oil Tank Capacity: 15 L (compatible with marine-grade hydraulic oil)
Technical Parameter | |
Installation space | 280 mm |
Model name | SQ08ZB2+1 |
Max.Lifting Capacity | 800 Kg |
Max.Lifting Moment | 1 Ton.m |
Hydraulic System Pressure | 16 Mpa |
Hydraulic System Flow | 8 L/min |
Slewing Angle | 330° |
Reconmmend Power | 2.5 Kw |
Oil Tank Capacity | 15 L |
Crane Self Weight | 320 Kg |
Yes, the crane features an 80μm oxygen-rich zinc anti-corrosion layer on structural components, stainless steel fasteners, and sealed hydraulic cylinders—all designed to resist saltwater spray, high humidity, and marine corrosion. It is tested to withstand 1,000 hours of salt spray exposure (per ASTM B117 standards) without significant rust, making it ideal for long-term saltwater use.
We support 30% deposit via T/T (telegraphic transfer) with the balance due before shipment, MIC platform payment (with buyer protection), and L/C (sight letter of credit) for orders exceeding $50,000. Long-term cooperation partners (ordering 5+ units annually) enjoy more favorable terms, including 20% deposit and 60-day credit for repeat orders, plus a 5% volume discount on orders of 10+ units.
Standard products are in stock and can be delivered within 15 working days (via sea freight to major ports, e.g., Shanghai, Rotterdam, Houston) or 3–5 working days via air freight for urgent orders. Customized orders (e.g., modified boom length, additional safety features) take 30+ working days, depending on specific requirements—we provide a detailed production timeline within 3 days of order confirmation.
We offer lifelong online technical support (via email, WhatsApp, or video call) with a dedicated engineer assigned to each customer, a 1-year product warranty (covering manufacturing defects in components like hydraulic pumps and winches), and paid extended warranty options (2-year or 3-year plans) that include free replacement parts. We also stock common spare parts (e.g., winch cables, hydraulic seals) in 5 regional warehouses (Asia, Europe, North America, Australia, Africa) for fast delivery.

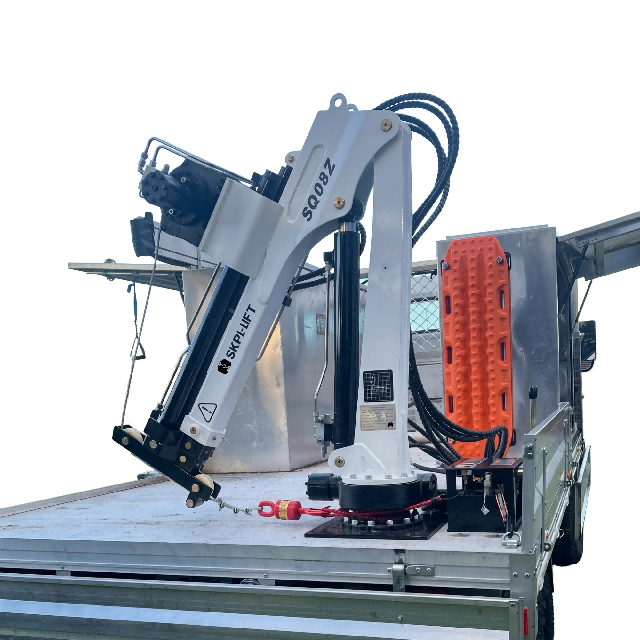

Absolutely. The crane’s lightweight design (180–200 kg without winch) and universal mounting bracket fit most standard pickups (1/2-ton to 1-ton models, e.g., Ford F-150, Toyota Tacoma, Mitsubishi L200) without major modifications. The mounting kit includes all necessary hardware (bolts, washers, gaskets) and a detailed installation guide—most customers complete installation in 2–3 hours with basic hand tools.
