Procuring sea-going lifting equipment requires exact specifications, as under-specification causes catastrophic structural failure, while over-specification wastes capital. Standard deck operations, port-side cargo handling, and open-ocean rig logistics present completely different engineering demands. Many procurement teams fail to differentiate between a commercial deck Marine Crane and a deepwater offshore crane. This technical error leads to severe dynamic load imbalances, vessel structural damage, and immediate regulatory non-compliance during inspections.
To safely manage heavy marine logistics, operators must evaluate environmental tolerances, dynamic load factors, and control system architectures. Shifting from basic deck-level hydraulic levers to advanced Active Heave Compensation (AHC) systems alters the entire operational envelope. This technical guide outlines the environmental boundaries, structural differences, and exact kinematic controls required for sea-going operations. We provide a rigorous procurement checklist to ensure your equipment specifications align strictly with operational sea states.
Sea State Limits: Standard maritime cranes are restricted to sheltered waters (Beaufort scale < Level 2), while offshore variants are engineered for extreme open-ocean turbulence.
Safety Redundancy: Operational safety factors differ drastically—typically 1.3x to 3x for deck lifting, scaling up to a 10-fold safety factor for offshore rig installations.
Kinematic Control: Deep-sea operations require integration with Dynamic Positioning (DP), Anti-Sway technology, and Active Heave Compensation (AHC) to counteract continuous vessel motion.
Procurement Mandates: Final equipment selection must be validated through classification society standards (e.g., API-2C) and verified via marine simulation operation tests.
Understanding lifting mechanics begins with analyzing the foundational base. Land-based port cranes sit on rigid, stationary concrete foundations. Engineers optimize land-based machinery entirely for maximum height, forward reach, and raw lifting capacity without calculating foundation movement. The load physics remain static and highly predictable.
A sea-going base operates entirely differently. Vessels experience constant movement across six distinct degrees of freedom: heave, sway, surge, roll, pitch, and yaw. The ship acts as a variable platform subjected to tide inputs, rogue waves, and aggressive wind shear. This fundamental shift from static ground to a dynamic oceanic foundation dictates every mechanical engineering choice.
Environment | Foundation Stability | Six Degrees of Freedom | Primary Engineering Focus |
|---|---|---|---|
On-Shore (Port) | Static, rigid ground. | Zero movement. | Maximum height and load capacity. |
On-Deck (Marine) | Semi-dynamic. Sheltered waters. | Minor roll and pitch. | Deck space efficiency and loading speed. |
Offshore (Open Ocean) | Highly dynamic. Extreme waves. | Severe, continuous multi-axis motion. | Load stabilization, AHC, and dynamic impact resistance. |
Standard deck operations involve port-to-ship material loading or ship-to-ship transfers conducted strictly inside sheltered harbors or highly stable inland waters. Lifting capacities for commercial deck operations typically range from 1 ton for provision handling up to 50 tons for container or heavy machinery management. These models prioritize fast cargo turnover over severe weather resistance.
The operational environment enforces a strict functional ceiling. Manufacturers cap standard deck operations at wind speeds below Beaufort scale Level 2 (4-6 knots). Structural tolerances strictly forbid operations if the vessel experiences seawater fluctuations exceeding 5° or a trim exceeding 2°. Exceeding these exact angular limits damages the slew bearing and shifts the load's center of gravity beyond safe operating limits. Operators use these systems primarily to manage proprietary cargo, lift specialized hatch covers, and eliminate manual lifting labor during standard commercial voyages.
Offshore operations occur far outside harbor limits. These operations take place aboard drill ships, semi-submersible oil rigs, Floating Production Storage and Offloading (FPSO) vessels, and subsea intervention ships. Lifting payloads frequently exceed hundreds or thousands of tons. Operators utilize these heavy-duty structures to lower subsea manifolds, install wind turbine nacelles, and execute high-risk ship-to-rig crew and material transfers.
The open ocean presents a hostile mechanical environment. Engineers build offshore machinery to function safely during Sea State 6 conditions. They operate safely even when vessel heel exceeds 5° and trim exceeds 2°. To survive continuous wave impacts and high-velocity wind shear, manufacturers mount offshore models on deep, heavy-wall steel pedestal bases. Shipbuilders weld or bolt these pedestals directly into the hull's primary load-bearing bulkheads, completely abandoning the extendable outrigger legs used in land-based or light-duty applications.
Commercial cargo vessels monetize every square inch of available deck space. Deck lifting equipment requires a compact, flexible footprint. The boom geometry must allow for fast cargo manipulation while retracting into a minimal physical profile during transit to avoid obstructing container stacks or radar lines of sight.

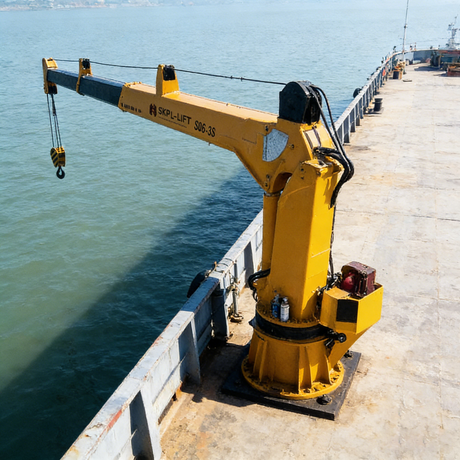

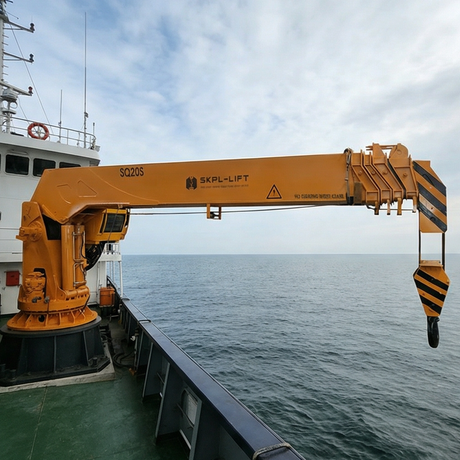

A Telescopic Boom Marine Crane resolves the conflict between operational reach and deck storage. This model uses a series of internal, multi-stage hydraulic cylinders combined with synthetic nylon wear pads. It extends outward linearly to achieve a massive working radius during harbor loading, then retracts smoothly into a tight, straight profile. It provides a simple lifting path without demanding high overhead clearance.

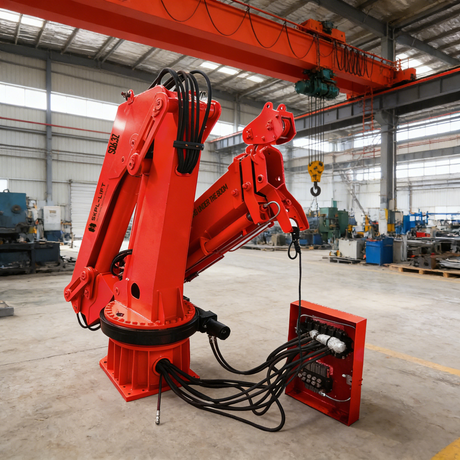

Alternatively, a Knuckle Boom Marine Crane relies on a highly articulated geometry. It features a primary main boom and a secondary outer boom, connected by a heavy-duty mechanical knuckle joint. This articulation allows operators to reach over deck obstacles, manipulate loads in tight cargo holds, and reduce the dangerous pendulum effect by keeping the boom tip physically closer to the attached payload. For jobs requiring pure static lifting with zero spatial limitations, a stiff boom provides the simplest, most rigid lifting architecture.
Offshore architecture requires extreme structural mass and high-tensile steel to survive dynamic wave forces. The boom geometry must account for extended outreach distances, continuous vessel motion, and immense payload stress during subsea drops.
Engineers utilize wire luffing lattice booms for extreme operational radii. Reaching 40 to over 50 meters, manufacturers build these booms using crisscrossing tubular steel chords. This open lattice design minimizes wind resistance while providing incredible structural rigidity, making it mandatory for offshore wind turbine erection or deepwater rig module installations.
Specialized offshore variations include LARS (Launch and Recovery Systems). These feature customized A-frames paired with constant-tension umbilical winches tailored to deploy expensive remote operated vehicles (ROVs) into deep water. Shipyards also build combined double-slewing cranes that operate in synchronized parallel to lift ultra-heavy rig modules. Recently, manufacturers have introduced fully electric jib cranes equipped with remote onshore telemetry for unmanned, zero-emission platform installations.
Boom Configuration | Primary Operational Use | Structural Advantage | Deck Storage Footprint |
|---|---|---|---|
Telescopic Boom | Commercial cargo, provision lifting. | Linear hydraulic reach, simple mechanics. | Highly compact. |
Knuckle Boom | Subsea lowering, confined deck spaces. | Articulated joints, obstacle avoidance. | Folded, ultra-compact. |
Lattice Boom | Rig installations, extreme heavy lifts. | High-tensile rigidity, low wind drag. | Requires massive deck rest space. |
Lifting a concrete block on land requires calculating standard gravity and the operating boom angle. Lifting at sea introduces aggressive dynamic loads. A moving ocean platform artificially multiplies the kinetic weight of a suspended payload through a metric known as the Dynamic Amplification Factor (DAF). If a vessel drops rapidly into a wave trough just as the winch motor engages, the resulting "snap load" sends a violent kinetic shockwave up the wire rope, through the boom pins, and directly into the slew bearing.
To prevent catastrophic mechanical failure under these conditions, engineers apply drastically different safety margins. Standard deck lifting equipment operates using a 1.3 to 3.0 static safety factor, as harbor environments lack severe wave troughs. Offshore lifting hardware mandates up to a 10-fold safety factor for personnel and high-risk subsea lifts. This extreme structural redundancy absorbs sudden kinetic snap loads, prevents lattice shearing, and protects operators during volatile ship-to-rig transfers.
Basic commercial weatherproofing deteriorates rapidly in deep-sea environments. The constant exposure to atomized salt spray, 100% humidity environments, and intense UV radiation destroys standard paints within months. Deep-sea anti-corrosion engineering represents a mandatory phase of manufacturing.
Manufacturers adhere strictly to ISO 12944 C5-M marine coating standards. Technicians sandblast raw steel to SA 2.5 purity. They apply multi-layered zinc-rich epoxy primers, intermediate build coats, and heavy polyurethane topcoats to achieve a dry film thickness exceeding 320 microns. Engineers use 316L stainless steel for all exposed cylinder rods, hydraulic fittings, and connection pins. Furthermore, designers bolt sacrificial anode blocks directly to the pedestal and boom. These highly reactive zinc or aluminum blocks intentionally corrode in the saltwater environment, actively acting as a galvanic battery that spares the machine's critical load-bearing carbon steel from electrochemical degradation.
Operational environments dictate the control system architecture. Commercial deck equipment uses standard open-loop hydraulic systems optimized for high-speed, repetitive cargo handling. The operational goal is transferring pallets quickly. Operators rely entirely on direct visual cues, manual joystick inputs, and basic load-holding valves to manage the lift.
Offshore equipment completely rejects raw speed in favor of extreme load stabilization. Swinging a 500-ton subsea manifold over a heaving deck requires algorithmic precision. Offshore machines utilize closed-loop hydraulic systems integrated with algorithmic Anti-Sway technology. Motion sensors read the boom angle, payload weight, and vessel roll in real time, automatically micro-adjusting the proportional hydraulic valves to prevent the suspended load from building kinetic pendulum momentum.
Active Heave Compensation (AHC) defines modern offshore lifting capability. AHC relies on a Motion Reference Unit (MRU) mounted near the vessel's center of gravity. The MRU polls the exact roll, pitch, and heave of the hull at 100 times per second. The system transmits this telemetry to the hydraulic winch motors.
As the ocean swell pushes the vessel up, the AHC system automatically spools the wire rope out. As the vessel drops into the wave trough, the winch instantly pulls the wire rope back in. This automated adjustment seamlessly decouples the crane's payload from the vessel's wave-induced vertical motion, keeping the subsea load perfectly stationary relative to the ocean floor.
Constant Tension (CT) modes operate as a secondary safety feature. CT maintains a strict, predefined tension limit on the lifting wire. This technology prevents the wire rope from going slack during subsea deployment. If a wire goes slack and the vessel suddenly rises on a rogue wave, the resulting mechanical snapback easily severs the steel cable or rips the lifting boom off its pedestal mount.
Control Technology | Sensor Input Requirement | Primary Mechanical Function |
|---|---|---|
Standard Winch Control | Manual operator visual input. | Basic load lifting in stable conditions. |
Constant Tension (CT) | Hydraulic pressure load cells. | Prevents slack wire and catastrophic snapbacks. |
Active Heave Compensation | High-frequency MRU telemetry. | Keeps payload stationary relative to the seabed. |
Deepwater offshore hardware operates as a fully integrated node within the host vessel's computer systems. Offshore certification standards mandate deep integration between the lifting hardware and the ship's Dynamic Positioning (DP) systems. When the operator swings a massive lattice boom outboard, the DP system detects the shifting center of gravity and automatically fires the ship's lateral thrusters to hold the vessel's exact GPS coordinates.
Engineers also synchronize the lifting telemetry with the vessel's active ballast control systems. As a 200-ton load swings over the ocean, the automated ballast system rapidly pumps thousands of gallons of seawater into the opposite side hull tanks to maintain strict level trim and prevent capsizing. Standard deck lifting operations lack this integrated ballast safety net entirely.
Experienced maritime machinery operators handle severe physical and mental tolls during oceanic lifts. The operator acts as a human dampener, anticipating the rhythm of the ocean swell to land heavy loads safely on a moving deck. They must constantly counter the pendulum effect through tiny, precise joystick inputs.
The most dangerous mechanical variable is "side deflection" or side-loading. When an offshore supply barge experiences a 5-degree list due to a wave, rotating the boom outboard forces the suspended load to swing away from the vertical axis. This off-lead loading puts immense lateral stress on the boom lattice. Operators must feather the slew controls to battle the forward gravity pull and lateral deflection simultaneously, keeping the load within the strict off-lead limitations dictated by API 2C safety codes.
Shore-to-ship material transfers present specific environmental hazards. Operators must execute precise tide management procedures. Transferring heavy equipment to a floating barge requires adjusting the cable length continuously. The operator must cable up or down to match the rising or falling tide exactly. Failing to match the tide speed results in the load violently crashing onto the deck or overloading the dockside moorings.
Modern offshore control cabins resemble aviation cockpits. Operators require high technical literacy to navigate complex dashboard modes. They switch constantly between standard Ship-to-Ship profiles, Subsea lowering modes, and Constant Tension parameters. They must interpret digital load charts, MRU telemetry, and hydraulic temperature warnings simultaneously, making the operation far more complex than the direct visual execution used in standard port material handling.
Procurement teams must accurately map out a 15-year Total Cost of Ownership (TCO) model. The initial CAPEX discrepancy between standard commercial deck hardware and open-ocean AHC systems is massive. Specialized high-tensile steel, proportional winch motors, DP integration sensors, and heavy wall pedestal mounts drive this initial cost increase.
OPEX (Operational Expenditure) scales even more drastically. Deepwater machines require rigid, heavily funded maintenance schedules to prevent mechanical failures in corrosive environments. Teams must budget for annual MRU sensor recalibration, continuous wire rope lubrication, Non-Destructive Testing (NDT) of slew bearing welds, and routine replacement of sacrificial zinc anodes.
Lifecycle Cost Category | Standard Deck Logistics | Deepwater / Offshore Installations |
|---|---|---|
Initial CAPEX | Moderate. Uses standard commercial grade steel and hydraulics. | High. Requires specialized alloys, AHC winch systems, and DP sensors. |
Maintenance OPEX | Low. Requires routine hydraulic fluid checks and pin greasing. | High. Requires replacement of sacrificial anodes and MRU calibration. |
Inspection Frequency | Annual standard commercial maritime inspections. | Strict, quarterly multi-point redundancy testing. |
System Redundancy | Utilizes basic single load-holding check valves. | Requires complex dual hydraulic redundancy and backup power. |
Compliance serves as a non-negotiable procurement pillar. Installing uncertified lifting machinery on an offshore platform immediately voids hull insurance policies and invites severe international legal penalties. Classification societies such as DNV, the American Bureau of Shipping (ABS), and Lloyd’s Register strictly dictate manufacturing and structural standards.
Offshore operations demand compliance with API-2C or DNV-ST-0378 codes. Procurement contracts must mandate adherence to these specific editions. Furthermore, buyers must force manufacturers to conduct factory-level marine simulation tests. Engineers run the assembled machinery through physical stress tests that replicate actual Sea State 6 dynamic loading prior to final vessel installation, proving the steel can survive open-ocean mechanical abuse.
Catastrophic mis-specification occurs when procurement teams fail to submit precise operational data to the engineering firm. Providing vague lifting requirements results in machinery that either shears under dynamic load or lacks the reach required to clear deck obstacles. To avoid engineering failures, buyers must document and submit the following strict parameters during the RFP phase:
Host Carrier Type: Detail whether the unit mounts to a commercial cargo vessel, a semi-submersible platform, a jack-up rig, or an FPSO hull. This specific data dictates the structural choice between flat deck mounting or deep pedestal integration.
Geographic Sea Area: Define the exact oceanic regions of operation. Engineers require this data to determine target baseline weather tolerances, regional saltwater salinity levels, and specific humidity profiles for anti-corrosion paint planning.
Sea State Data: Define the absolute maximum operational Sea State Level. Procurement documents must list the target Beaufort wind scale limits and the exact Significant Wave Height (Hs) the machinery must survive while actively lifting and while stowed.
Thermal Extremes: Document the absolute minimum and maximum operational temperature tolerances. Operations in arctic zones require specialized brittle-resistant steel alloys, while equatorial zones demand heavy-duty oil coolers for the hydraulic power units.
Engage qualified marine structural engineers to calculate dynamic deck-load limits and wave impact forces prior to finalizing exact pedestal dimensions.
Consult your designated classification society early in the schematic design phase to guarantee the specified machinery aligns strictly with your vessel's operational certification limits.
Demand documented factory-level marine simulation operation tests from the manufacturer to prove structural integrity before authorizing final shipment and hull installation.
Establish an OPEX budget specifically allocated for offshore maintenance, detailing funds for MRU sensor recalibration, NDT weld inspections, and sacrificial anode replacement.
A: No. The safety factors differ completely—typically 3x for deck lifting versus 10x for offshore. Standard deck units lack Active Heave Compensation (AHC). Operating them in dynamic rig environments violates strict compliance codes and creates dangerous structural snap-load risks.
A: Knuckle booms utilize an articulating, folding joint to manage low-clearance tasks, navigate complex positioning, and reach over physical deck obstacles. Telescopic booms extend linearly through internal hydraulic cylinders, maximizing straight outreach while retracting into a highly compact deck footprint.
A: AHC reads high-frequency telemetry from motion sensors and commands automated high-speed winches to decouple the suspended payload from the vertical heave of the vessel. It automatically spools cable in or out to keep the load perfectly stationary relative to the seabed.
A: Machinery is structurally bound by specific environmental thresholds. Procurement must specify significant wave heights, allowable vessel heel/trim angles, and wind speeds. Exceeding these engineered limits voids safety certifications and rapidly increases the risk of kinetic mechanical shearing.
A: Sacrificial anodes consist of highly reactive metals like zinc or aluminum attached directly to the steel structure. In saltwater environments, these blocks act as an electrochemical battery, corroding intentionally to actively protect the machine's critical load-bearing carbon steel from galvanic degradation.
A: Yes. Moving from a static land base to a moving maritime platform requires specific offshore safety certification. Operators must pass rigorous simulator training to manage sudden list deflection, complex constant tension modes, and vessel Dynamic Positioning (DP) integration.
