Misidentifying lift equipment requirements introduces severe operational and financial risks to any construction or maintenance project. Project delays, blown budgets from over-specifying machinery, or catastrophic safety failures from under-specifying can instantly derail your timeline. A common point of friction in fleet management and site planning lies in the confusion between hydraulic truck cranes and boom trucks. While both machines offer excellent highway mobility and hydraulic lifting power, their load charts, setup times, site footprints, and fleet versatility dictate entirely different use cases. Choosing the correct asset requires a rigorous, data-driven evaluation of your specific lift capacity, maximum radius, site access constraints, and mobilization efficiency requirements. You cannot simply guess which machine will perform better based on visual size alone. We will break down the precise framework for comparing a hydraulic truck crane against a Boom Truck Mounted Crane to ensure you secure the exact equipment required for your job site safely and efficiently.
Capacity and Reach: Boom truck mounted cranes are generally optimized for lighter, highly mobile loads (typically under 45–54 tons), whereas hydraulic truck cranes are engineered for heavier, higher, and longer-duration lifts.
Mobilization and Setup: Boom trucks offer rapid deployment and "taxi crane" capabilities, making them ideal for multi-stop daily schedules and small job sites. Hydraulic truck cranes require more extensive setup, including complex outrigger and counterweight configurations.
Site Footprint: The smaller commercial chassis of a boom truck allows for navigation in tight residential or light commercial spaces, whereas hydraulic cranes demand larger operational footprints and higher ground-bearing pressure tolerances.
Versatility vs. Specialization: Boom trucks often double as aerial lifts for personnel (with man-basket attachments), while hydraulic truck cranes are strictly specialized for heavy material handling.
Cost Efficiency: Over-spec'ing to a hydraulic truck crane for a boom truck-appropriate job incurs unnecessary mobilization and permit costs; under-spec'ing risks load chart violations and project stoppage.
Mobile lifting requires precise planning and a deep understanding of the physics involved in hoisting materials. The success of any lifting operation begins long before the equipment arrives on site. You must define the lift parameters with absolute certainty to avoid costly delays or dangerous overloads. Establish the exact weight of the load first. This calculation must determine the gross capacity required. Gross capacity includes the weight of the load itself, the block, the wire rope, the rigging hardware, and any spreader bars utilized. A 10,000-pound rooftop unit might require 1,500 pounds of rigging. You must account for every ounce. Furthermore, if a jib is stowed on the side of the boom during a main load line lift, you must deduct its weight from the gross capacity according to the manufacturer's specifications.
Next, determine the maximum hook height required to clear site obstacles and place the load safely at its final elevation. However, the most critical question often becomes the lift radius. You must measure the exact horizontal distance from the crane's center of rotation to the load's center of gravity. A load that weighs 10 tons at a 15-foot radius will exert drastically different tipping forces when placed at a 50-foot radius. Understanding how capacity degrades as the radius increases is the foundational step in selecting the right machine. You must also account for boom deflection. When a heavy load is lifted off the ground, the boom flexes downward slightly, which naturally increases the horizontal radius. Operators must anticipate this dynamic shift to prevent pulling the machine out of its safe load chart zone.
Site accessibility dictates equipment selection before capacity is even considered. Job site realities often eliminate certain machines immediately during the planning phase. Narrow residential access roads restrict wide-axle vehicles from entering the neighborhood. Overhead power lines demand strict OSHA clearance zones, limiting boom deployment angles. Tight urban alleys prevent full outrigger extension, which directly reduces the machine's allowable lifting capacity. Uneven terrain requires extensive cribbing, grading, and ground preparation. You must evaluate the physical footprint available for the machine to set up, swing the counterweight, and operate safely without striking adjacent structures.
Duration and frequency of lifts also drive your equipment choice. You must differentiate between single, heavy static lifts and multiple, lighter lifts across different site locations. A static lift, such as setting a massive bridge girder, requires sustained stability, heavy counterweights, and maximum capacity. Conversely, frequent, multi-site lifts demand rapid teardown and setup capabilities. If your crew needs to hit three different job sites in a single day to set HVAC units, mobilization speed becomes your primary efficiency metric.
Before finalizing any equipment order, execute these specific site evaluation steps:
Measure the exact width of the access gate or driveway to ensure the carrier chassis can pass through without damaging curbs or fencing.
Identify all overhead obstructions, including tree branches, communication lines, and high-voltage power lines, noting the required minimum approach distances.
Locate underground hazards like septic tanks, water mains, or newly poured concrete vaults that could collapse under the outrigger point loads.
Calculate the exact distance from the proposed center of rotation to the furthest placement point to establish your maximum required radius.
Verify the ground slope to ensure the outriggers have enough stroke to level the chassis completely before lifting.

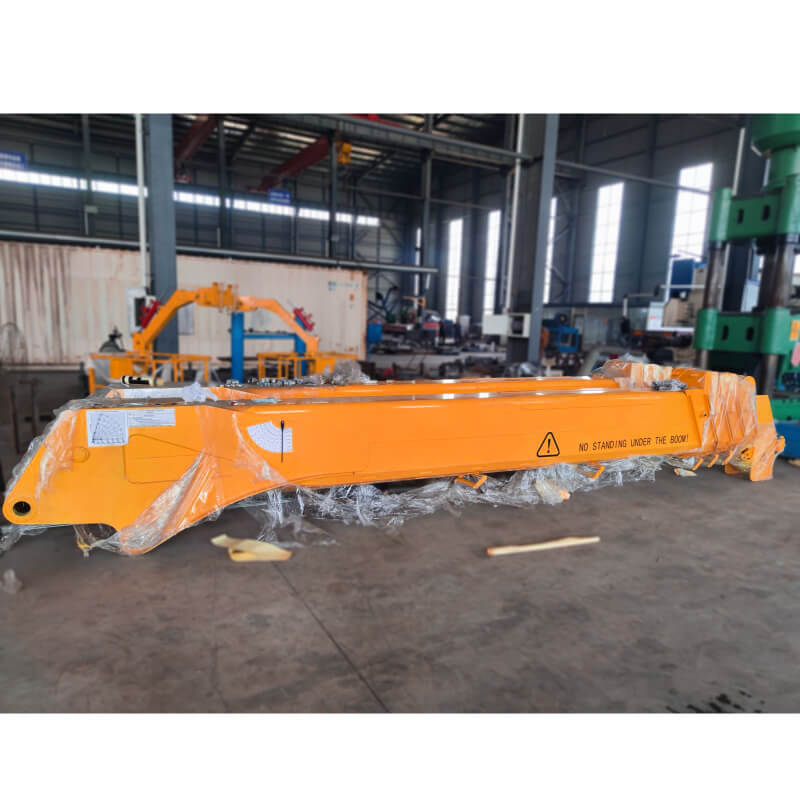

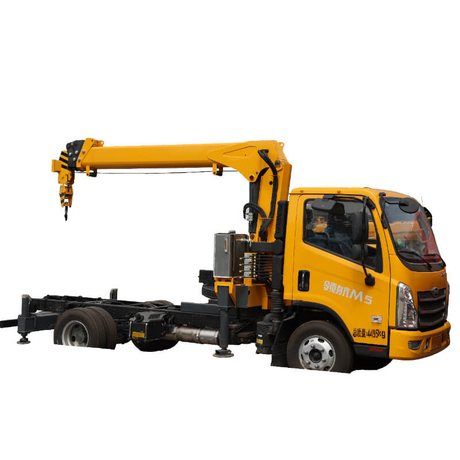

A Boom Truck Mounted Crane consists of a standard commercial truck chassis fitted with a hydraulic boom system. This design leverages the commercial chassis for highway speeds, maneuverability, and seamless fleet integration. Operators can drive these units at normal highway traffic speeds, moving from the equipment yard to the job site without specialized transport logistics, escort vehicles, or complex routing. The integration of a hydraulic boom onto a standard truck frame, powered by a Power Take-Off (PTO) system, provides a highly mobile and efficient lifting solution. The PTO engages the truck's transmission to drive the hydraulic pumps, delivering pressurized fluid to the boom cylinders and winch motors.
These machines excel in specific, high-frequency use cases. Residential construction relies heavily on them for setting roof trusses, placing residential HVAC units, and delivering heavy building materials directly to the upper floors of a structure. Utility work and municipal tree removal benefit immensely from their quick setup times and ability to navigate standard city streets. Light commercial jobs requiring frequent repositioning are perfect for this equipment. You can drive up to the curb, deploy the outriggers, execute the lift, stow the boom, and pack up within minutes. The outrigger configurations, typically A-frame or out-and-down styles, allow operators to stabilize the truck quickly using integrated bubble levels or electronic inclinometers.
One of the greatest advantages is their dual-purpose nature. Many units can be outfitted with OSHA-compliant man-baskets at the boom tip. This transforms the lifting equipment into a highly capable aerial work platform. Utility line maintenance, high-reach structural inspections, and aerial mechanic service become highly efficient. You eliminate the need to mobilize a separate aerial lift or bucket truck to the site, streamlining your equipment footprint and labor requirements. The controls for these baskets often integrate directly with the boom's hydraulic system, allowing smooth, precise positioning for the personnel aloft.
However, you must understand their known structural and operational limitations. They have strict capacity ceilings. Most models max out around 45 to 54 tons. More importantly, this capacity drops drastically as the horizontal radius increases due to the lighter chassis weight. A machine rated for 40 tons might only safely lift a fraction of that weight at its maximum reach. Furthermore, they often lack 360-degree continuous lifting capabilities compared to purpose-built crane chassis. Lifting over the front of the cab is frequently restricted or entirely prohibited by the manufacturer's load chart due to the lack of structural rigidity in the front suspension. They also lack heavy supplemental counterweight options, which restricts long-reach stability and limits side-reach capabilities significantly.
Hydraulic truck cranes feature a heavy-duty, purpose-built design engineered from the ground up for maximum hoisting power. Engineers construct the lower carrier frame, specialized axles, and advanced hydraulic boom sections exclusively for heavy lifting. Unlike commercial truck chassis, every component of a hydraulic truck crane serves the primary function of stabilizing and hoisting massive loads. The heavily reinforced carrier frame withstands immense torsional stress during heavy lifts, while the slewing ring allows for smooth, continuous 360-degree rotation under extreme loads. Larger models often feature a separate engine dedicated entirely to the upper works, ensuring the hydraulic pumps receive uninterrupted, high-torque power during complex multi-function lifts.
These machines dominate primary heavy-lifting applications across major construction sectors. Heavy infrastructure projects, bridge building, and highway construction require their sustained stability and massive lifting power. Steel erection relies on their high capacity at extended heights to place massive I-beams safely. Large precast concrete placement and commercial industrial HVAC installations demand extended reach and sustained high-capacity holds. When the load is exceptionally heavy, or the required reach is extreme, this purpose-built equipment becomes mandatory for site safety and project execution. The multi-axle steering capabilities found on many of these carriers allow operators to crab-steer the massive machine into tight industrial plants, providing surprising maneuverability once on site.
Despite their raw power, they introduce significant logistical friction into a project timeline. Highway speeds are generally slower due to the massive weight of the carrier and boom. Depending on the axle weights, overall dimensions, and local municipal regulations, you may need special overweight or oversize permits to move the machine. Escort vehicles, police details, and strict route surveys are frequently required to navigate local roads legally and avoid structurally deficient bridges. You must factor these transportation logistics into your project schedule weeks in advance.
Setup time is another major limitation. Deploying multi-stage outriggers, precisely leveling the machine on uneven ground, and attaching supplemental counterweights requires an extended setup phase. You cannot simply drive up and lift. The assembly process demands deliberate, multi-step execution by a skilled crew. Depending on the size of the crane, the counterweights may even need to arrive on a separate flatbed trailer. The crane uses its own hydraulic systems or a secondary assist crane to stack cast iron or steel plates onto the superstructure. This process adds hours to the mobilization phase. You must factor this assembly time into your daily rental rate and project schedule.
Comparing setup time and mobilization efficiency reveals stark contrasts between the two platforms. The drive-up and lift nature of a boom truck minimizes labor hours and accelerates project timelines. A skilled operator can arrive on site, stabilize the machine, and begin lifting in under fifteen minutes. This rapid deployment accelerates daily project pacing, especially for multi-site service routes. Conversely, a hydraulic truck crane requires a deliberate, multi-step assembly. Installing counterweights, configuring complex outrigger spreads, and running through extensive pre-lift computer checks can consume over an hour before the hook ever drops. If your project requires lifting a single 5,000-pound load, spending two hours on setup and teardown destroys your labor efficiency.
Lift capacity directly trades off against the physical footprint of the machine. A hydraulic crane's larger outrigger spread provides essential stability for heavy loads, creating a wider tipping axis. However, this massive footprint disqualifies it from tight urban alleys, narrow industrial corridors, or small residential job sites. You cannot deploy a machine if the outriggers cannot fully extend according to the manufacturer's load chart specifications. Boom trucks navigate tight spaces easily, but you sacrifice the heavy lifting power and extended radius stability required for major structural work. You must measure the exact square footage available for outrigger deployment before selecting the machine.
Operator requirements and compliance also differ significantly. Driving a commercial chassis typically requires a Commercial Driver's License (CDL), depending heavily on the Gross Vehicle Weight Rating (GVWR) and air brake configurations. Operating the boom requires National Commission for the Certification of Crane Operators (NCCCO) certifications. You must ensure your operators hold the correct credentials, medical cards, and endorsements for both driving the specific chassis and operating the specific type of crane boom. Fixed cab and swing cab operations require different testing and certification levels. Do not assume an operator certified on a fixed-cab boom truck is legally permitted to operate a swing-cab hydraulic crane.
Evaluating overall value and fleet selection requires strategic foresight into your daily operational expenditures. A boom truck offers lower mobilization costs, reduced fuel consumption, and high efficiency for multi-stop schedules. It often makes sense to purchase one for a company fleet if your daily operations involve sub-40-ton lifts and frequent travel. Maintenance is also streamlined, as commercial chassis parts are readily available at standard truck dealerships. A hydraulic truck crane commands a premium operational rate for its massive capacity and requires specialized parts from the crane manufacturer. For specialized, one-off heavy lifts, renting this equipment from a dedicated crane service provider is usually the most efficient strategy to manage capital expenditures.
Evaluation Metric | Boom Truck Mounted Crane | Hydraulic Truck Crane |
|---|---|---|
Chassis Architecture | Standard Commercial Truck Chassis | Purpose-Built Heavy Crane Carrier |
Typical Lift Capacity | 10 to 54 Tons | 40 to 100+ Tons |
Setup & Deployment Time | Rapid (Under 15 minutes) | Extended (Requires counterweight assembly) |
Operational Footprint | Compact (Ideal for tight urban/residential spaces) | Large (Requires wide outrigger spread) |
Personnel Lifting Capability | Highly common (With OSHA-compliant man-basket) | Rarely utilized (Strictly material handling) |
Highway Mobility | Standard highway speeds, rarely needs permits | Slower speeds, often requires overweight permits |
Maintenance Sourcing | Standard commercial truck dealerships | Specialized crane manufacturer networks |
Ground bearing pressure represents a critical, often overlooked risk in mobile lifting operations. Outrigger placement concentrates the entire weight of the machine, the counterweights, and the suspended load onto four relatively small contact points. Ground failure during a lift leads to immediate, catastrophic tipping. You must mitigate this by calculating the maximum ground bearing pressure accurately before deployment. Utilize appropriate timber or composite crane mats to distribute the concentrated point load over a much larger surface area. Hydraulic cranes exert significantly higher point loads, drastically increasing the risk of punching through residential driveways, sidewalks, underground utility vaults, and light commercial concrete. Always verify the structural competence of the soil and surface before deploying outriggers. If you are setting up on newly backfilled soil, you must compact the area and use oversized mats to prevent settling during the lift.
Weather and wind load considerations impact long-boom operations severely. Wind exerts lateral force on both the extended boom and the suspended load, acting like a sail. This dynamic loading can push the equipment outside its safe operating parameters in seconds, causing structural failure or side-loading the boom. You must consult the manufacturer's specific wind speed load chart deductions. Both equipment types require mandatory operational pauses when wind speeds exceed safe thresholds. Do not rely on ground-level wind speeds; wind velocity increases significantly at higher elevations where the boom tip operates. A load with a large surface area, like a precast wall panel, will catch the wind and swing violently, transferring dangerous side-loads directly into the boom structure.
Electrical hazards pose a lethal threat during any mobile lifting operation. Power line contact remains a leading cause of crane-related fatalities. You must establish and maintain strict Minimum Approach Distances (MAD) as dictated by OSHA regulations. For lines up to 50 kV, you must maintain a minimum clearance of 10 feet. For higher voltages, this distance increases significantly. Utilize dedicated spotters whose sole responsibility is monitoring the distance between the boom tip, the load line, and the power lines. Never assume a line is dead; treat all overhead wires as energized until the utility company physically grounds them and confirms de-energization in writing.
The danger of stretching the load chart cannot be overstated. Pushing equipment to its absolute limit to save mobilization time or avoid renting a larger machine is a highly dangerous practice. Operating at 99 percent of capacity leaves zero margin for error. Sudden wind gusts, slight radius changes due to boom deflection, or dynamic shock loading from a slipping rigging component can cause immediate structural failure. Advocate for a strict safety margin on every lift. If a planned lift pushes a smaller machine to its limit, you must upgrade to a hydraulic truck crane to maintain safe operational tolerances and protect your crew.
Avoid these common rigging and operational mistakes that exacerbate site risks:
Failing to deduct the weight of the hook block, heavy wire rope, and spreader bars from the gross capacity calculation.
Ignoring the dynamic loading effects caused by stopping a load too quickly during a rapid descent, which multiplies the force exerted on the boom.
Operating on a slight incline without properly leveling the chassis, which shifts the center of gravity and completely invalidates the manufacturer's load chart.
Bypassing the crane's Load Moment Indicator (LMI) computer to force a lift outside of safe parameters.
The choice between a hydraulic truck crane and a boom truck is not about one machine being inherently superior to the other. It is entirely about matching the machine's load chart, mobility profile, and operational versatility to your specific site conditions and lift data. Default to a boom truck for highly mobile, sub-40-ton lifts, aerial personnel work, and tight residential spaces. Escalate to a hydraulic truck crane for static, heavy, or extreme-radius material lifts where maximum stability is required.
Take the following steps to secure the right equipment for your next project:
Finalize your comprehensive lift plan, documenting the exact gross load weight, maximum horizontal radius, and required hook height.
Conduct a physical site walk to measure access routes, identify overhead power line clearances, and verify outrigger footprint availability.
Calculate the required ground bearing pressure and procure the necessary crane mats to protect the site surface and prevent ground failure.
Consult with a certified lift engineer or reputable crane rental provider to verify load charts against your specific lift parameters before finalizing procurement.
A: The typical lifting capacity ranges from 10 tons to 54 tons. However, you must remember that this maximum capacity only applies at the absolute shortest radius. As the boom extends horizontally, the lifting capacity drops significantly. Always consult the specific load chart for your required reach.
A: Yes. Many models can be equipped with OSHA-compliant man-baskets for aerial work. This makes them highly versatile for utility fleets, sign maintenance, and aerial structural inspections. Standard hydraulic truck cranes are generally restricted to material handling and rarely used for personnel lifting.
A: It depends on the Gross Vehicle Weight Rating (GVWR) of the commercial chassis. Typically, any vehicle with a GVWR over 26,000 lbs, or one equipped with air brakes, requires a Commercial Driver's License (CDL) to operate on public roads. Always verify local regulations.
A: A boom truck features a rapid drive-up and lift design, often allowing complete outrigger deployment and setup in under 15 minutes. A hydraulic crane requires a deliberate assembly process, including deploying multi-stage outriggers and attaching supplemental counterweights, which can easily take over an hour.
A: While they are road-legal, they often face strict logistical friction. They travel at lower speeds than commercial chassis trucks and frequently require special routing, overweight or oversize permits, and escort vehicles depending on local municipal jurisdiction and specific axle weights.
A: A boom truck utilizes a highway-capable commercial chassis designed for on-road travel at normal traffic speeds. A rough terrain crane features an off-road, 4x4, non-highway-speed design with oversized tires, built specifically to navigate unimproved job sites, deep mud, and harsh terrain.
A: The lift radius changes the tipping axis dynamics dramatically. Hydraulic cranes maintain better lifting capacity at extended radii because they utilize heavier supplemental counterweights and wider outrigger stances. If your lift requires a long horizontal reach, a hydraulic crane provides superior stability.
