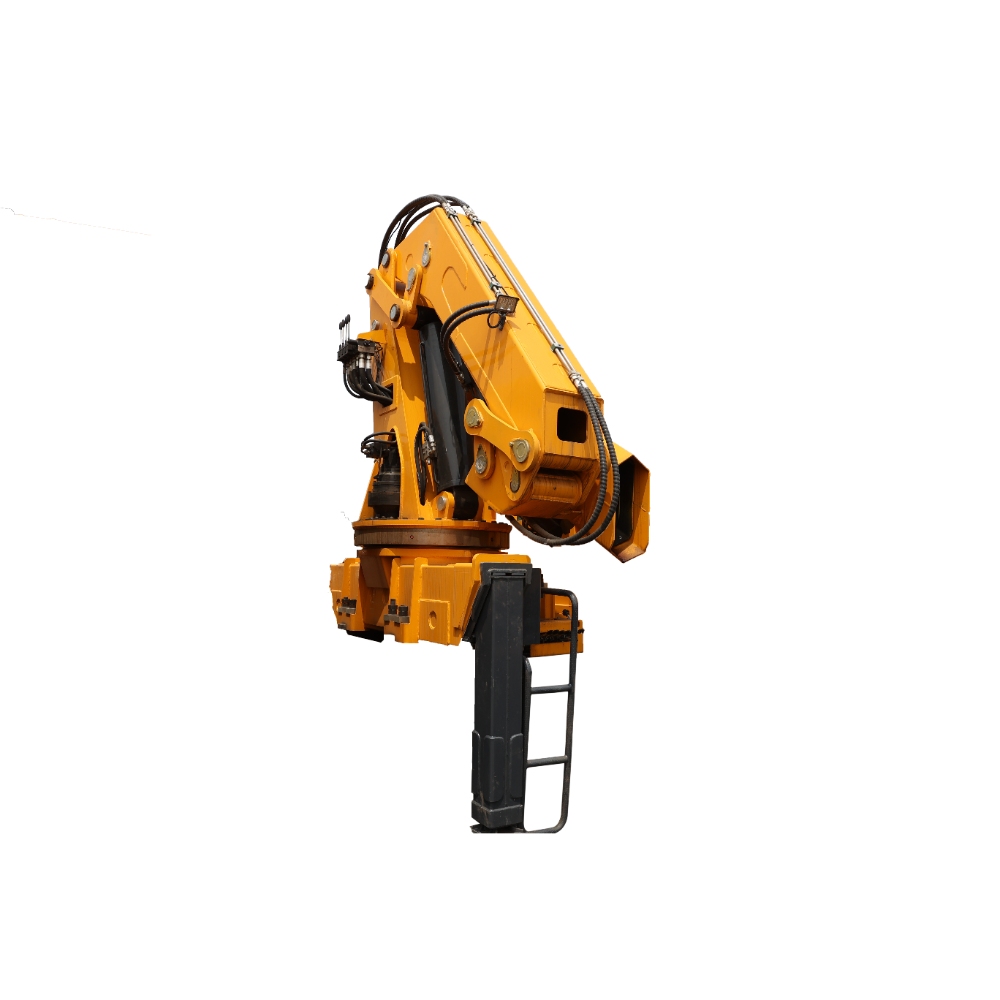

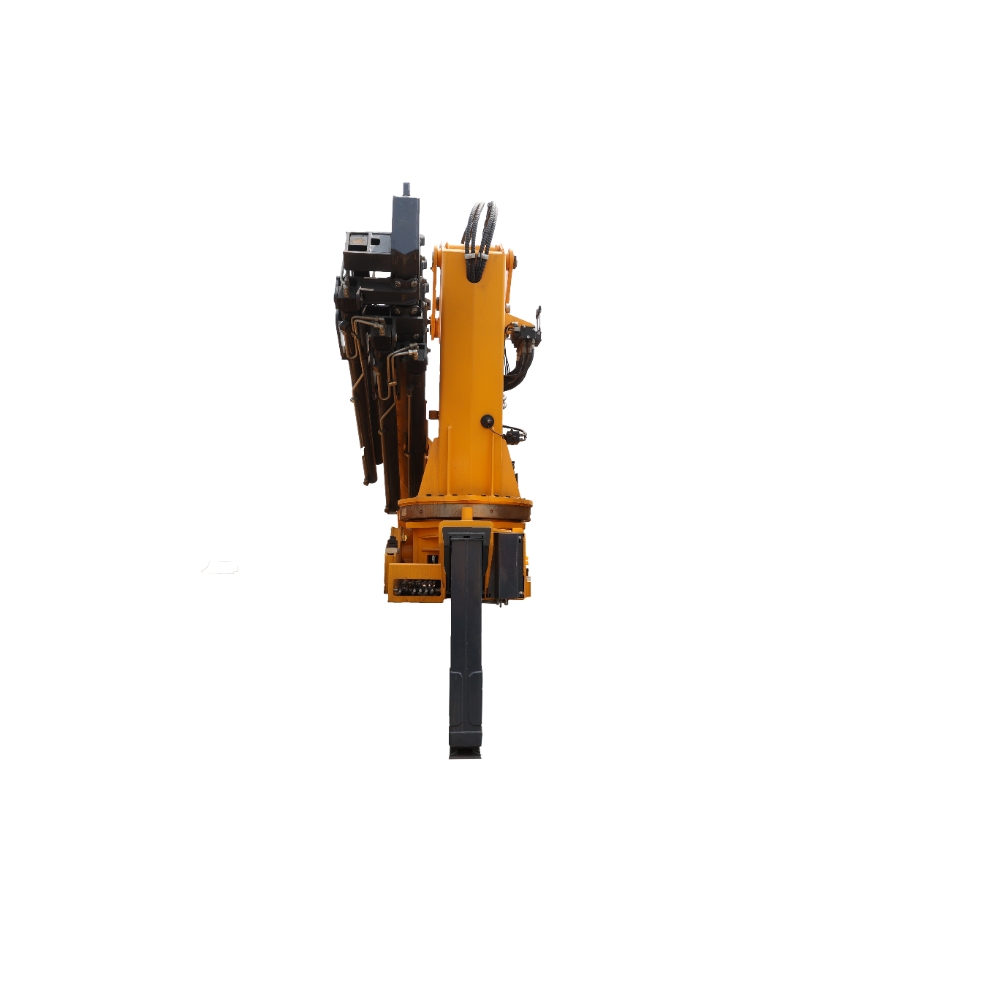

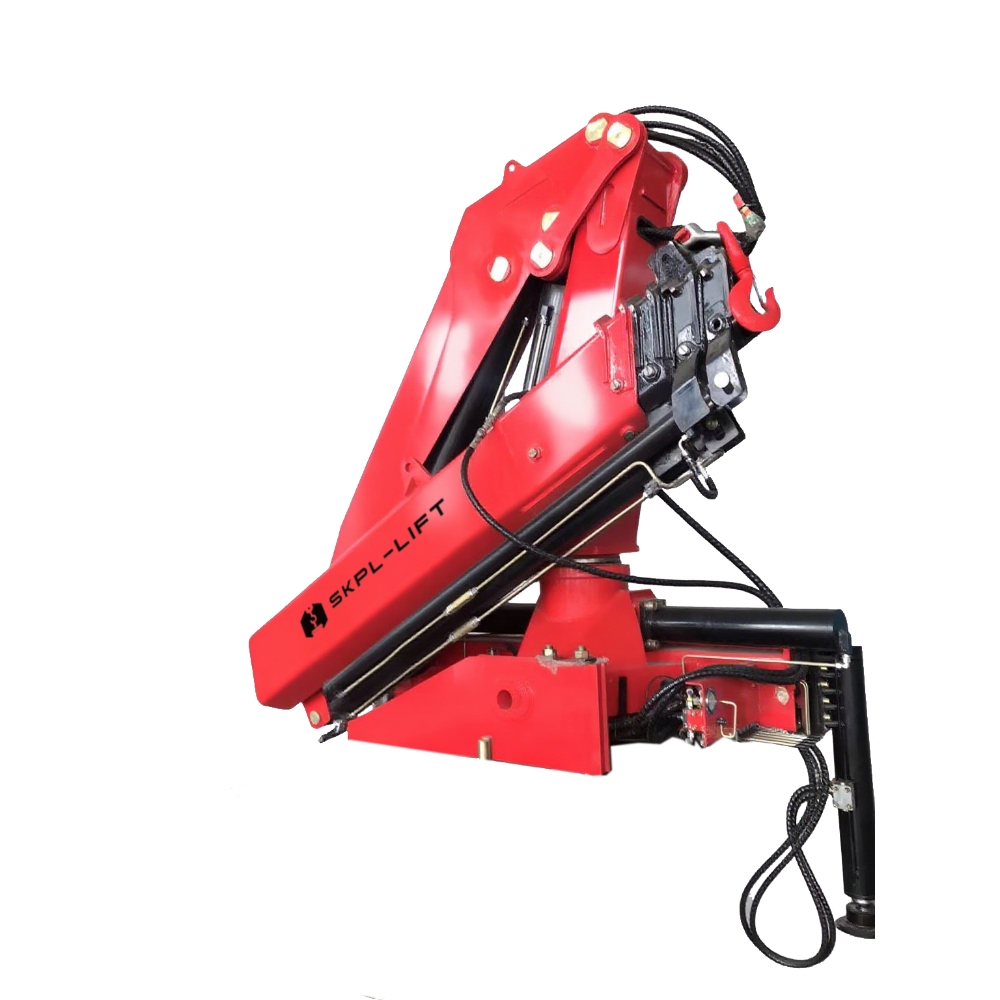

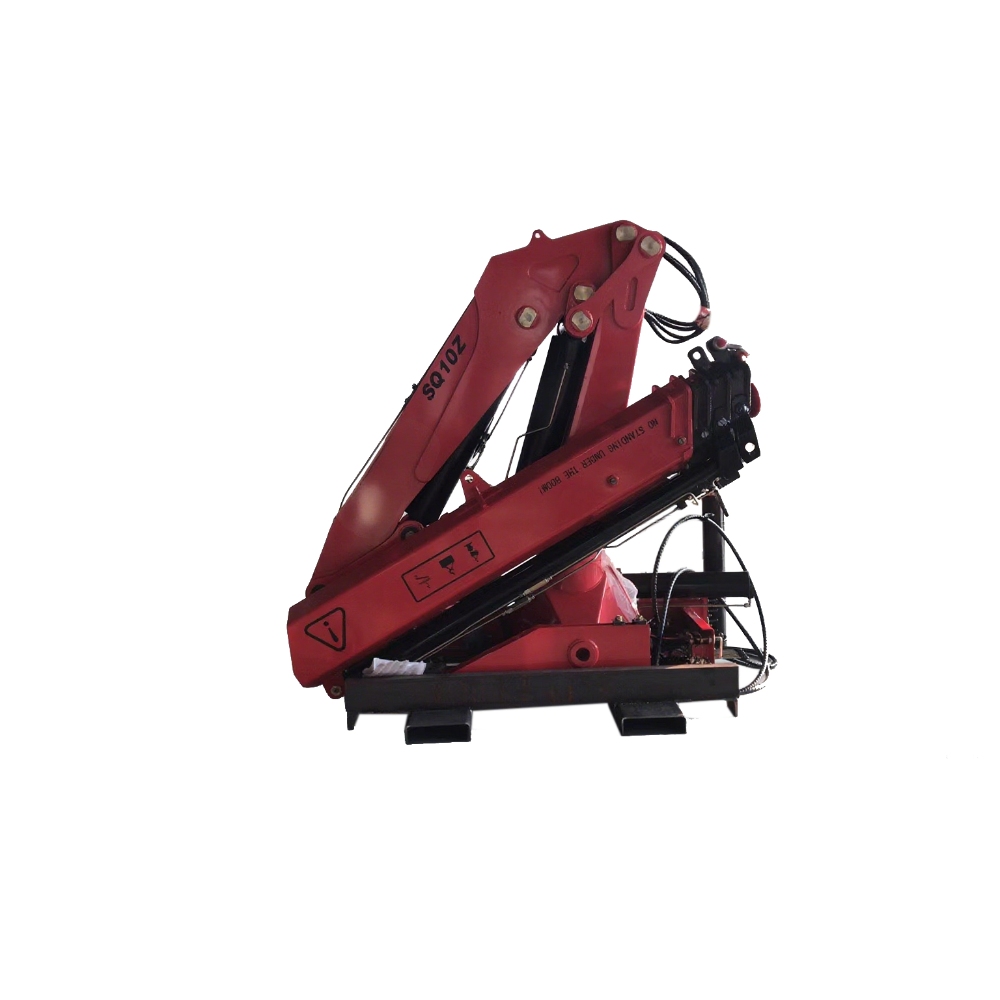

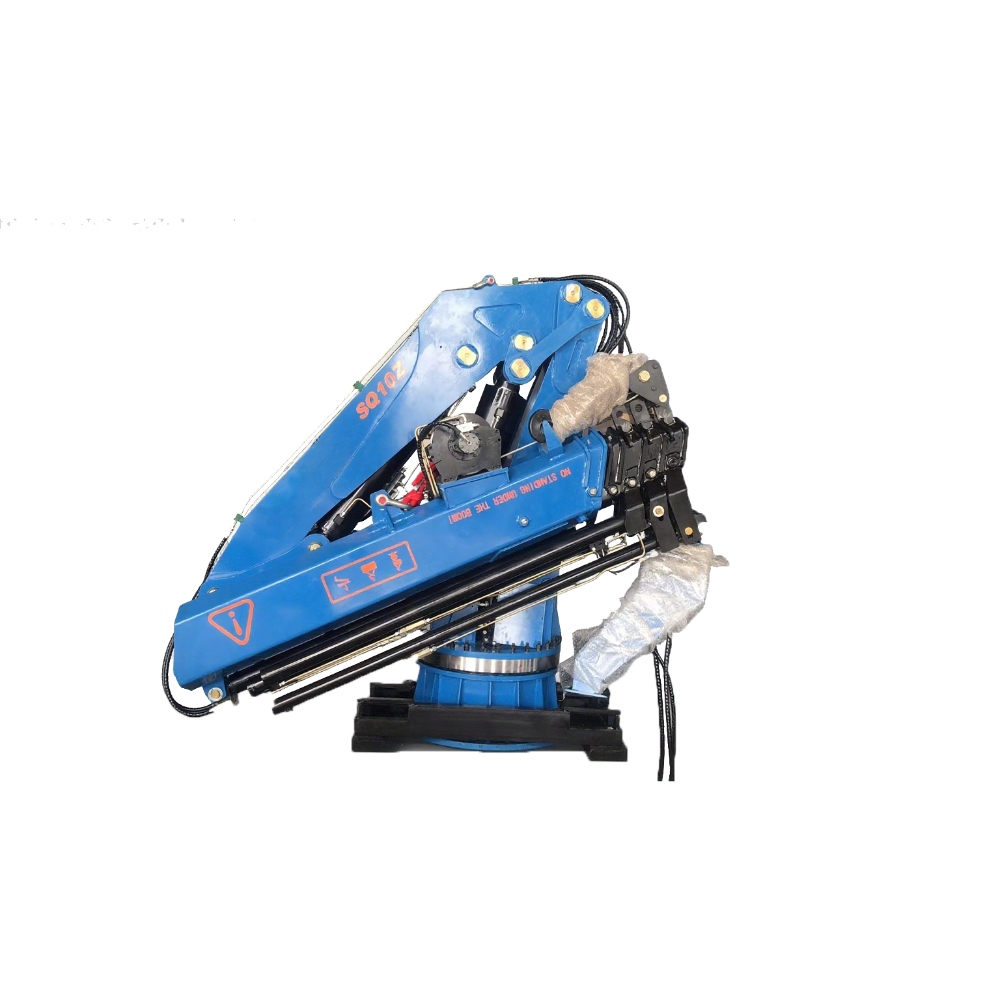

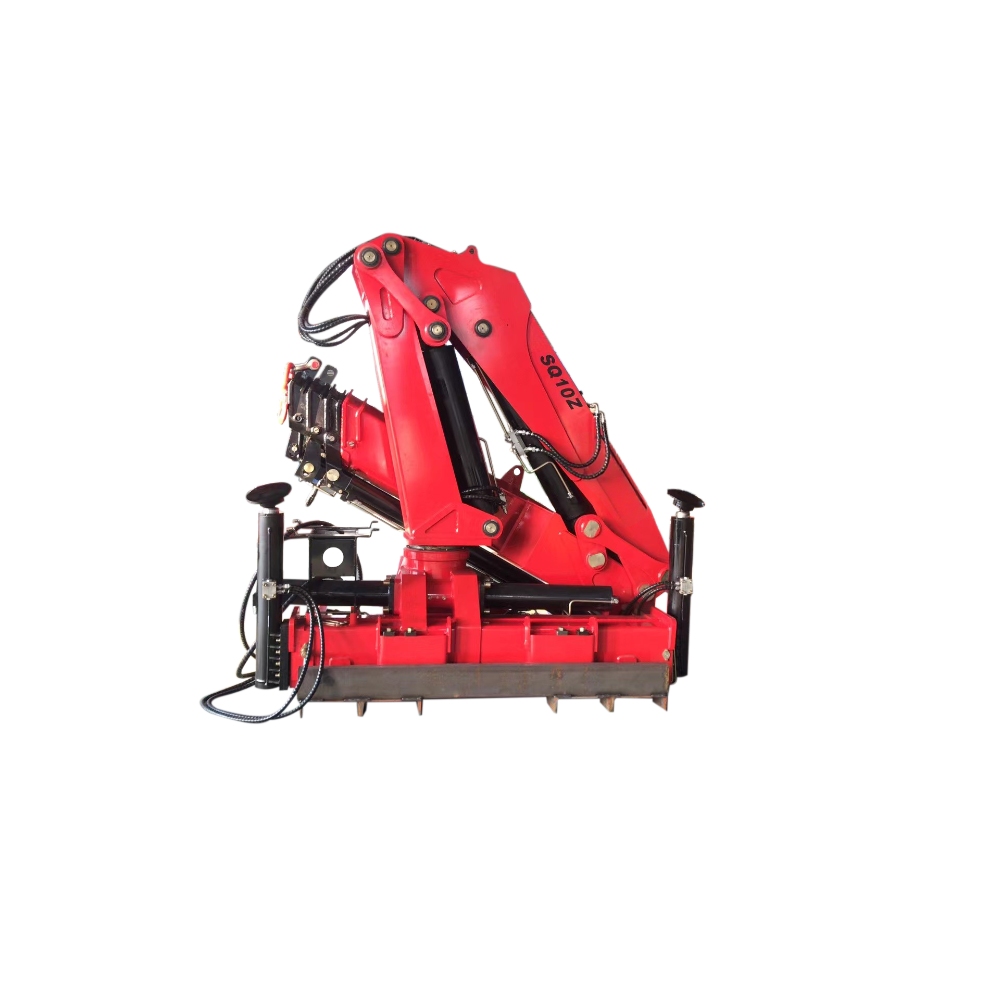

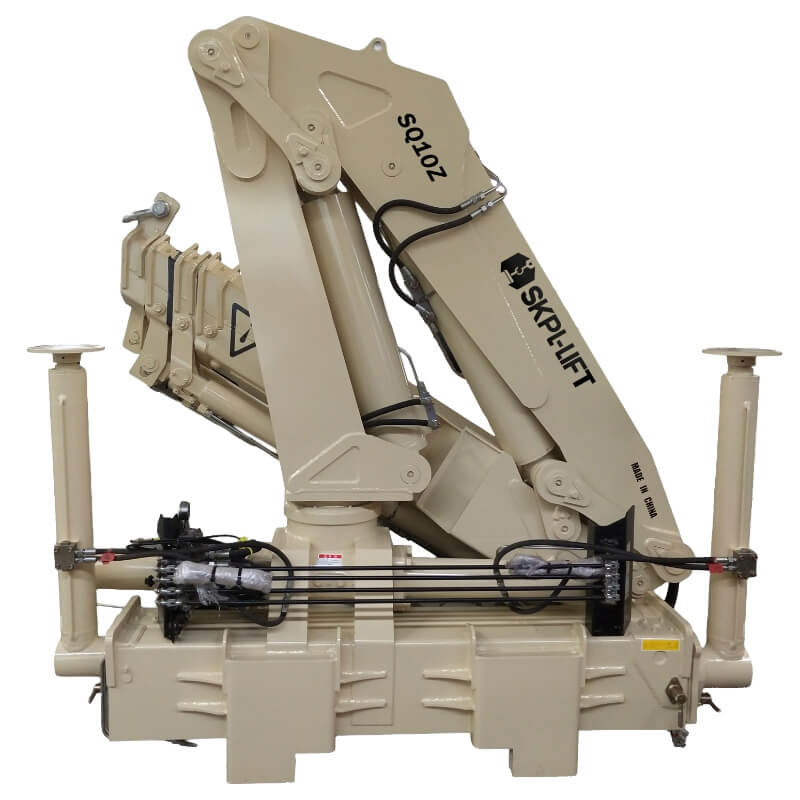

The SKPL-LIFT 10 Ton Knuckle Boom Truck Crane is engineered for the most demanding heavy-duty lifting operations in construction, industrial, and port logistics environments. Its reinforced multi-section telescopic boom, constructed from ultra-high-tensile steel, provides exceptional load capacity and resistance to bending under extreme conditions. The crane features six heavy-duty hydraulic outriggers for unmatched stability on uneven or challenging terrain. Integrated with a high-capacity lifting winch and optional hydraulic clamps or attachments, it allows precise handling of oversized machinery, steel structures, and shipping containers. With a robust slewing mechanism and extended reach, this crane combines strength, flexibility, and efficiency, offering a safe, reliable, and cost-effective solution for large-scale lifting projects that smaller models cannot handle.
| Quantity: | |
|---|---|
SQ10Z
SKPL-LIFT
The 10 Ton Knuckle Boom Truck Mounted Crane is a high-performance lifting solution engineered for heavy-duty operations in construction, industrial, and port logistics environments. Built with ultra-high-tensile steel and a reinforced telescopic boom, this crane combines strength, flexibility, and efficiency to handle oversized machinery, steel structures, and shipping containers. Its advanced hydraulic system and heavy-duty outriggers ensure safe and precise operation, making it ideal for large-scale projects that exceed the capacity of smaller models.
Despite its 10-ton lifting capacity, the 10 Ton Knuckle Boom Truck Mounted Crane is one of the lightest in its class, simplifying installation on medium-duty trucks and reducing vehicle load stress. Its optimized weight-to-strength ratio ensures high performance without compromising stability or durability.
The crane offers extensive customization options, including optional lifting winches, hydraulic clamps, and specialized attachments. This flexibility allows operators to handle pipes, steel bars, irregular cargo, and complex lifting tasks, tailoring the equipment to specific project requirements.

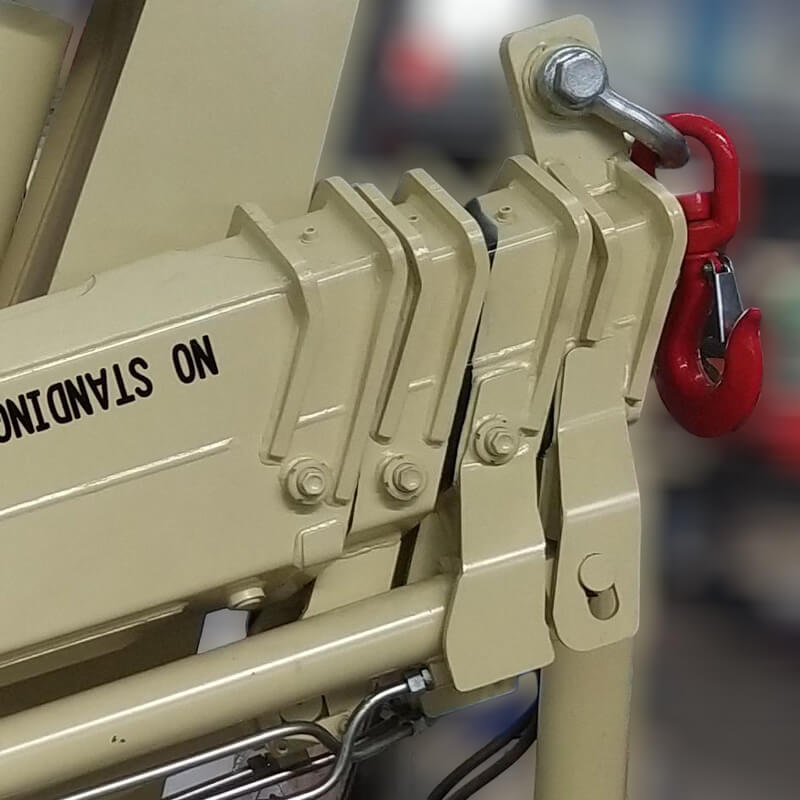

Constructed from high-tensile steel, the multi-section telescopic knuckle boom provides extended outreach and superior bending resistance. It enables precise load positioning in both open sites and confined urban spaces, ensuring safety and efficiency under heavy-duty conditions.
Equipped with optional torque limiters and safety devices, the 10 Ton Knuckle Boom Truck Mounted Crane enhances operational reliability and prevents overload or accidents. Combined with six heavy-duty hydraulic outriggers and a high-performance winch, these features ensure safe operation in high-risk environments.

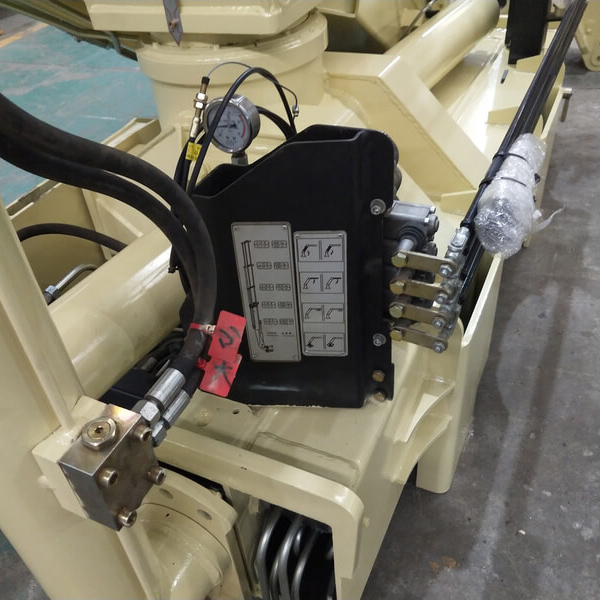

The 10 Ton Knuckle Boom Truck Mounted Crane features a robust hydraulic system with optimized pressure and flow, supporting smooth and responsive control. Its slewing mechanism offers a wide range of rotation, allowing full access to the job site without frequent repositioning. The integrated winch system ensures gentle and controlled load handling, even for oversized or irregular items.
Crafted from ultra-high-tensile steel, the crane’s boom and frame guarantee durability under continuous heavy-duty use. It includes friction brake and disc spring mechanisms for quiet and stable operation, reducing wear and extending the equipment’s lifespan. The lightweight design enhances mobility, enabling quick deployment across multiple job sites.
The 10 Ton Knuckle Boom Truck Mounted Crane is built for lifting large construction materials such as steel beams, concrete modules, and prefabricated components. Its reinforced boom and high-capacity hydraulics make it suitable for multi-story building projects, bridge construction, and industrial plant development.
Ideal for ports, docks, and logistics hubs, the crane efficiently handles containers, machinery, and bulk cargo. Its truck-mounted design provides mobility while heavy-duty outriggers ensure stability, reducing reliance on fixed cranes and improving operational efficiency.
In industrial plants and energy facilities, the 10 Ton Knuckle Boom Truck Mounted Crane safely lifts turbines, transformers, and pipes. Its long outreach and slewing capability allow operators to work around obstacles, making it a versatile tool for installation, maintenance, and relocation of heavy assets.
For forestry and mining industries, the crane handles timber, mining equipment, and bulk minerals. Its high lifting capacity and rugged design enable operation in remote, uneven, or off-road areas where conventional cranes cannot access.

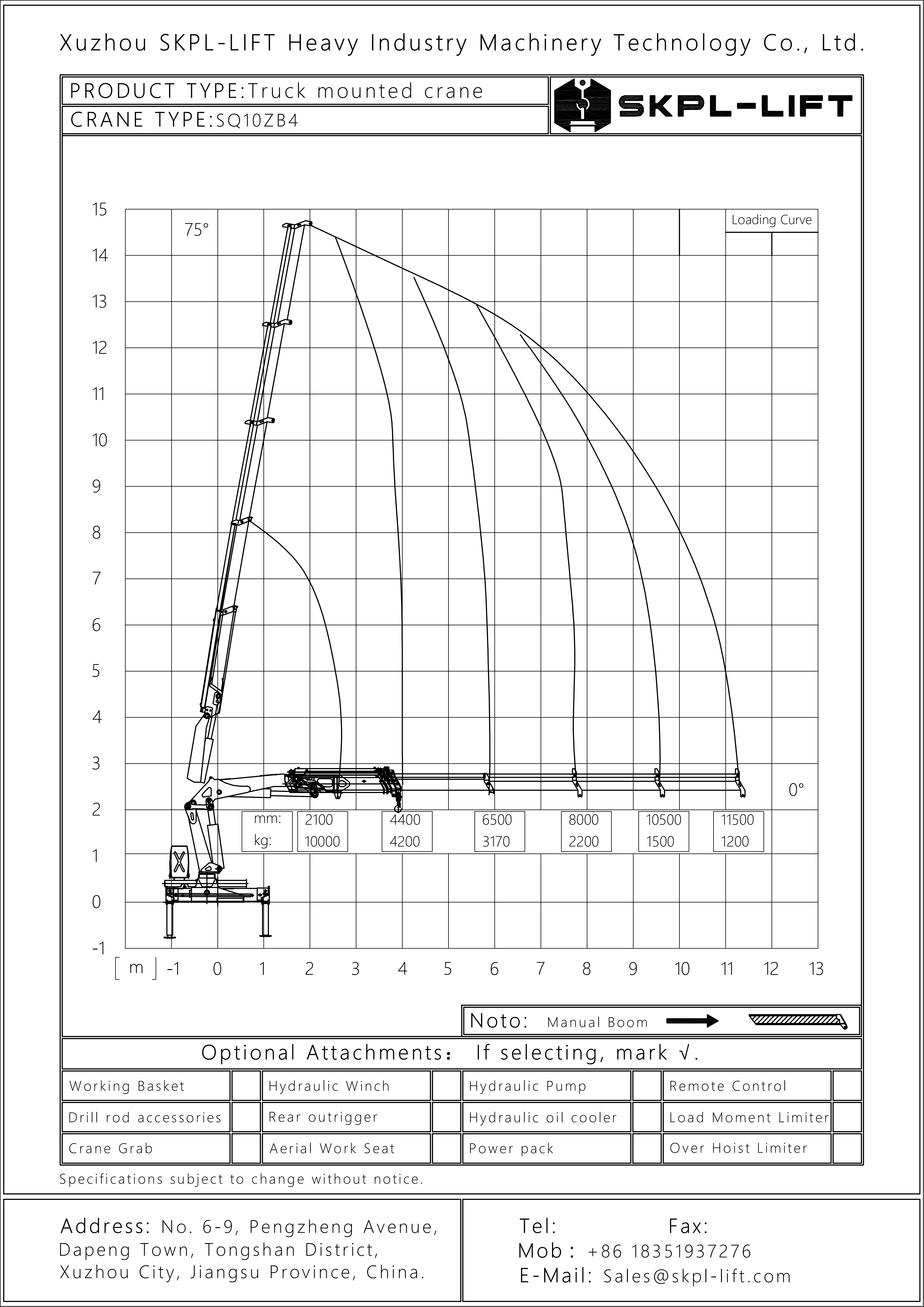

Technical Parameter | |
Installation space | 1200 mm |
Model name | SQ10ZB4 |
Max.Lifting Capacity | 10000 Kg |
Max.Lifting Moment | 21 Ton.m |
Hydraulic System Pressure | 28 Mpa |
Hydraulic System Flow | 40L /min |
Slewing Angle | 360°FR/400° |
Reconmmend Power | 30 Kw |
Oil Tank Capacity | 160 L |
Crane Self Weight | 4450 Kg |
We function as an integrated factory and trading company, providing comprehensive technical support, one-stop procurement, and long-term after-sales service. We welcome customers to visit our factory to learn about our manufacturing capabilities and quality standards.
We support 30% deposit via T/T, MIC platform payment, and L/C (sight letter of credit). Long-term partners receive preferential delivery policies to support their ongoing operations.
Standard SQ10ZB4 models are in stock and delivered within 15 working days after deposit receipt. Customized versions require additional lead time, which will be specified based on order requirements.
Customers receive lifelong online technical support, a 1-year product warranty, and optional paid extended warranty plans. Our team is dedicated to ensuring the reliable performance of your crane throughout its service life.
