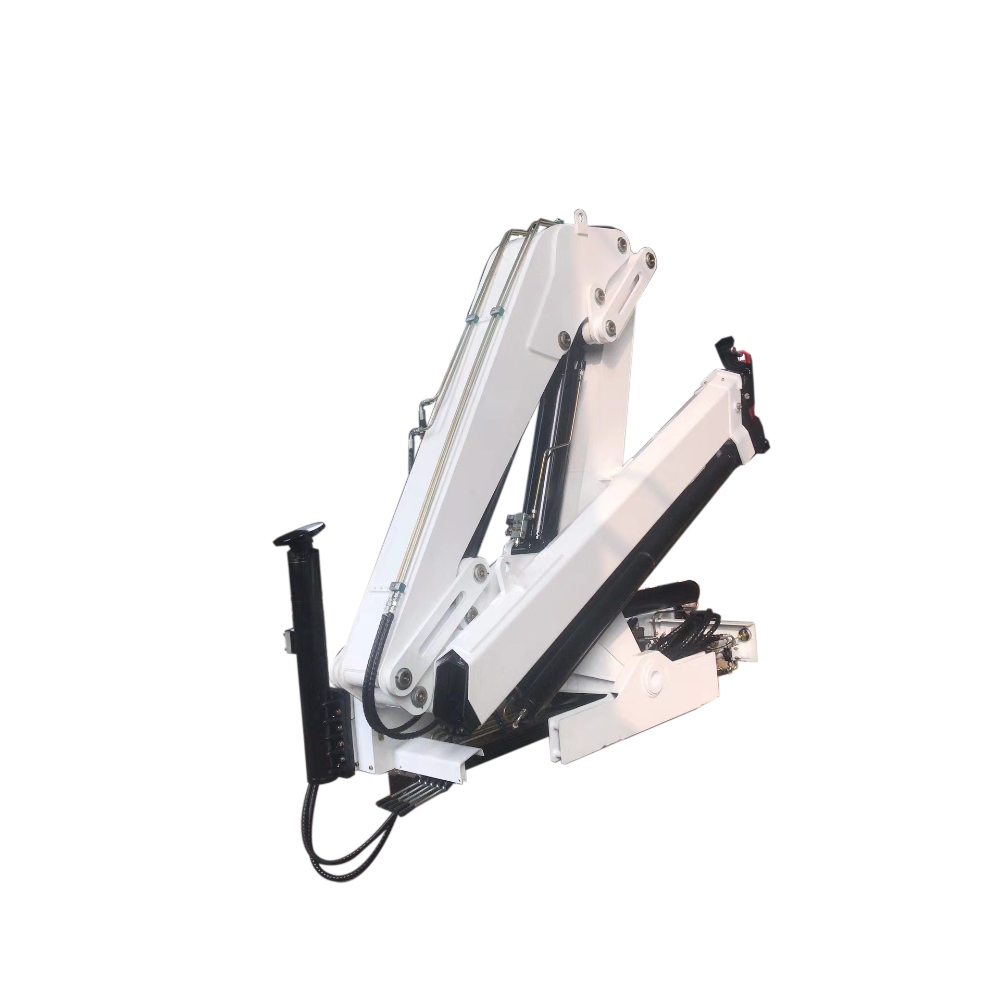

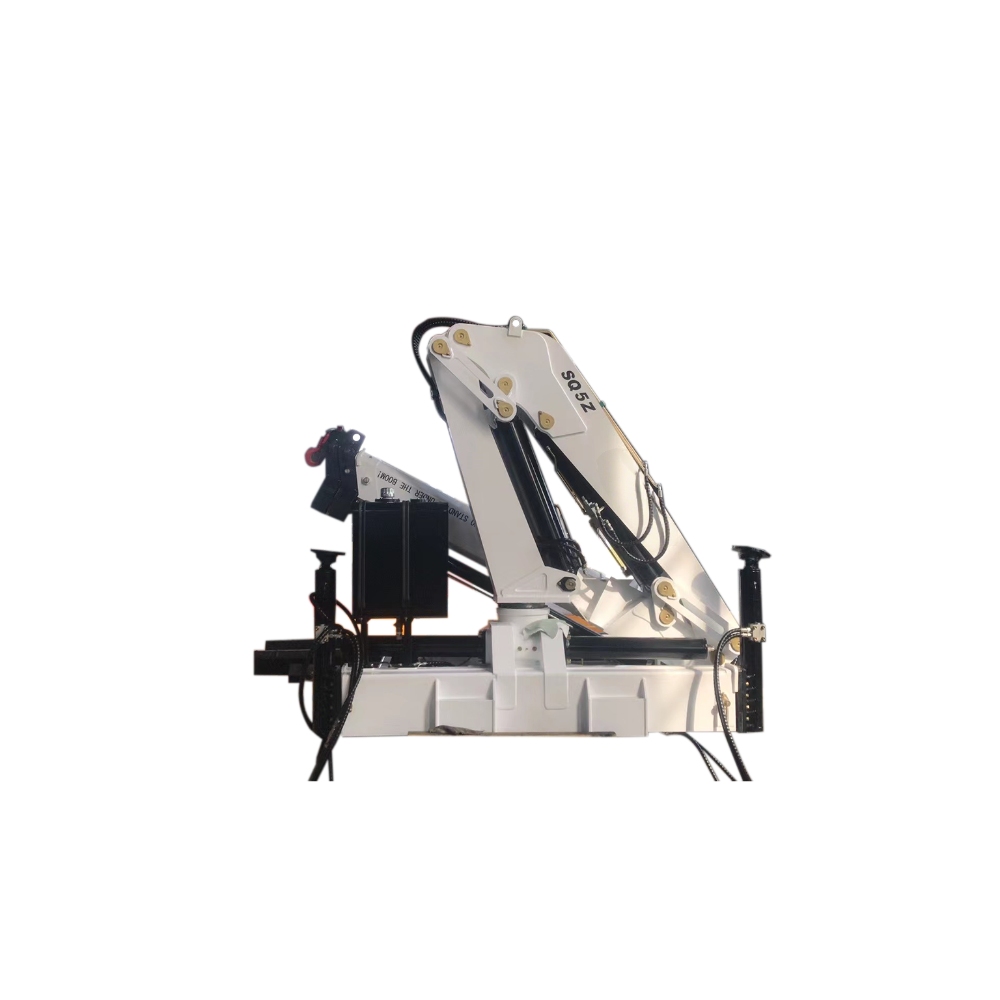

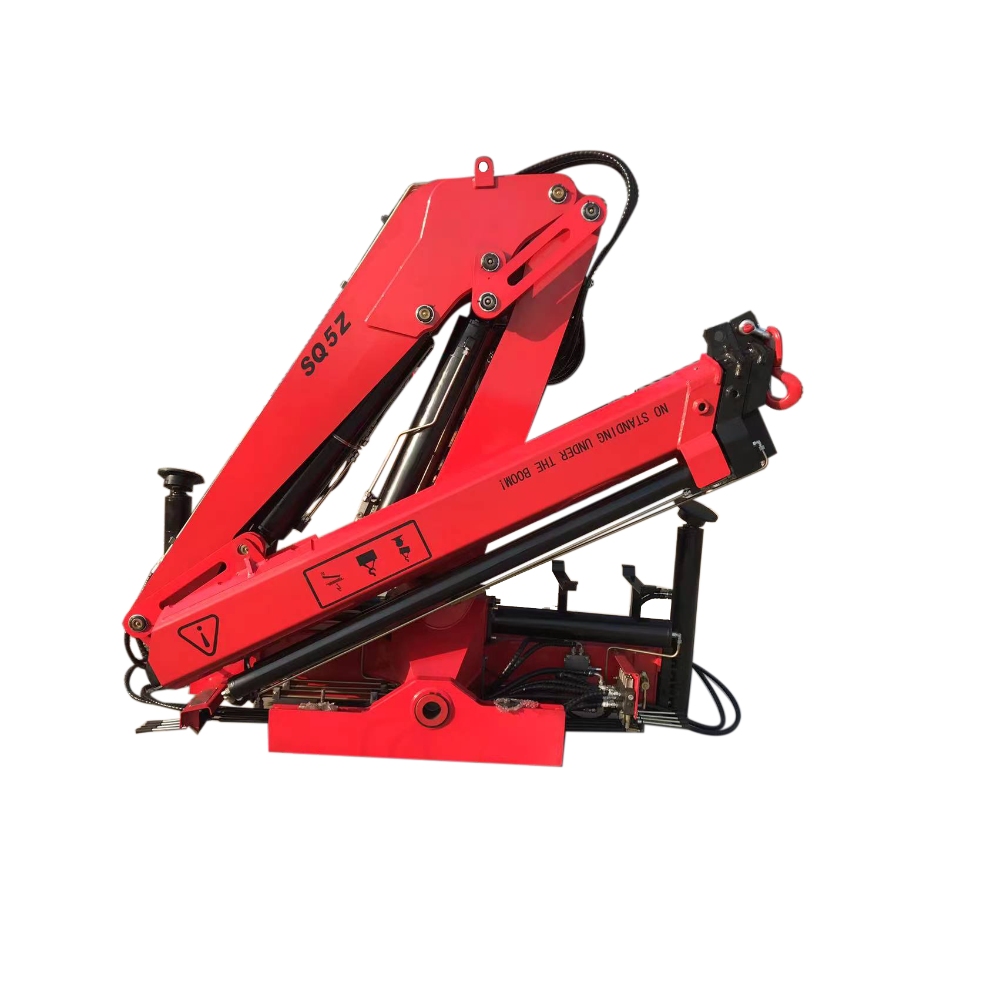

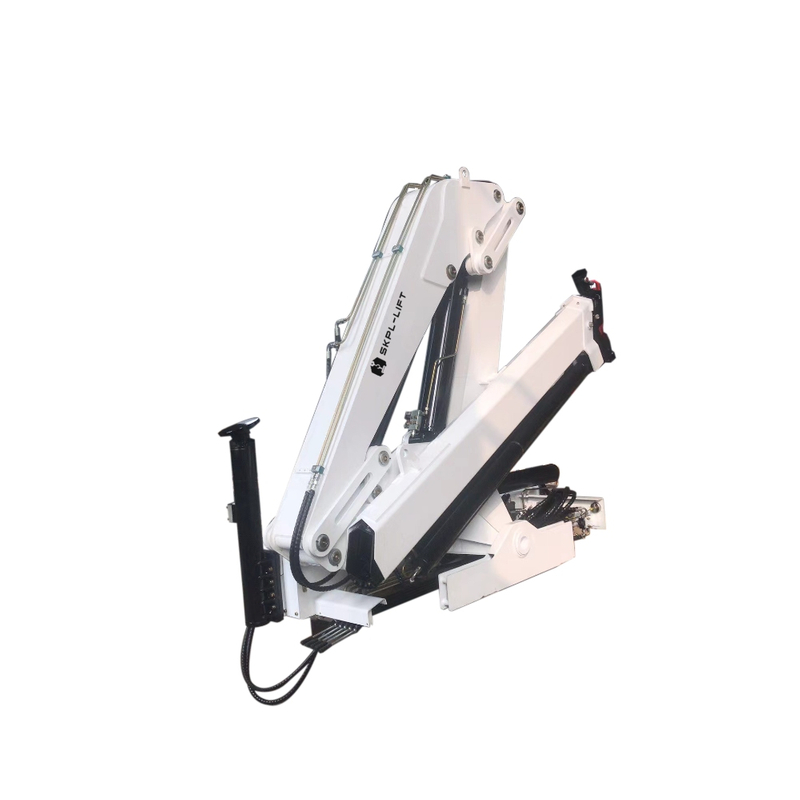

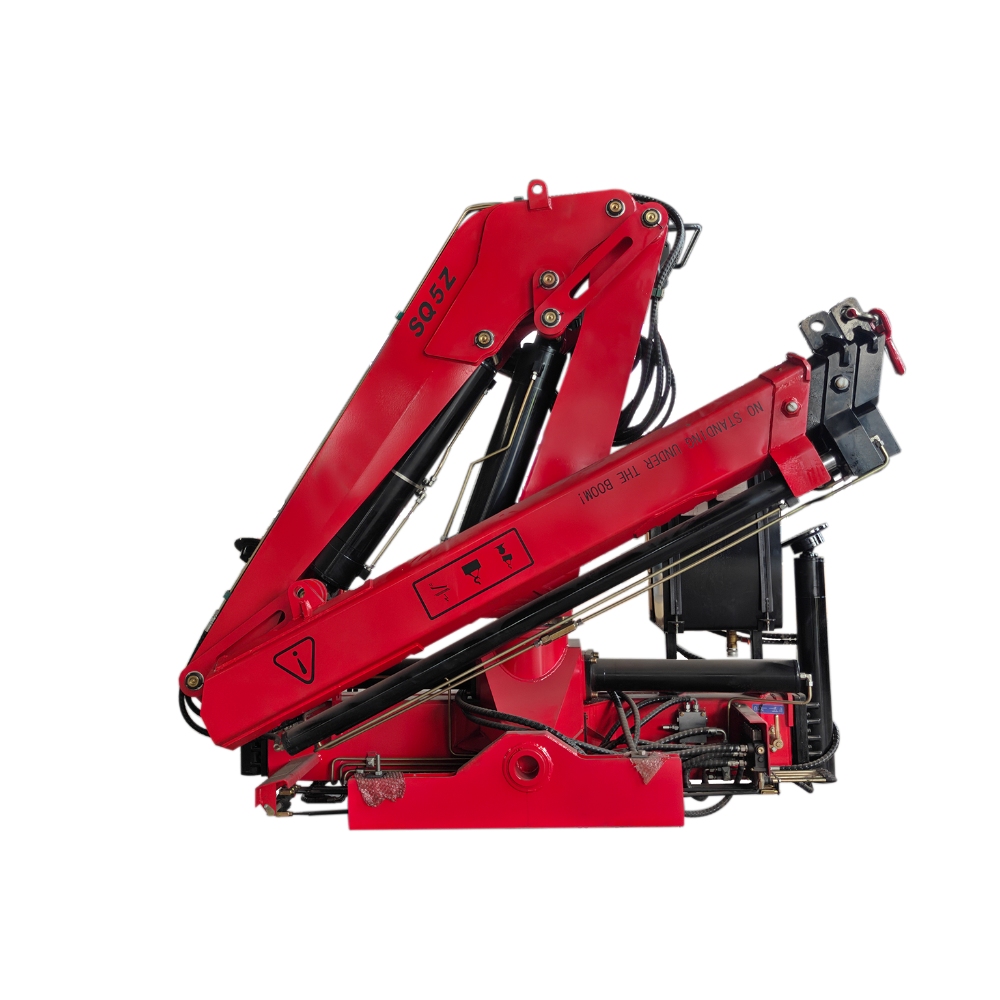

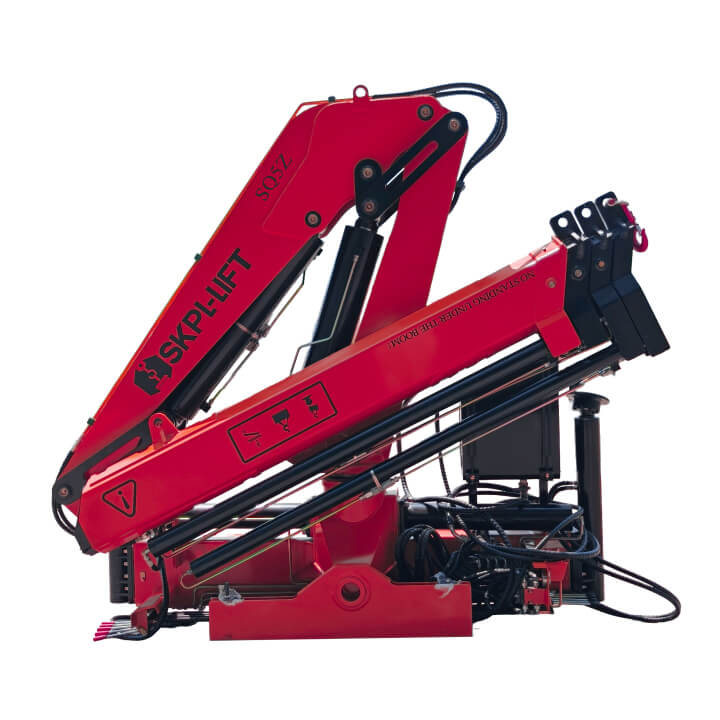

The SKPL-LIFT 5 Ton Knuckle Boom Truck Mounted Crane is a powerful and reliable lifting solution engineered for demanding operations. Its reinforced multi-section knuckle boom is manufactured from high-tensile steel, providing superior load-bearing capacity and enhanced durability under heavy-duty use. Equipped with four heavy-duty hydraulic outriggers, it delivers exceptional stability even on uneven terrain. The crane integrates a high-capacity lifting winch and precision hydraulic controls, ensuring smooth handling of larger loads. With a robust slewing system and extended outreach, it is well-suited for construction sites, steel handling, container loading, and industrial projects—offering a safe, efficient, and cost-effective solution for medium to heavy lifting tasks.
| Quantity: | |
|---|---|
SQ5Z
SKPL-LIFT

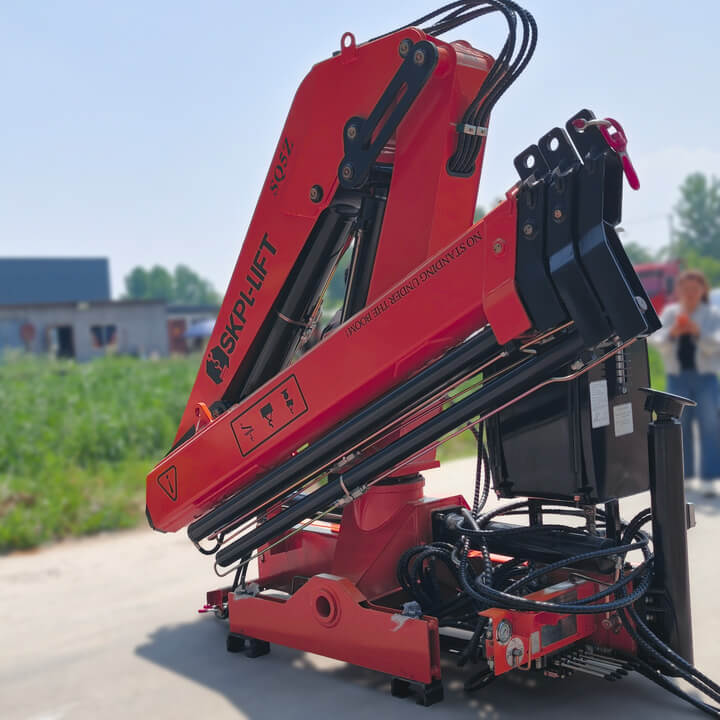

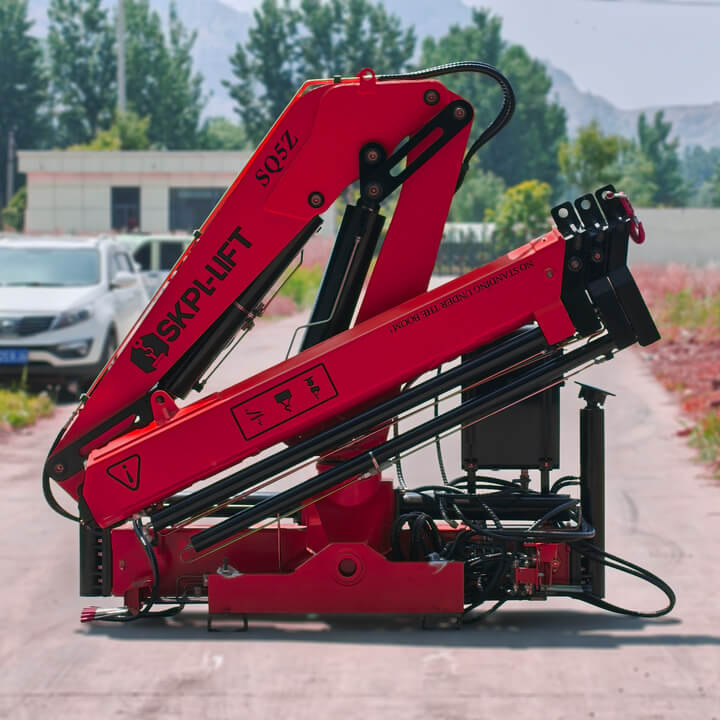

The SKPL-LIFT SQ5ZB3 5 Ton Knuckle Boom Truck Crane is a compact yet powerful lifting solution tailored for medium to heavy-duty operations across construction, logistics, and industrial sectors. With a maximum lifting capacity of 5,000 kg and a multi-section knuckle boom made from high-tensile steel, this crane delivers superior load-bearing capacity and durability. Designed for easy installation on medium-duty trucks without excessive modifications, it combines flexibility and stability to handle diverse lifting tasks in confined or uneven workspaces.
Despite its 5-ton lifting capacity, the 5 Ton Knuckle Boom Truck Mounted Crane features a space-saving design with a 1,070 mm installation space, making it suitable for medium-duty trucks. Its optimized weight-to-strength ratio ensures robust performance without compromising vehicle mobility.
Equipped with optional accessories including hydraulic clamps, crane grabs, and remote controls, the crane adapts to complex tasks such as pipe handling, steel bar lifting, and aerial work. This versatility eliminates the need for multiple specialized machines, reducing operational costs.
Four heavy-duty hydraulic outriggers provide enhanced ground support, ensuring stability on rough or sloped surfaces. The integrated high-capacity winch enables smooth handling of bulky loads, minimizing operational risks and improving efficiency.

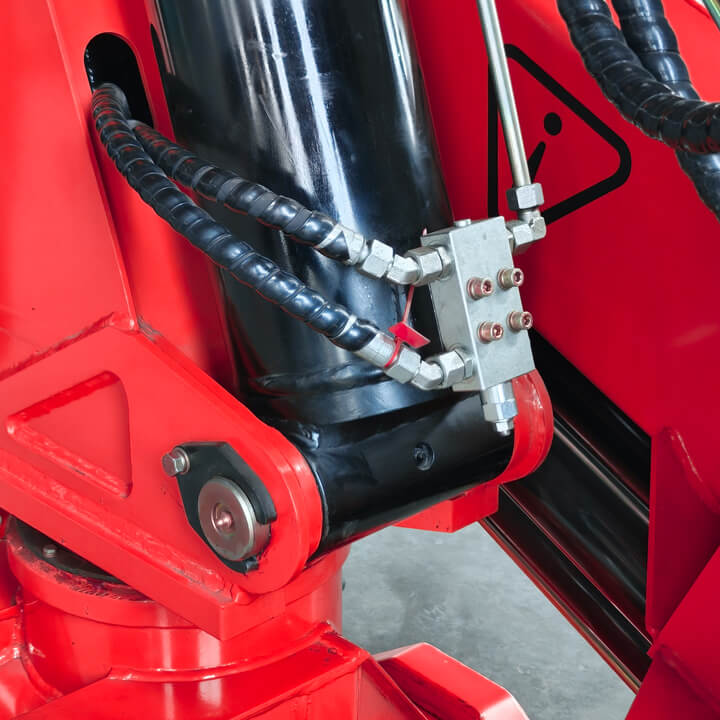

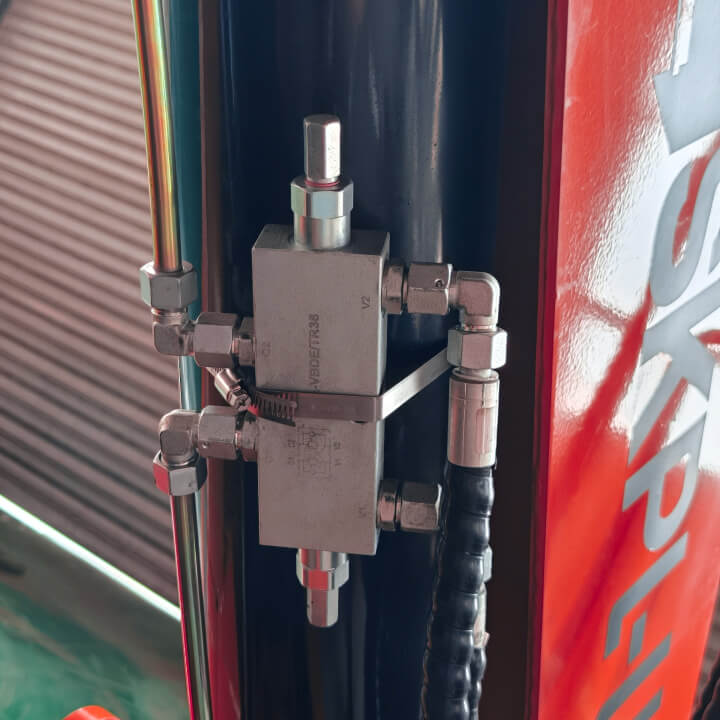

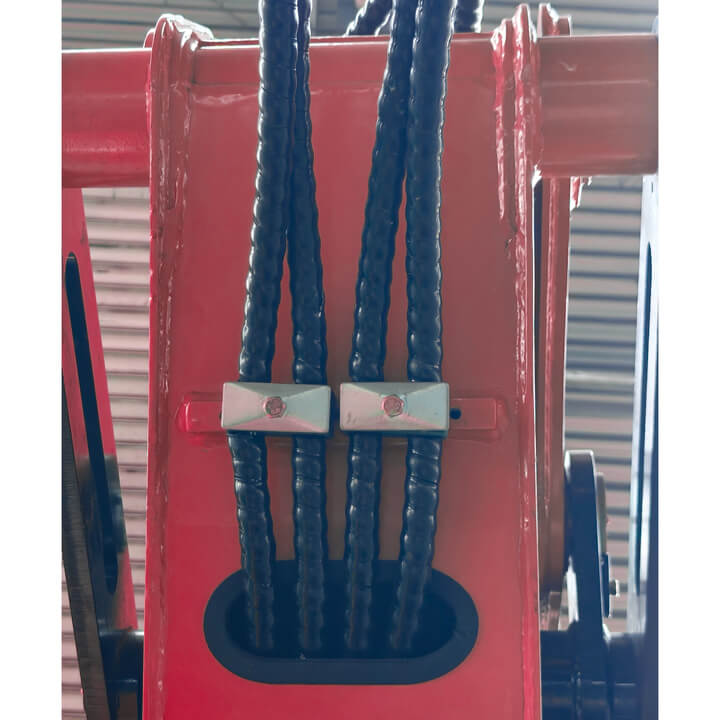

Integrating a friction brake and disc spring mechanism, the 5 Ton Knuckle Boom Truck Mounted Crane operates quietly and steadily. Its reinforced hydraulic system ensures long-lasting performance, reducing downtime and maintenance requirements for continuous workflow.

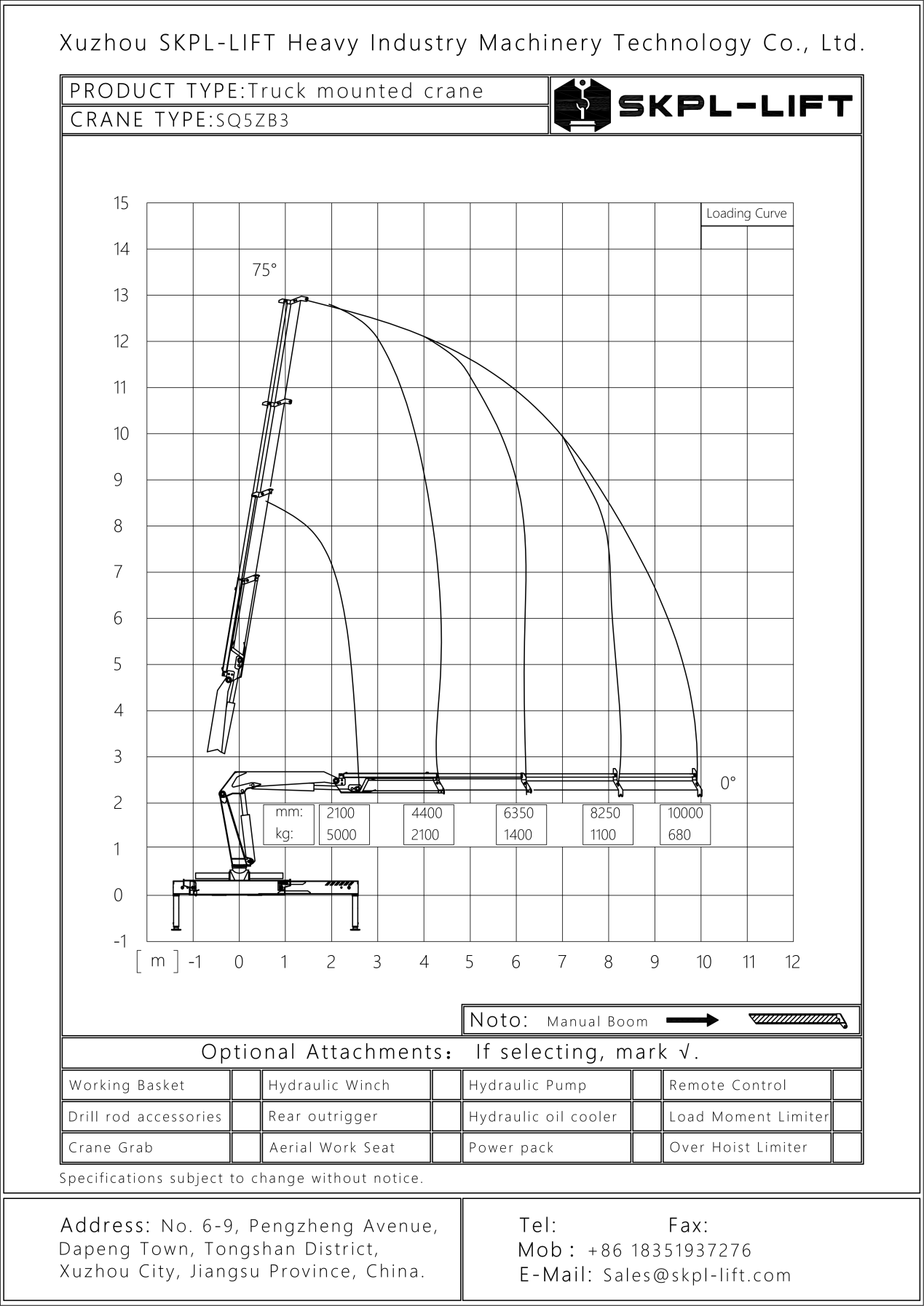

Technical Parameter | |
Installation space | 1070 mm |
Model name | SQ5ZB3 |
Max.Lifting Capacity | 5000 Kg |
Max.Lifting Moment | 10.5 Ton.m |
Hydraulic System Pressure | 28 Mpa |
Hydraulic System Flow | 40L /min |
Slewing Angle | 400° |
Reconmmend Power | 22 Kw |
Oil Tank Capacity | 100 L |
Crane Self Weight | 1800 Kg |
Perfect for handling steel beams, concrete blocks, and heavy machinery at construction sites and industrial facilities. The knuckle boom design enables precise load positioning in confined urban spaces or complex job environments.
Widely used in logistics hubs, seaports, and warehouses for container loading/unloading and bulky cargo handling. Reduces reliance on large fixed cranes, offering flexible on-site mobility and cost-efficient material handling.
Ideal for lifting farm equipment, irrigation systems, fertilizer, and timber in rural areas. Its truck-mounted design ensures access to remote locations, simplifying heavy-load management for agricultural and forestry operators.
Suitable for energy, telecom, and mining sectors, handling transformers, pipelines, and telecom towers. The multi-section knuckle boom provides flexibility for precise installation and maintenance tasks in challenging field conditions.
We have 18 years of experience in crane design, manufacturing, and international trade, exporting products to over 100 countries and regions with consistent customer praise.
We support 30% deposit via T/T, MIC platform payment, and L/C (sight letter of credit). Long-term partners receive preferential delivery terms.
Standard SQ5ZB3 cranes are in stock and delivered within 15 working days post-deposit. Customized orders require 30 working days or more, based on specific requirements.
We provide lifelong online technical support, a 1-year product warranty, and paid extended warranty options to ensure reliable operation and minimal downtime.
