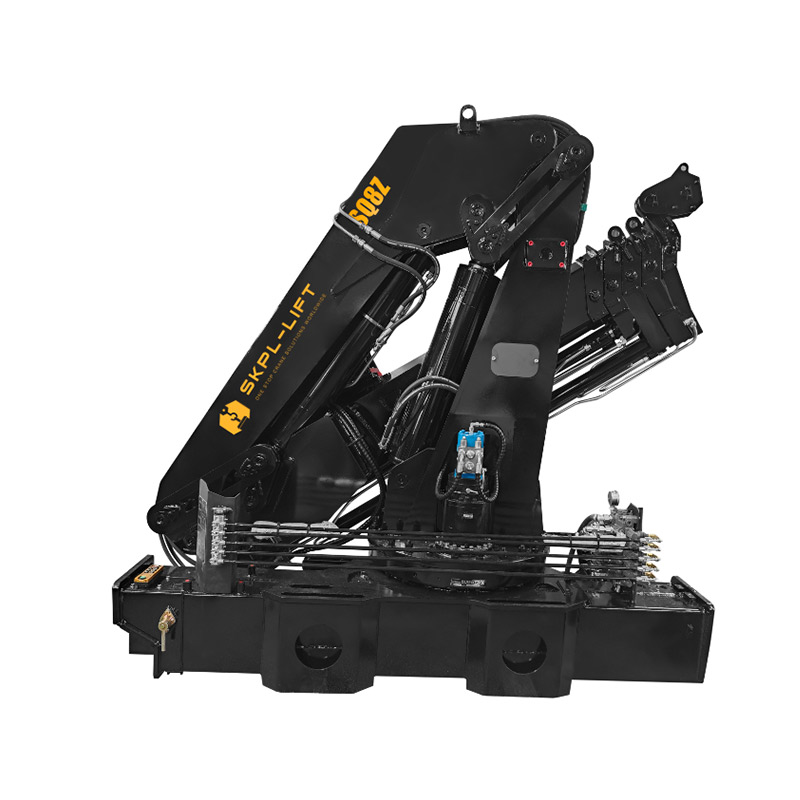

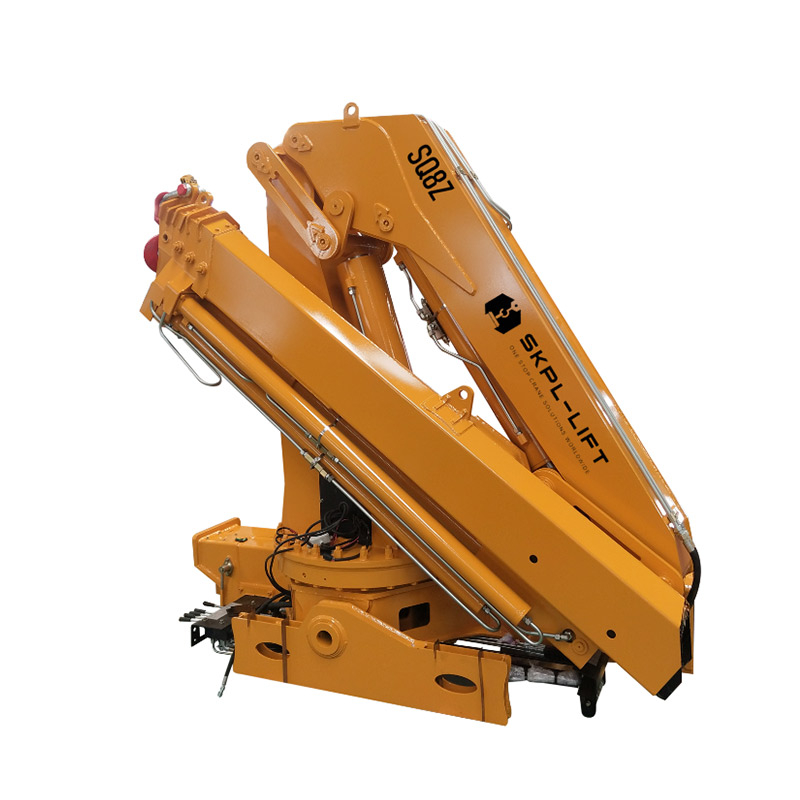

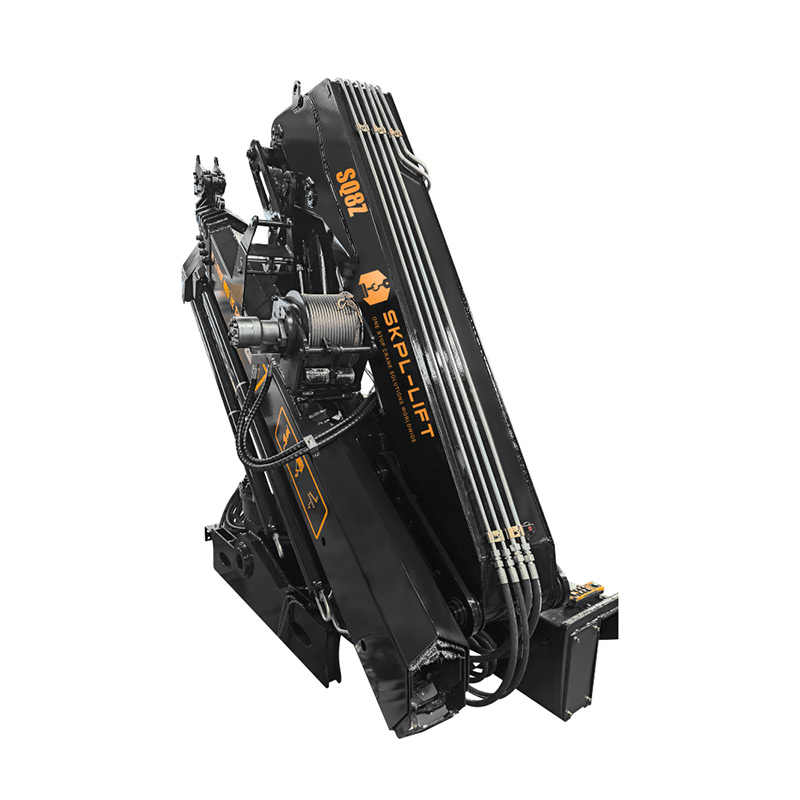

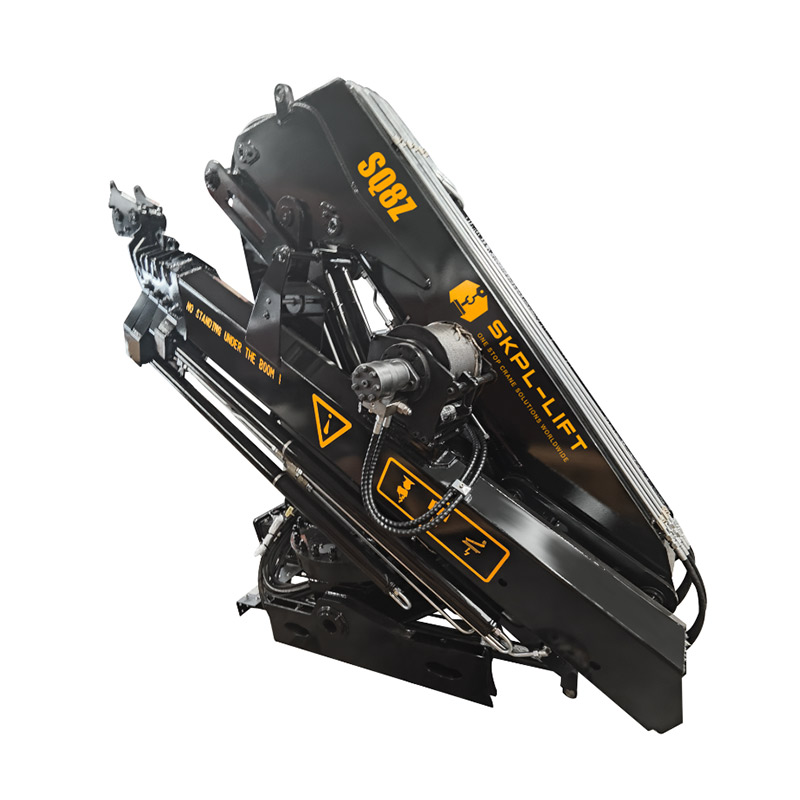

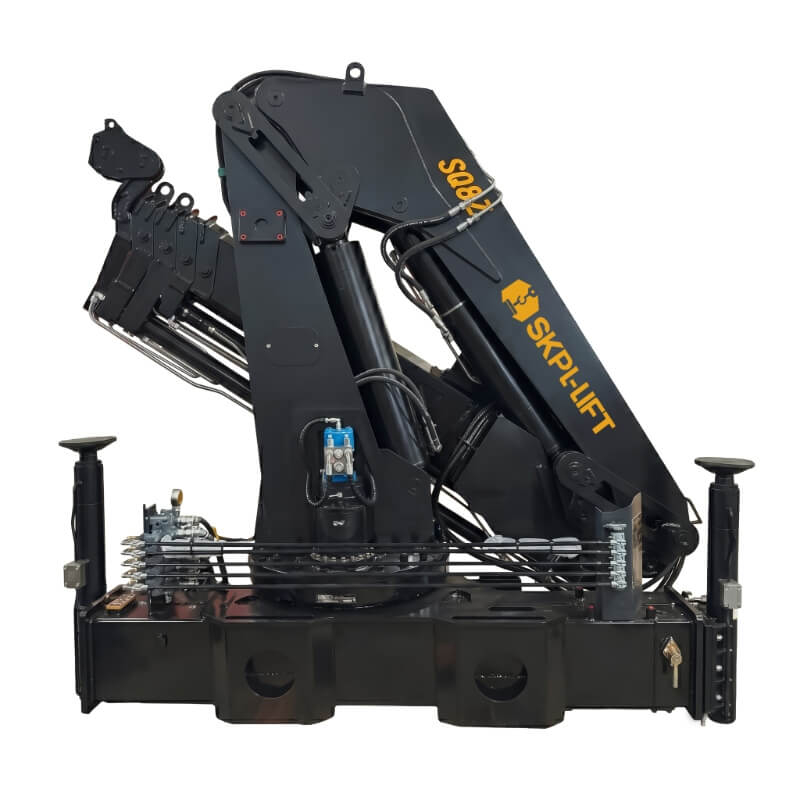

SQ8Z
SKPL-LIFT
This model focuses on fast deployment and safe operation, and supports multiple control options, including remote control, to achieve precise load positioning and efficient loading/unloading.
Its robust structure and durable key components ensure stable and reliable performance even under heavy-duty and long-term working conditions.
Product Advantage

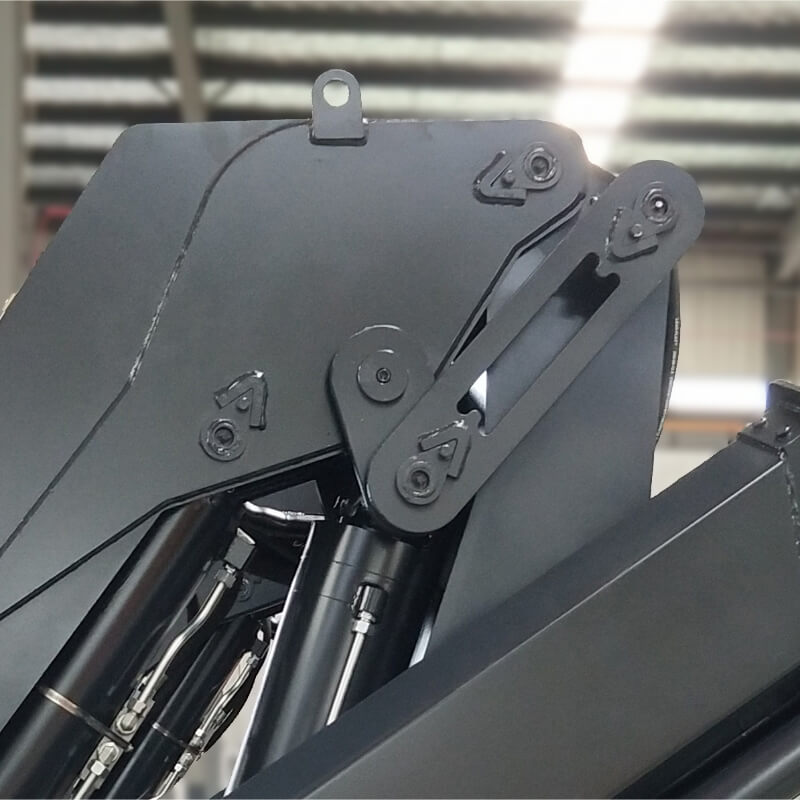

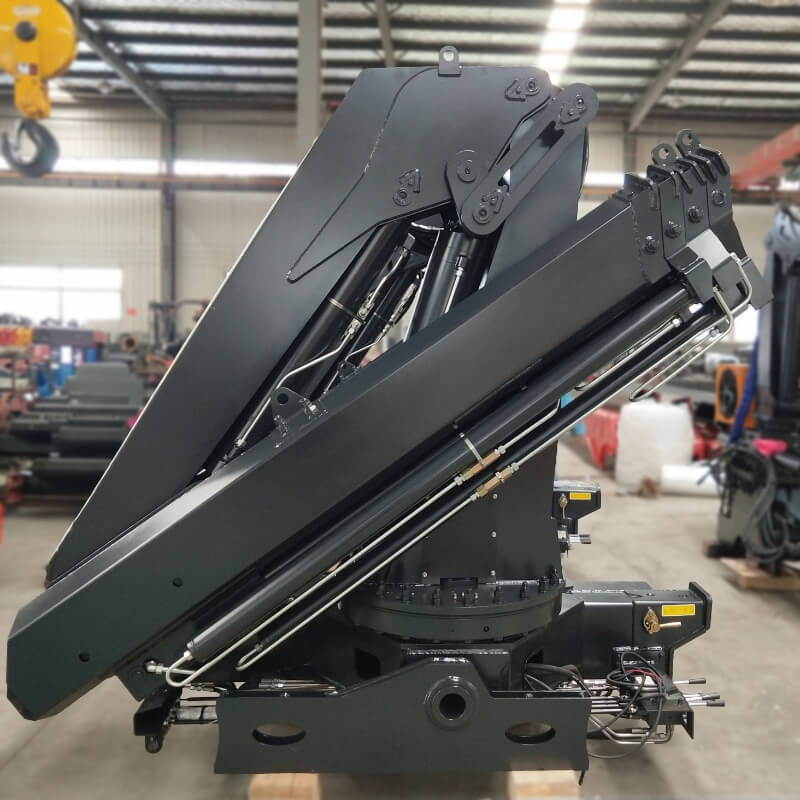

The innovative multi-axis folding boom design allows flexible extension in confined spaces, making it ideal for narrow construction sites, warehouses, and municipal operations. When folded, the crane remains compact, ensuring easy transportation and smooth driving on urban roads.

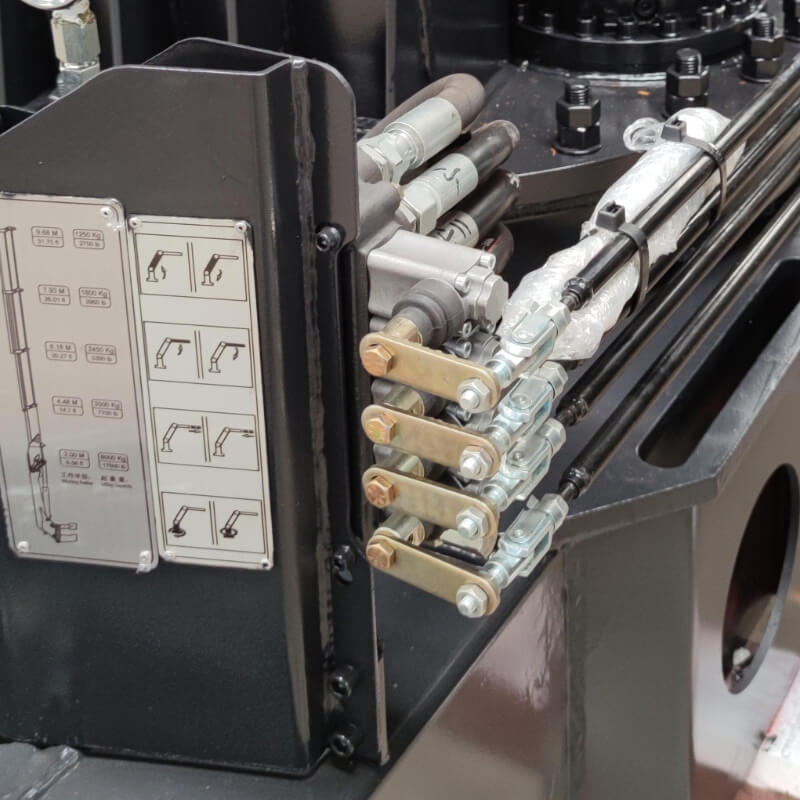

A modular control interface supports manual control, wired control, and wireless remote control, allowing operators to switch freely according to on-site requirements, improving lifting accuracy and operational efficiency.
The built-in intelligent load management system automatically adjusts boom force and operating speed based on different working conditions, ensuring smooth and safe lifting across construction, industrial, and logistics applications.
The factory offers a wide range of customizable attachments, including grabs, man baskets, special outriggers, and torque limiters, to meet diverse needs such as building construction, steel structure transport, and equipment handling.
An innovative quick-installation structure enables fast mounting onto truck chassis within a short time, without complex modifications or additional tools, saving both transportation and on-site preparation time.

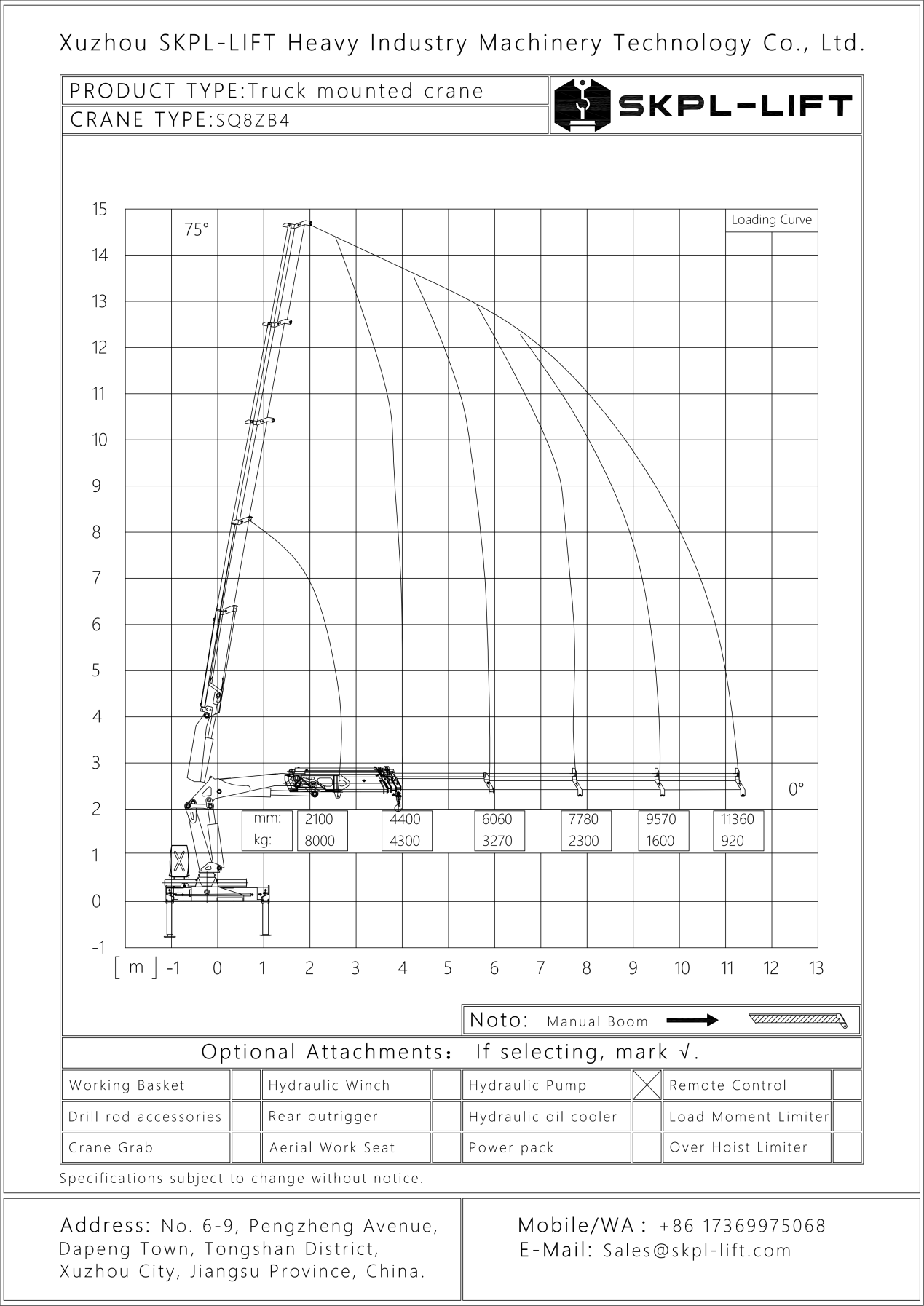

Technical Parameters
Technical Parameter | |
Installation space | 1200 mm |
Model name | SQ8ZB4 |
Max.Lifting Capacity | 8000 Kg |
Max.Lifting Moment | 16 Ton.m |
Hydraulic System Pressure | 28 Mpa |
Hydraulic System Flow | 40 L/min |
Slewing Angle | 360°FR/400° |
Reconmmend Power | 30 Kw |
Oil Tank Capacity | 100 L |
Crane Self Weight | 3050 Kg |
1. Construction Site Material Lifting
Suitable for efficient handling of concrete components, steel beams, precast slabs, and construction materials, especially effective on urban job sites or space-restricted construction areas.
2. Factory Equipment Handling & Installation
Enables the movement and installation of large equipment, production line components, and spare machinery within factories or workshops, without relying on large overhead cranes.
3. Logistics & Warehousing Operations
Used in logistics centers or distribution hubs for loading and unloading pallets, crates, and irregular cargo, supporting precise positioning and high-frequency short-distance handling.
4. Municipal & Public Facility Installation
Ideal for installing streetlights, signboards, electrical cabinets, and small public facilities, suitable for roadside and residential area operations while minimizing traffic disruption.
5. Agricultural & Remote Project Operations
Well suited for farms, rural construction sites, and remote projects, enabling quick loading and unloading of machinery and agricultural pr.
FAQ
1. Are you a factory or a trading company?
We are a factory with our own sales team. We provide full technical support and after-sales service. You are welcome to visit our factory.
2. Do you test the crane before delivery?
Yes. All cranes are tested before shipment, including 15% overload dynamic test and 25% overload static test.
3. What is the delivery time?
Normally 30 working days after deposit.
Standard models in stock can be delivered within 15 working days.
Customized models need more time.
4. Do you provide after-sales service?
Yes. We offer lifetime online technical support and 1-year warranty. Extended warranty is available.
5. How often should hydraulic oil be changed?
Heavy use (over 8 hours/day): every 6 months
Light use (less than 20 hours/week): every 12 months
Use hydraulic oil that meets the machine requirements.
