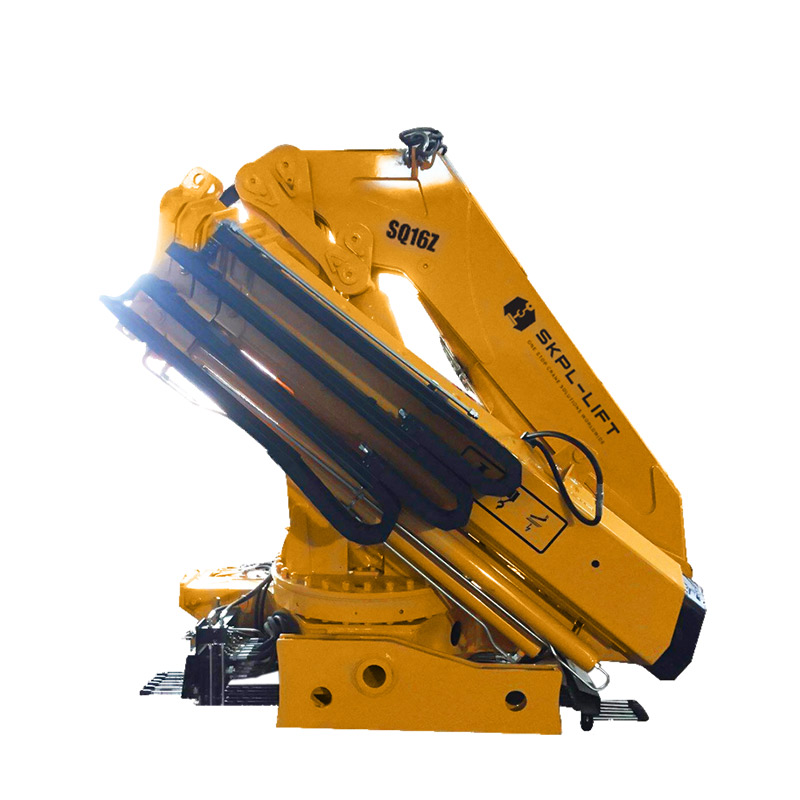

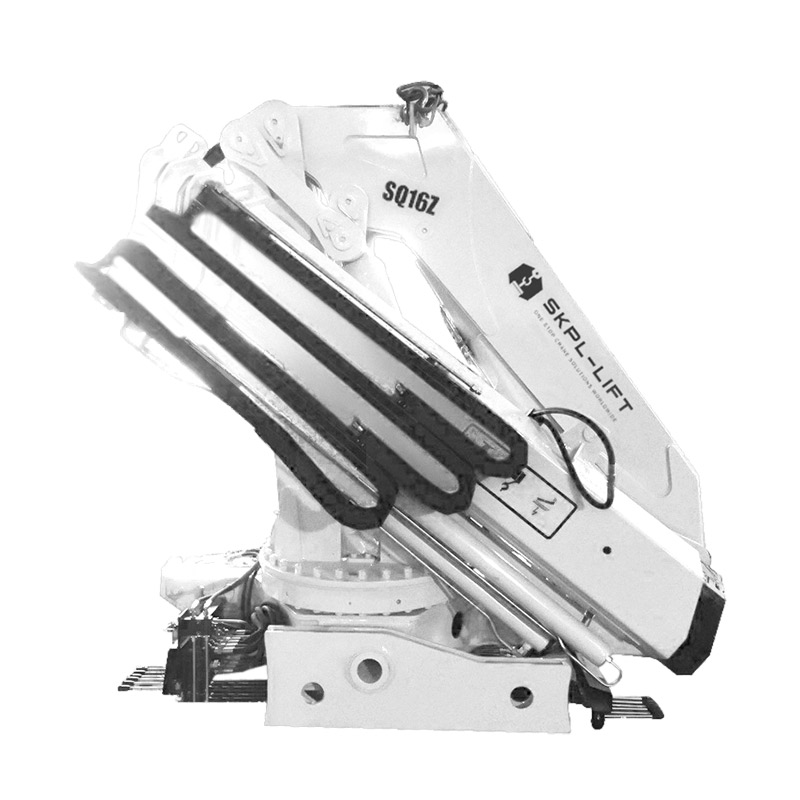

SQ16Z
SKPL-LIFT
It features a rated lifting capacity of 16,000 kg, a maximum working radius of approximately 14 m, and a maximum lifting height of up to 17 m, covering most high-load, long-reach, and high-elevation lifting scenarios.

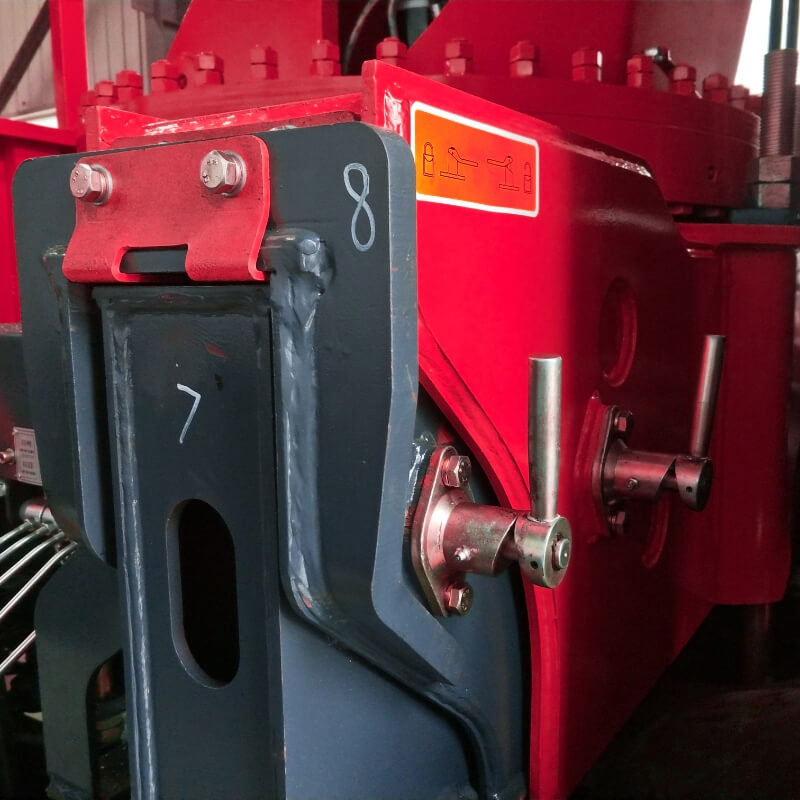

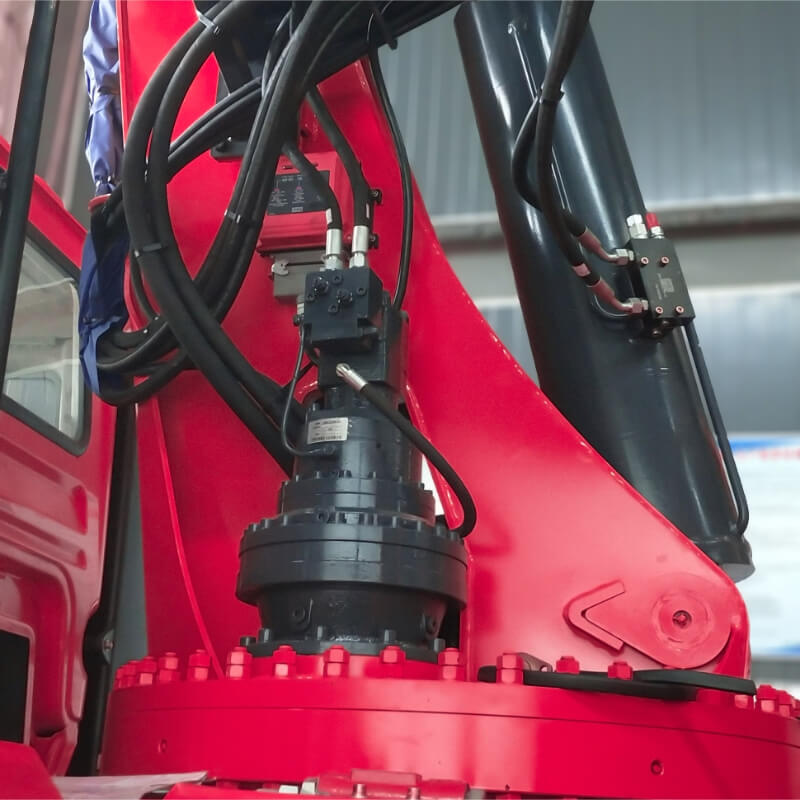

This model uses an upgraded full hydraulic drive system, supports 360° continuous rotation, and is equipped with reinforced hydraulic outriggers to ensure excellent stability when lifting or transporting ultra-heavy loads.
The folding boom can extend flexibly from 5.2 m to 14 m, allowing compact storage for urban transport or full extension for long-reach lifting operations.
Product Advantage
Advantages of the SKPL-LIFT 16 Ton Knuckle Boom Truck Crane
Exceptional Heavy-Duty Capability:
Designed for extreme heavy-load operations, this crane can easily lift steel structures, large industrial equipment, and precast construction materials up to 16 tons, maintaining stable and efficient performance even during long-term, high-intensity projects.
Extended Working Range:

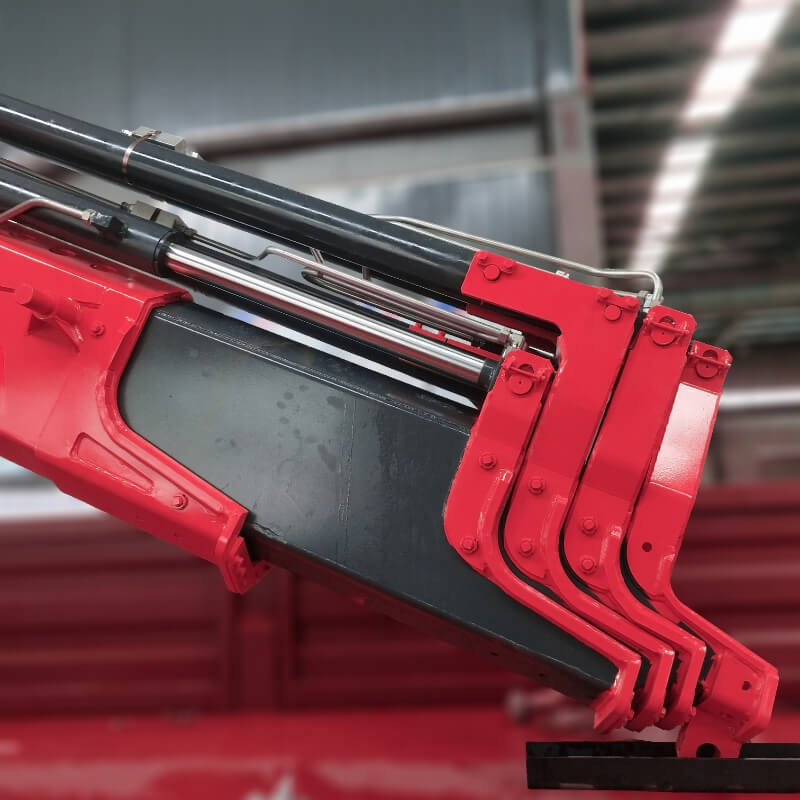

The multi-section telescopic boom supports long-reach lifting at greater radii, reducing the need to reposition the vehicle. Ideal for large factories, logistics hubs, and major urban construction sites requiring long-distance material handling.
Enhanced Stability:
With an optimized center of gravity and widened outrigger span (6.85 m sideways), the crane remains stable and safe even on uneven ground or slight slopes, effectively reducing the risk of tipping.
Flexible & Safe Operation:
Supports manual operation and wireless remote control, with an added elevated side operator station for left, right, and top-side operation. Operators can choose the optimal control position based on site conditions and vehicle placement, improving visibility and operational safety.

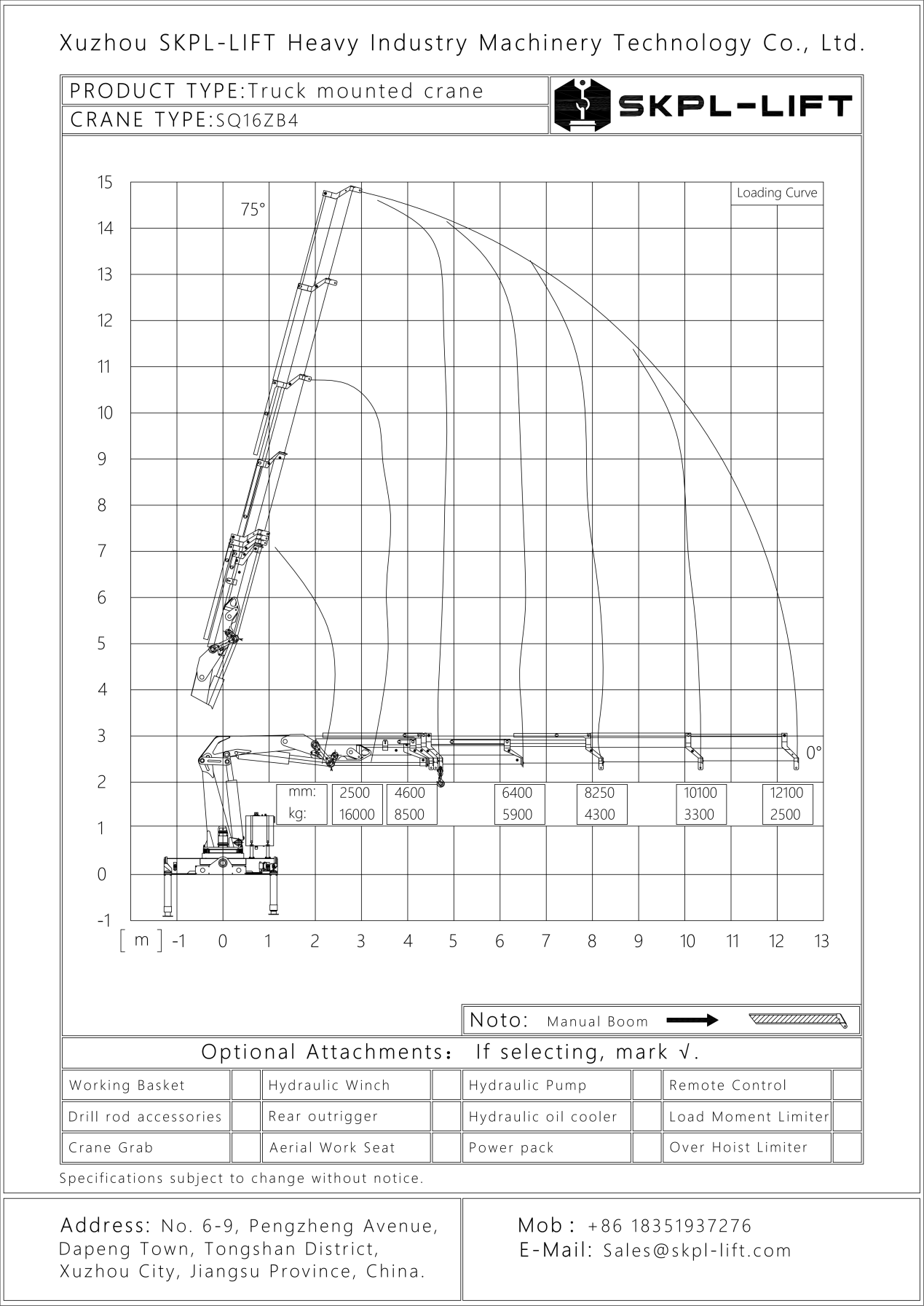

Technical Parameters
Technical Parameter | |
Installation space | 1500 mm |
Model name | SQ16ZB4 |
Max.Lifting Capacity | 16000 Kg |
Max.Lifting Moment | 40 Ton.m |
Hydraulic System Pressure | 30 Mpa |
Hydraulic System Flow | 63 L /min |
Slewing Angle | 360°FR |
Reconmmend Power | 35 Kw |
Oil Tank Capacity | 250 L |
Crane Self Weight | 5400 Kg |
Application Scenarios of SKPL-LIFT 16 Ton Knuckle Boom Truck Crane

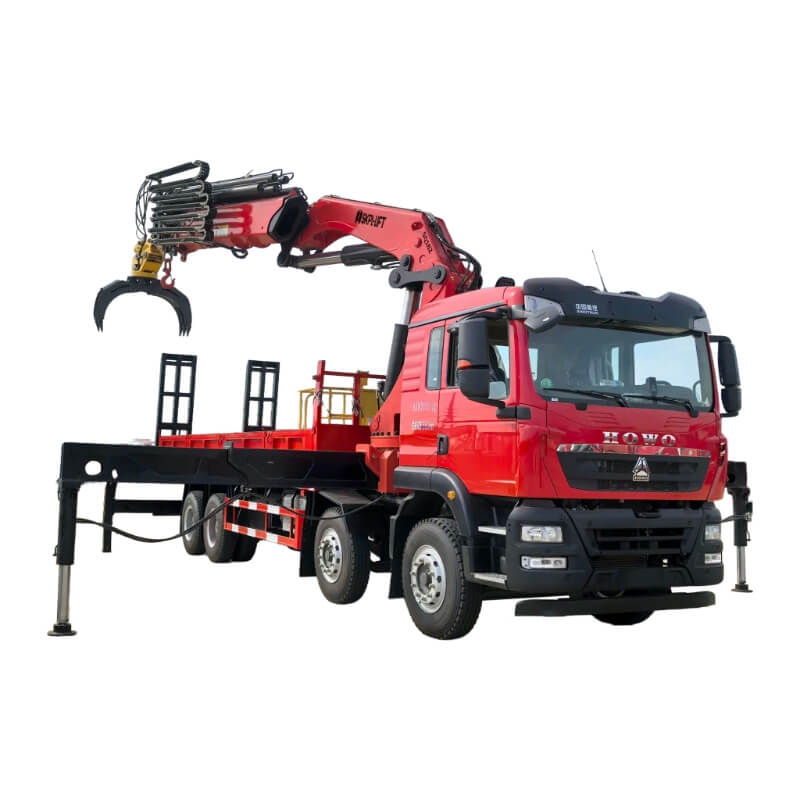

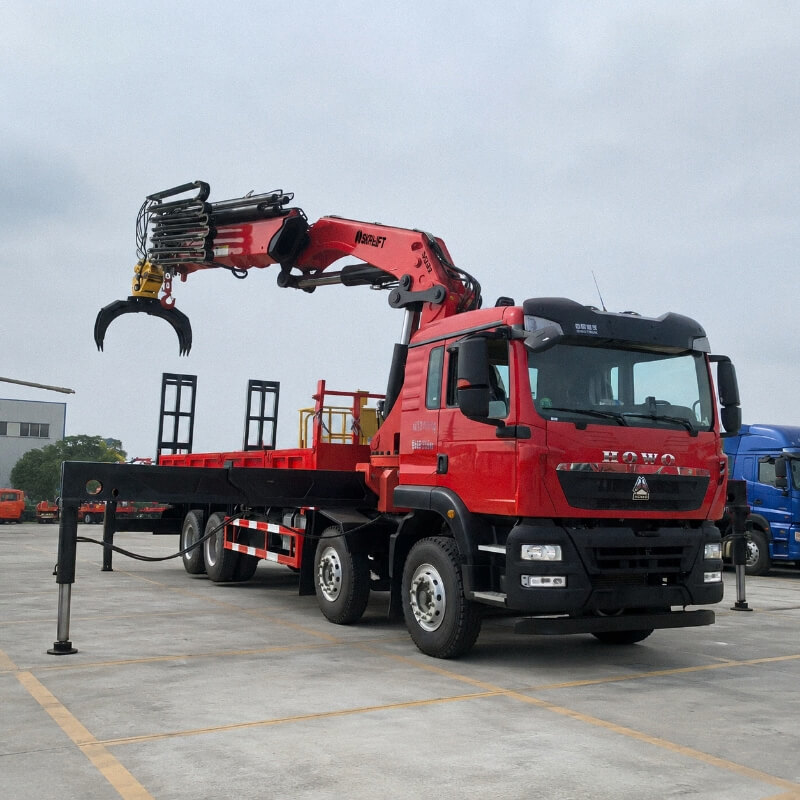

The 16-ton crane features a modular quick-install design, allowing rapid mounting on commercial truck chassis with a GVW of 18 tons or more, without complex modifications.
The folding boom and hydraulic outriggers can be deployed within minutes, and the compact folded size allows easy access on urban roads, factory sites, or tight construction areas.
Large Construction & Steel Structure Installation:
Ideal for lifting large steel beams, precast concrete components, and building façade materials. The elevated observation system helps operators monitor lifting points clearly, reducing the need to reposition the vehicle during construction.
Heavy Industrial Equipment Handling & Bulk Logistics:
In large factories or logistics hubs, it can lift heavy machinery, palletized goods, or irregular oversized components. The long-reach telescopic boom minimizes vehicle repositioning, improving overall loading and unloading efficiency.
Major Municipal Projects & Public Facility Installation:
Suitable for installing large streetlights, high-voltage distribution cabinets, and communication towers. The compact folding boom allows operation in narrow urban streets, old-town alleys, and space-restricted sites, ensuring safe and smooth work.
Large-Scale Agricultural & Remote Operations:
In large farms, rural projects, or remote construction sites, it can lift agricultural machinery, irrigation equipment, and large construction materials, enabling flexible mobile lifting without relying on fixed cranes.
FAQ
1. Not sure which model is right for me?
No problem! Our professional engineering team is always online to work with sales and provide a complete crane solution for your needs.
2. What are your payment terms?
We accept 30% deposit via T/T, MIC platform payment, or L/C at sight.
For long-term partners, we can offer more favorable delivery terms.
3. What is your delivery time?
Usually within 30 working days after deposit.
For standard models in stock, delivery can be within 15 working days.
Customized products require more time depending on your order.
4. How long do you provide after-sales support?
We provide lifetime online technical support, a 1-year warranty, and optional paid extended warranty.
5. How many years has your factory been in this industry?
We have 18 years of experience in design, manufacturing, and domestic & international trade.
Our products are exported to over 100 countries, earning consistent praise from customers.
